Arrowlock 55 Series Cattle Chute
The Safest, Most User-Friendly Squeeze Chute for Small Scale Cattle Ranchers
Product Code: 5500
Product Features | Product Specifications
2 models available:
Deluxe Vet| Standard
Introducing the Arrowlock 55 Series cattle chute – an innovative solution for your cattle handling operation. In an industry that often neglects the needs of small-scale operations, this cattle chute is an ideal solution that offers safe and secure livestock management.
With an all-new ratchet locking head gate, this squeeze chute is built for a stronger, more secure hold on your cattle. With many user-friendly features such as a head gate handle that can be operated from anywhere alongside the chute and a 3E rolling rear door with low sheeting and a top-mounted track to prevent build-up, handling cattle has never been easier. With a 5-year warranty and lifetime guarantee on locking mechanisms, you can be confident you’re making the right decision by working with a company that cares.
You may not need a heavy-duty cattle chute designed for large herds, but you do need safe cattle handling equipment to meet your demands. This is where the 55 Series excels – stepping in as a dependable solution that you can trust without hesitation.
Fill out this form to receive your Arrowlock 55 Series brochure:
[ To get a closer look, click on image below ]
-
![Arrowlock 55 squeeze chute with head holder]()
-
![Arrowlock manual squeeze chute with palpation cage]()
-
![Arrowlock 55 squeeze chute with emergency exit door open]()
-
![Arrowlock 55 Squeeze chute with rear gate open]()
-
![Arrowlock 55 squeeze chute side view]()
-
![Arrowlock 55 squeeze chute with vet door open]()
-
![Arrowlock 55 squeeze chute back side]()
-
![Calf restrainer bar top mount on a squeeze chute]()
Product Features
![Arrowlock 55 squeeze chute with emergency exit door open]()
Durable Steel Cattle Chute Floor
You need a floor that can withstand the wear and tear of your cattle. That’s where the Arrowlock 55 Series steel floor comes in. Featuring ½” treads for better traction as your cattle go through the chute, you’ll notice a difference almost immediately compared to the checker plate steel often seen in cattle chutes.
![Arrowlock 55 squeeze chute with head holder]()
Arrowlock Cattle Head Gate

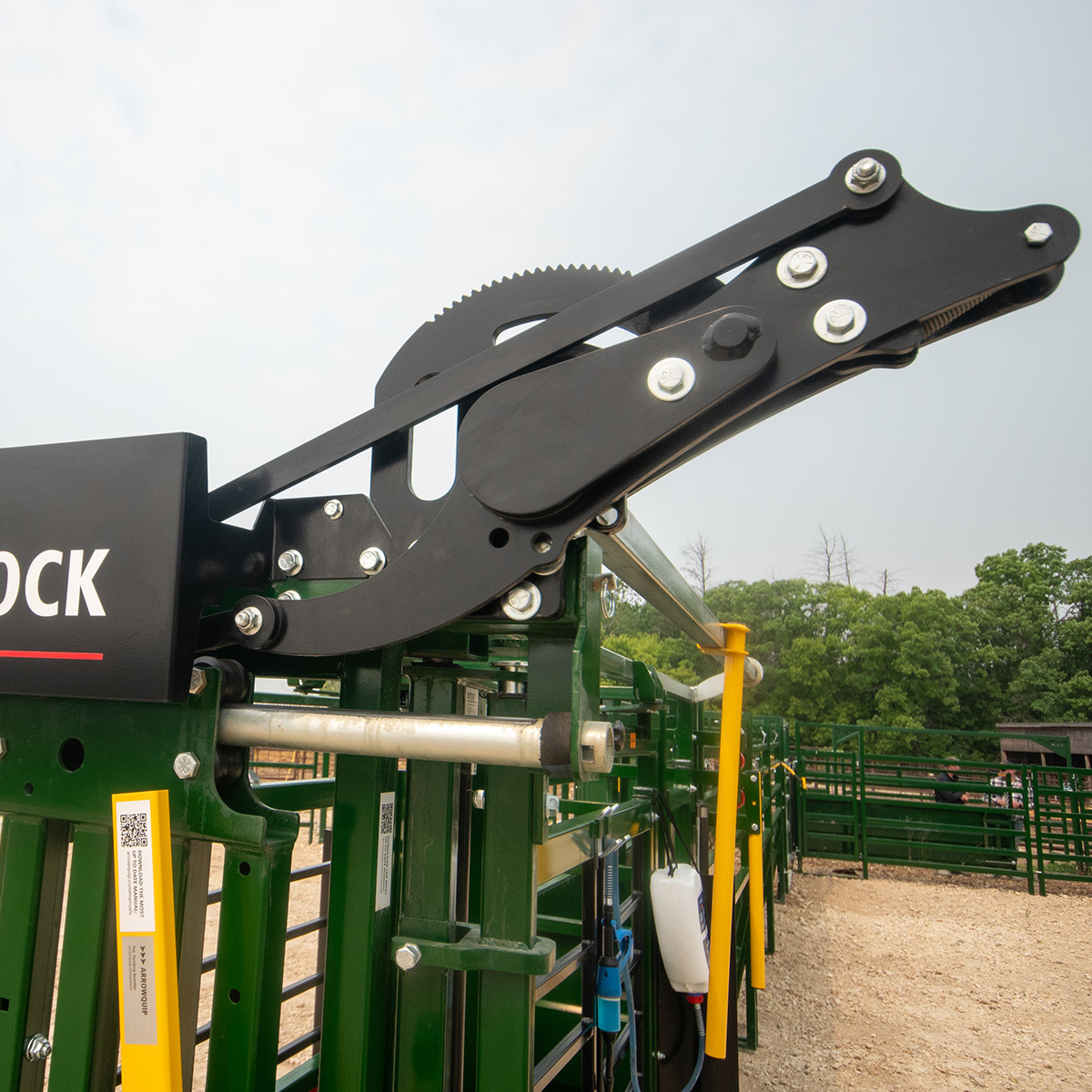

The 55 Series Cattle Chute features a never-before-seen ratchet locking style head gate for the industry’s strongest hold on your cattle.
Designed with 3E technology so your cattle willingly enter, you will have a seamless cattle handling experience every time.
![Arrowlock 55 Manual Squeeze chute with Palpation Cage]()
Top-Notch Quality at an Affordable Price
Whether you’re new to the industry or have a smaller herd, the 55 Series cattle chute is your solution. With all the features a cow-calf operation will need, you can be certain you’re investing in a safe and efficient solution to get the job done at an affordable price point.
![Arrowlock 55 Squeeze chute with rear gate open]()
Complete Width for Any Size
With this cattle squeeze chute, you don’t have to worry about constant adjustments. Opening parallel to a full 31.5” from top to bottom, and narrowing down to 7.75” fully closed, you can have a secure hold on your biggest bulls down to your smallest calves.
See what Others Have to Say
Want more information?
Product Specifications
- 5-Year Warranty
- Ratchet locking mechanism for a stronger head gate hold
- Barred head gate design uses light to draw cattle in
- Head Gate handle can be operated from anywhere alongside the chute
- Curtain style head gate opens parallel to a full 29.5”
- Cattle chute ranges from 31.5” fully open to 7.75” fully closed

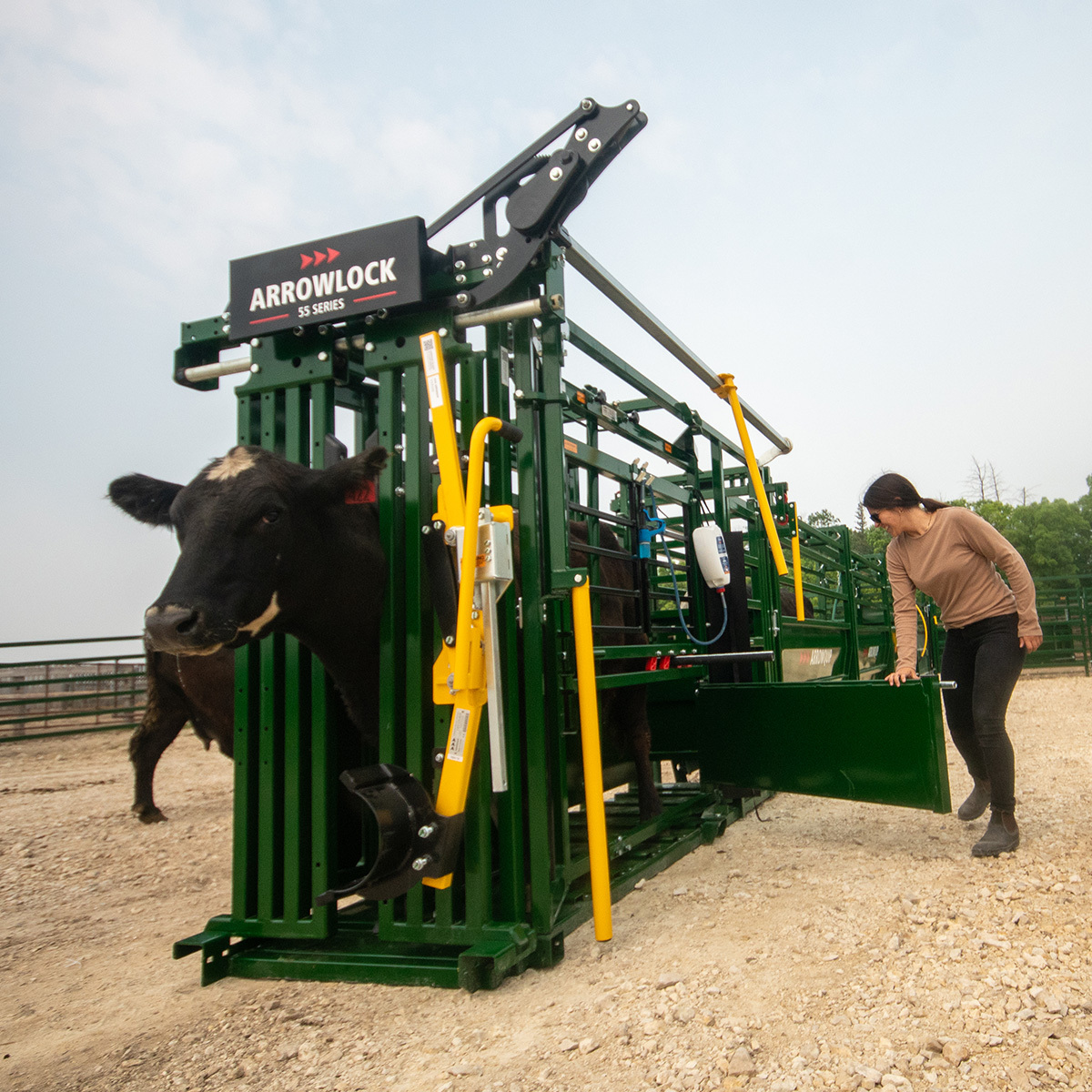

- One-side swing-out emergency exit
- Poly-composite rump fingers and rump bar on top access door to prevent cattle from backing up
- 3E Rolling Door with a top mounted track so you can control the flow of cattle
- Top mounting track on the Rolling Door eliminates build-up for seamless use
- Vet door opens in both directions for a full 180° of maneuverability (Deluxe Vet only)

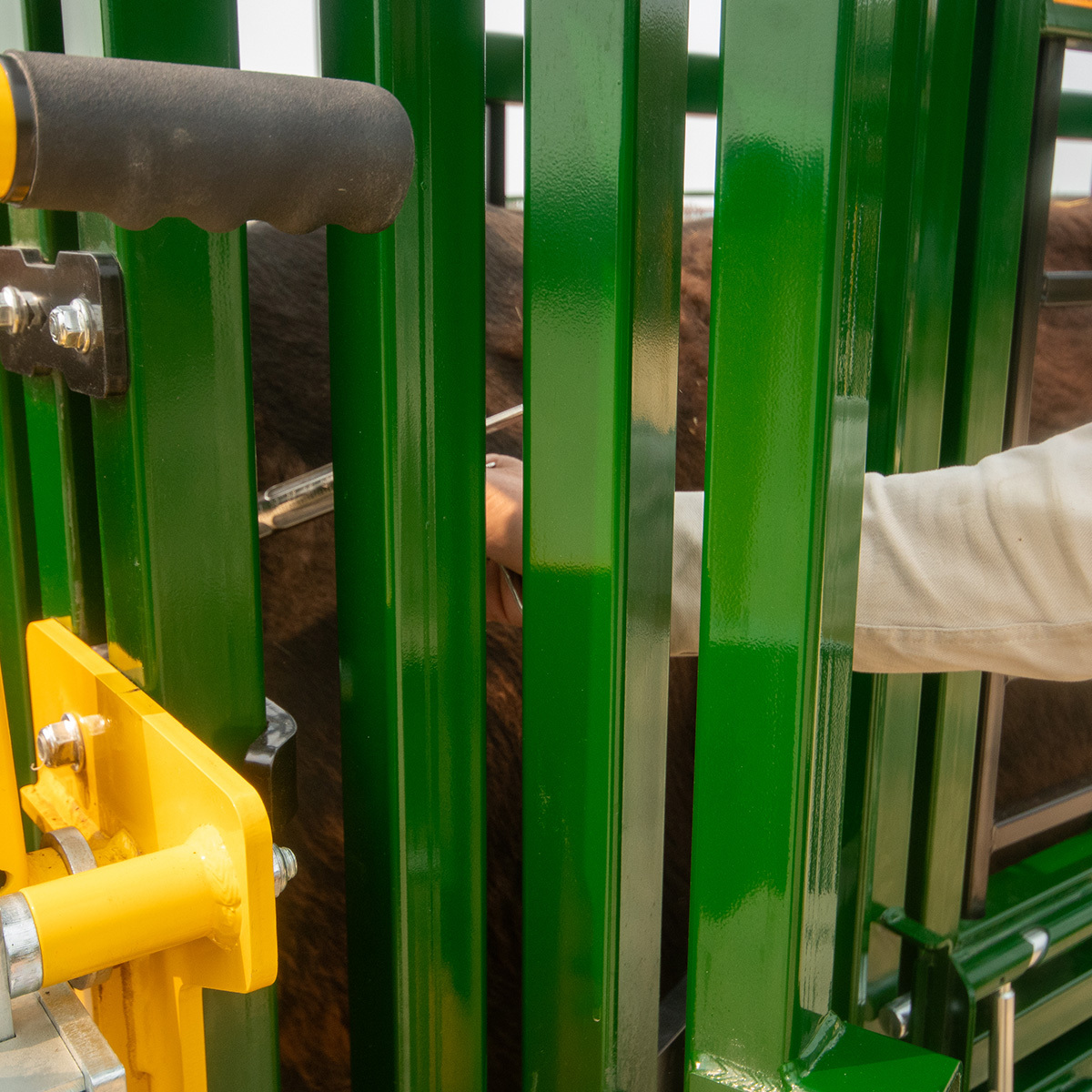

- 12.75” top to bottom needle door access
- Rectangular tubing to limit cattle bruising
- Ribbed steel floor to provide excellent traction for your cattle
Available Models
Model: Deluxe Vet
Weight: 1691 lbs.
Dimensions: 63” Wide x 97” High x 130” Long
If you’re looking for a fully loaded cattle chute with a palpation cage on a budget, then look no further than the Arrowlock 55 Series squeeze chute. Complete with a full-length vet cage for additional access, the Deluxe Vet model allows you to complete the tasks at hand with ease.
Model: Standard
Weight: 1445 lbs.
Dimensions: 63” Wide x 97” High x 102” Long
The Arrowlock 55 Series cattle chute gives you everything you need at an attainable price. Featuring everything a small rancher needs, you can process your cattle in a low-stress and efficient manner.
Available Add-Ons / Options
![Head holder hero]()
Fourth-Generation Cattle Head Holder
The fourth generation of the Cattle Head Holder is stronger and sturdier than ever before. The head holder easily attaches to your head gate and clamps around the cattle’s neck so you can safely treat your cattle up-close. Featuring a patented single lever push-pull operation, this head restraint simplifies any necessary procedures.
![Sternum bar option]()
Sternum Bar
The Sternum Bar supports the sternum and eliminates space at the bottom of the chute to prevent cattle from laying down. Arrowquip’s sternum bar comes sheeted to reduce hoof traps and can be installed or removed easily with two bolts.
![Trimming bar option]()
Calf Restrainer Bar
The Calf Restrainer Bar keeps your cattle safely contained when both side doors are opened for hoof trimming. This simple and effective option can be adjusted to accommodate cattle of different sizes, and is installed with just four bolts.
![Balk Gate Option]()
Cattle Balk Gate
Even if you miss catching your livestock in the head gate, you can still be sure they won’t escape with the all-new Arrowquip Balk Gate. This will help create a controlled environment so you can treat your cattle with ease.
![Lug Post]()
Lug Post Kit
The Lug Post Kit allows you to connect corral panels to your Arrowlock or Powerlock cattle chute. Simply bolt the lug posts onto the head gate of your chute, and you will be able to connect panels or a Draft Module to create a closed handling system.
You might also be interested in:
Contact Arrowquip
Thank you for your interest in Arrowquip! Fill out the short form below and someone from our team will contact you within one business day. In the meantime, you can also check out our FAQ section.
Add My Review
Reviews
I’m a small operation with just help from my wife and young daughter. I have been loading my cattle up and taking them to my neighbor's ranch house to use their Arrowquip 74 series for a couple of years now. I am at a point now where I have enough head. I needed to get my own setup to work my cattle. It was a no-brainer. I wanted an Arrowquip of my own, so I spent the extra money and got a 55 series. It is so safe for my cattle and my family
Good looking equipment
Chutes look great
