Arrowlock 75 Series Portable Squeeze Chute & Alley
On-The-Go Portable Cattle Handling Made Easy
Product Code: 758
Product Features | Product Specifications
The Arrowlock 75 Portable Squeeze Chute and Alley is your new go-to portable working system designed to get the job done right no matter where you are. Combining the Arrowlock 75 Series Cattle Chute with our 8’ Easy Flow Adjustable Cattle Alley, you are guaranteed a safe and seamless handling experience.
The Arrowlock Head Gate is made with a ratchet locking mechanism that will hold your cattle and eliminate the risk of your cattle backing out. Built to be a reliable option, this portable unit is made with North American heavy-duty steel for a durable frame and true rubber floors with a lifetime guarantee. Manual jacks and an adjustable hitch with an added gusset for even more strength allow you to set up this unit in under 5 minutes, saving you time to make processing even faster.
Never compromise again when you can have it all with the Arrowlock 75 Series Portable Squeeze Chute and Alley.
Fill out this form to receive your Arrowlock 75 Portable Chute & Alley brochure:
[ To get a closer look, click on image below ]
-
![Arrowlock 75 chute and alley]()
-
![Arrowlock 75 chute and alley ready for transportation]()
-
![Arrowlock 75 chute and alley in stationary position]()
-
![Arrowlock 75 chute and alley with head holder]()
-
![Arrowlock 75 chute and alley ready to be transported]()
-
![Side view of the Arrowlock 75 chute and alley ready for transportation]()
-
![Side view of the Arrowlock 75 chute and alley in stationary position]()
-
![Back side or the Arrowlock 75 chute and alley]()
-
![Rear view of the Arrowlock 75 chute and alley]()
-
![Rear view of the Arrowlock 75 chute and alley with rolling door open]()
-
![Easy Flow Alley on the Arrowlock 75 chute and alley]()
Product Features
![Arrowlock 75 squeeze chute with palpation cage]()
Arrowlock 75 Series Squeeze Chute
With the Arrowlock 75 Series cattle chute, you’ll be able to use it, even if you’re by yourself. With multiple access points to easily reach cattle, and a ratchet locking mechanism on the Head Gate for a guaranteed hold every time, you can say goodbye to headaches and hello to hassle free handling
![Easy Flow Cattle Alley | Arrowquip Cattle Equipment]()
Easy Flow Cattle Alley
Get your cattle flowing in the right direction with the Easy Flow Adjustable Cattle Alley. The cradle shape encourages cattle to continuously move forward.
Easily adjust the width of the cattle alley with spring-loaded locking technology. Simply pull the adjustment cables for a seamless adjustment that will fit any size cattle.
![Arrowlock 75 chute and alley ready to be transported]()
Effortless Cattle Handling on the Move
Need to treat cattle that are away from home? That is no longer a problem with the Arrowlock 75 Series Squeeze Chute and Alley. Made with durable materials, this portable unit will handle even the bumpiest roads.
Featuring an adjustable hitch and easily installed wheels, you can move from one location to the next with ease.
![Arrowlock 75 squeeze chute with palpation cage]()
Access Your Cattle at Any Point
The Arrowlock 75 Series Cattle Chute and Alley gives you access from front to back. With two access panels on either side of the chute, drop down needle access, and a full emergency access door, you can treat and handle cattle safely.
With a palpation cage, you can have even more access to the back of the animal without compromising your safety.
See what Others Have to Say
Want more information?
Product Specifications
- 3E Head and Tailgate design uses light to draw cattle into the chute
- All-new Arrowlock Head Gate for a more secure hold
- Arrowlock Head Gate handle can be used at any point along the side of the chute
- Curtain-style Head Gate opens parallel to a full 29.5”
- Squeeze chute ranges from 31.5” fully open to 7.75” fully closed
- Singular row of Rump Fingers engineered to endure high pressure
- Ambidextrous 3E Rolling Door that can be used from either side of the chute
- Rolling Door track is top-mounted to eliminate build-up
- Vet Door opens a full 180° for complete maneuverability
- Swing-out access doors allow for complete access to the animal
- Four side access panels can be removed or rearranged to suit your needs
- 12.75” top to bottom needle access
- Rectangular tubing to limit bruising on cattle
- True virgin rubber floor to dampen sound and provide traction
- Cradle-shape Easy Flow Alley ranges from 31.5” to 21”
- Removable panels on the Easy Flow Alley allow you to control what cattle see
- Both side panels drop down on the alley so you can access the animal in case of emergency
Available Add-Ons / Options
![Head holder hero]()
Fourth-Generation Cattle Head Holder
The fourth generation of the Cattle Head Holder is stronger and sturdier than ever before. The head holder easily attaches to your head gate and clamps around the cattle’s neck so you can safely treat your cattle up-close. Featuring a patented single lever push-pull operation, this head restraint simplifies any necessary procedures.
![Sternum bar option]()

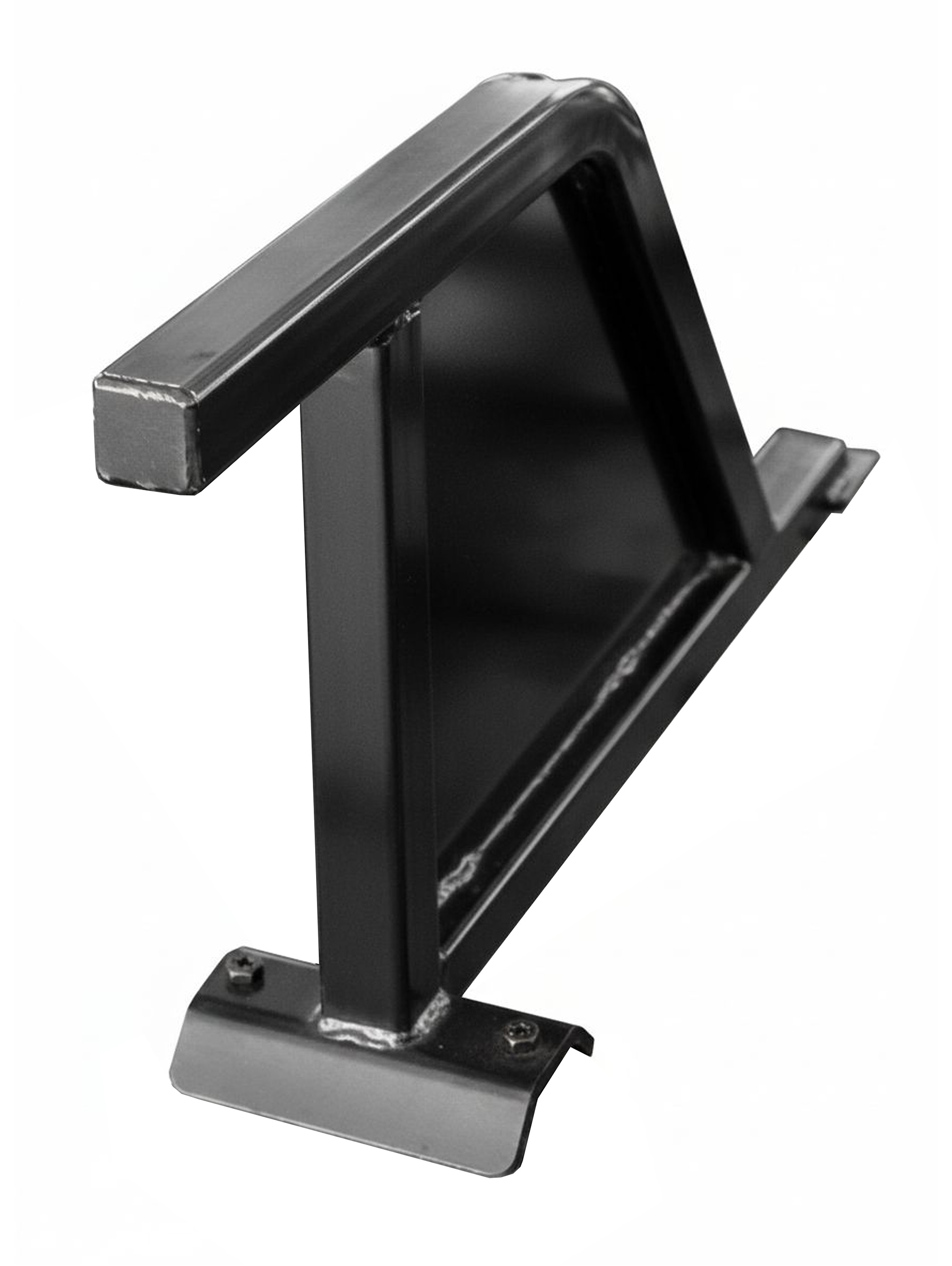

Sternum Bar
The Sternum Bar supports the sternum and eliminates space at the bottom of the chute to prevent cattle from laying down. Arrowquip’s sternum bar comes sheeted to reduce hoof traps and can be installed or removed easily with two bolts.
![Balk Gate Option]()
Cattle Balk Gate
Even if you miss catching your livestock in the head gate, you can still be sure they won’t escape with the all-new Arrowquip Balk Gate. This will help create a controlled environment so you can treat your cattle with ease.
Lug Post Kit
The Lug Post Kit allows you to connect corral panels to your Arrowlock or Powerlock cattle chute. Simply bolt the lug posts onto the head gate of your chute, and you will be able to connect panels or a Draft Module to create a closed handling system.
![Trimming bar option]()
Calf Restrainer Bar
The Calf Restrainer Bar keeps your cattle safely contained when both side doors are opened for hoof trimming. This simple and effective option can be adjusted to accommodate cattle of different sizes, and is installed with just four bolts.
![Heavy-duty aluminum cattle weigh platform]()
Weigh Platform Kit
The Easy Flow Alley Weigh Platform Kit can be added to an 8' Easy Flow Alley section to provide fast, accurate weigh-ins with the addition of load bars. Alley side panels can be lifted and held in place with the slam latches, allowing the operator to slide the platform underneath for easy installation. Features heavy-duty, 1/4" aluminum plate that provides excellent traction for hooves.
![Cattle Scale Mount Plates for Tru-Test and Gallagher load bars]()
Scale Mount Plates
Scale Mount Plates can pair with the Easy Flow Alley Weigh Platform Kit. Designed to support 23" alleyway load bars. Options for Gallagher or Tru-Test load bars are available.
