Powerlock 108 Series Hydraulic Cattle Chute
The Hydraulic Chute you can Depend on for a Safe, Seamless Cattle Handling Experience.
Product Code: 1080
Product Features | Product Specifications
Weight: 2768 lbs.
Dimensions: 66" - 133" w x 102" h x 145" l

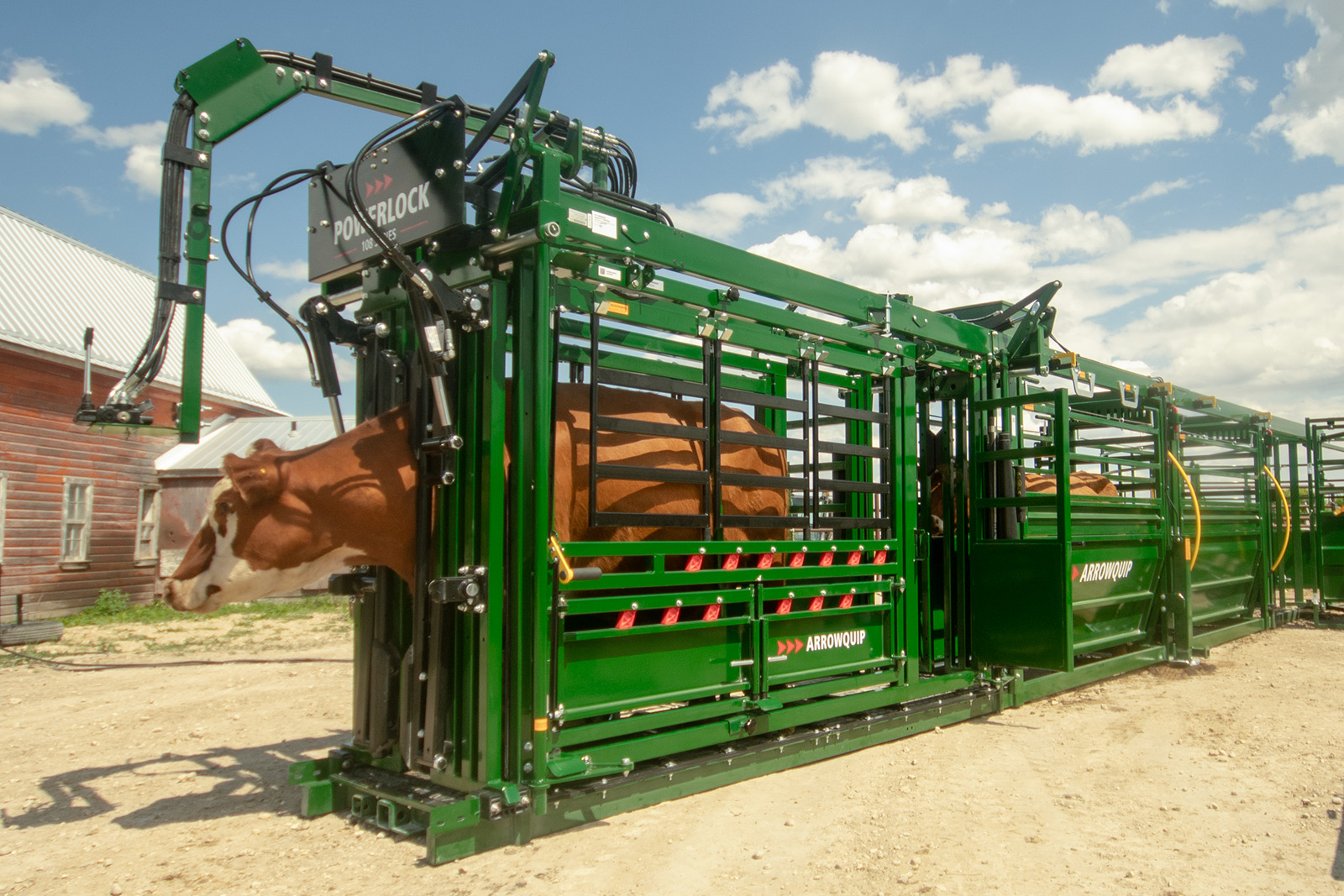

The Powerlock 108 Series is an all-new hydraulic cattle chute that surpasses the competition. Designed for exceptional performance and durability, you can be certain this chute will save you time and last on your operation for years to come.

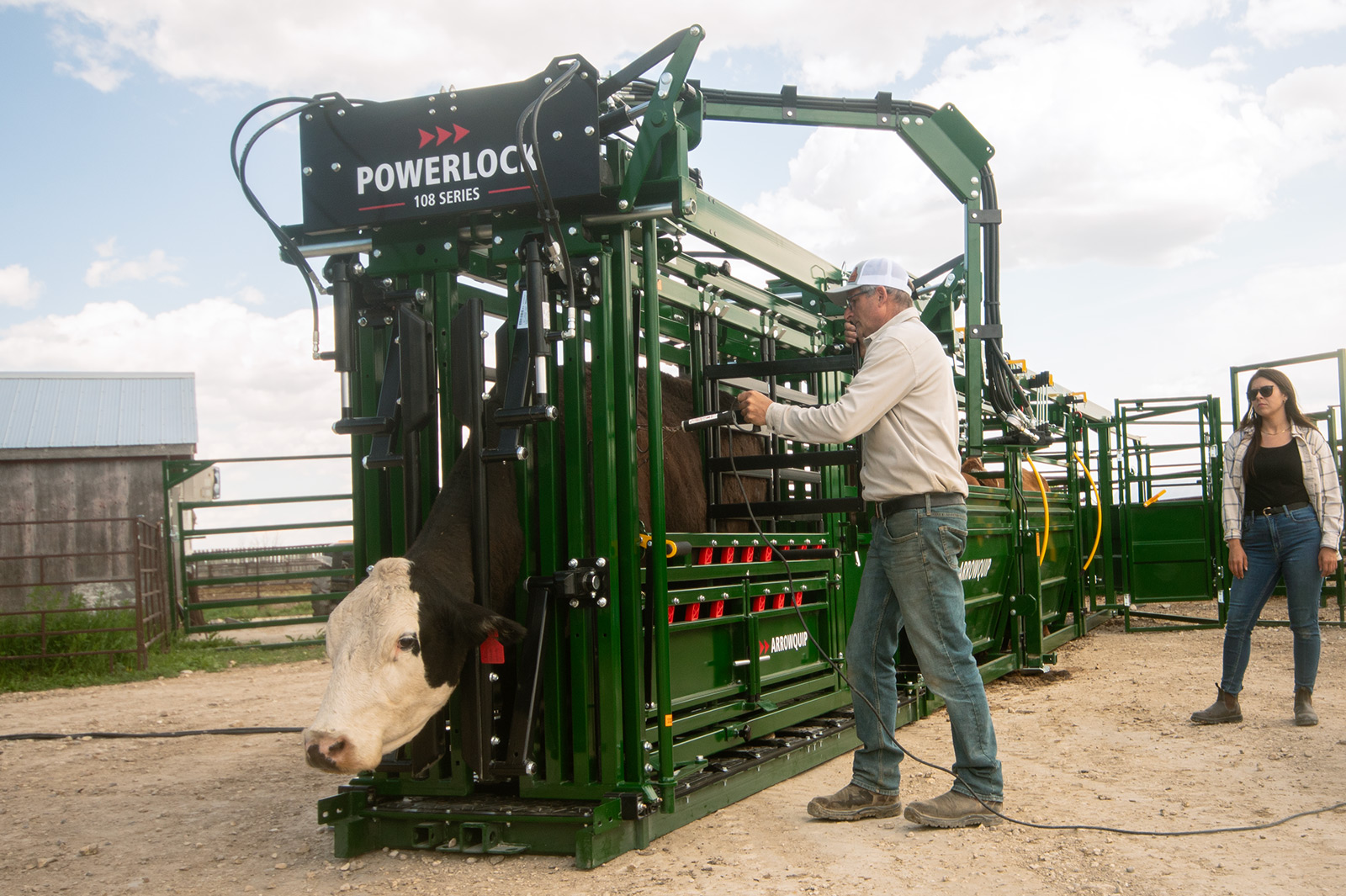

Offering a cattle handling experience like never before, the Powerlock 108 Series cattle chute features six side access panels and full emergency exit doors on both sides, so you can easily treat, brand, or perform other necessary tasks. The 108 Series chute also features an infinite rubber floor to make exiting the chute easier for your cattle. With a swing-out arm loaded with four hydraulic controls, you have maximum maneuverability to power your chute from any point.
You need a safe, reliable hydraulic cattle chute. You need the Powerlock 108.
Fill out this form to receive your Powerlock 108 Hydraulic chute brochure:
[ To get a closer look, click on image below ]
-
![Powerlock 108 Hydrualic squeeze chute with palpation cage]()
-
![Powerlock 108 squeeze chute with head gate open]()
-
![Powerlock 108 hydraulic chute with closed head gate]()
-
![Powerlock 108 chute in the squeezed position]()
-
![Powerlock 108 squeeze chute open 1]()
-
![Powerlock 108 cattle chute with side emergency exit door open]()
-
![Powerlock 108 with side door and palpation cage door open 1]()
-
![Bottom access door open on the powerlock 108 cattle chute]()
-

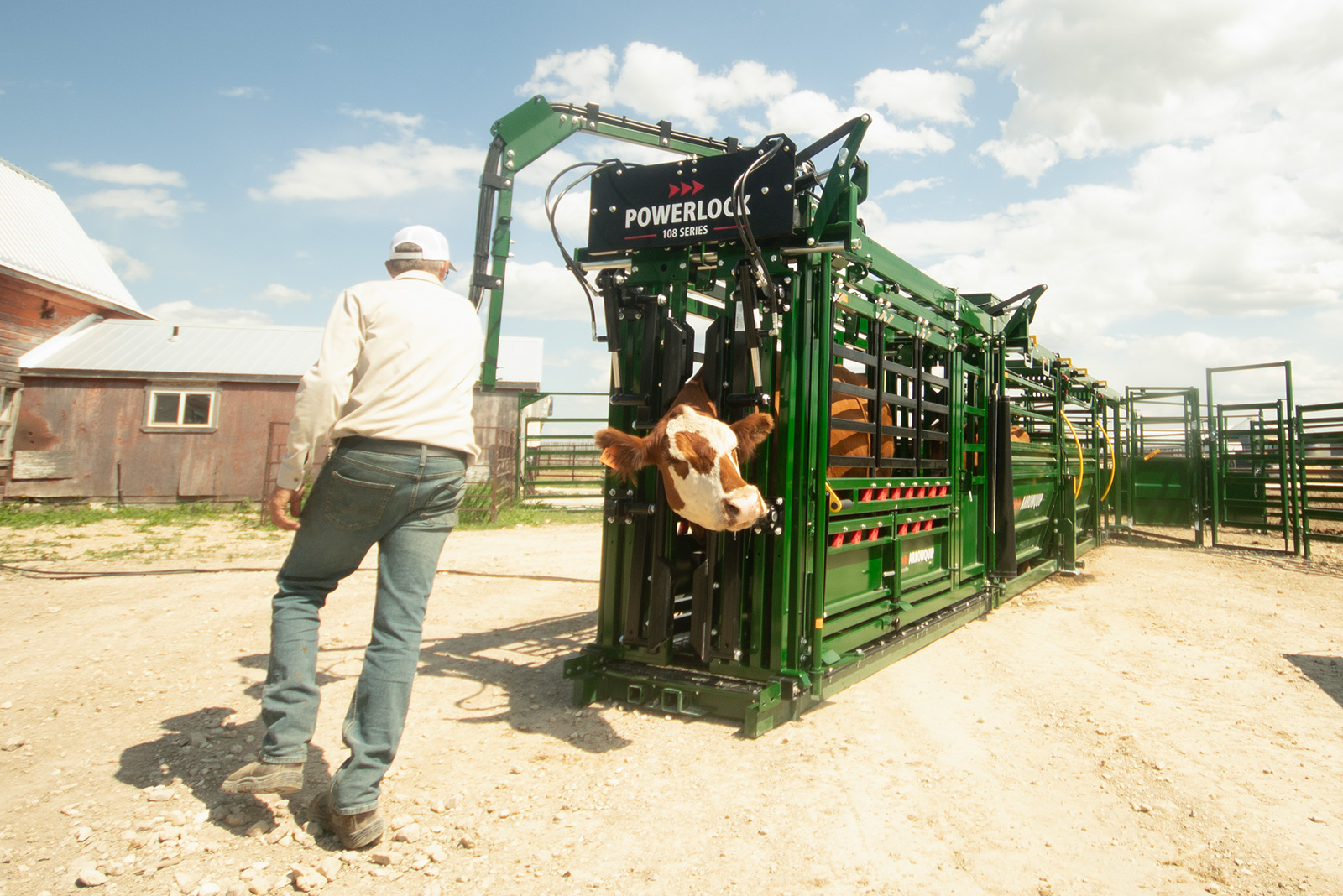

![Close up of hydraulic pivot arm on powerlock 108]()
-
![Arrowlock 108 cattle chute rear image]()
-

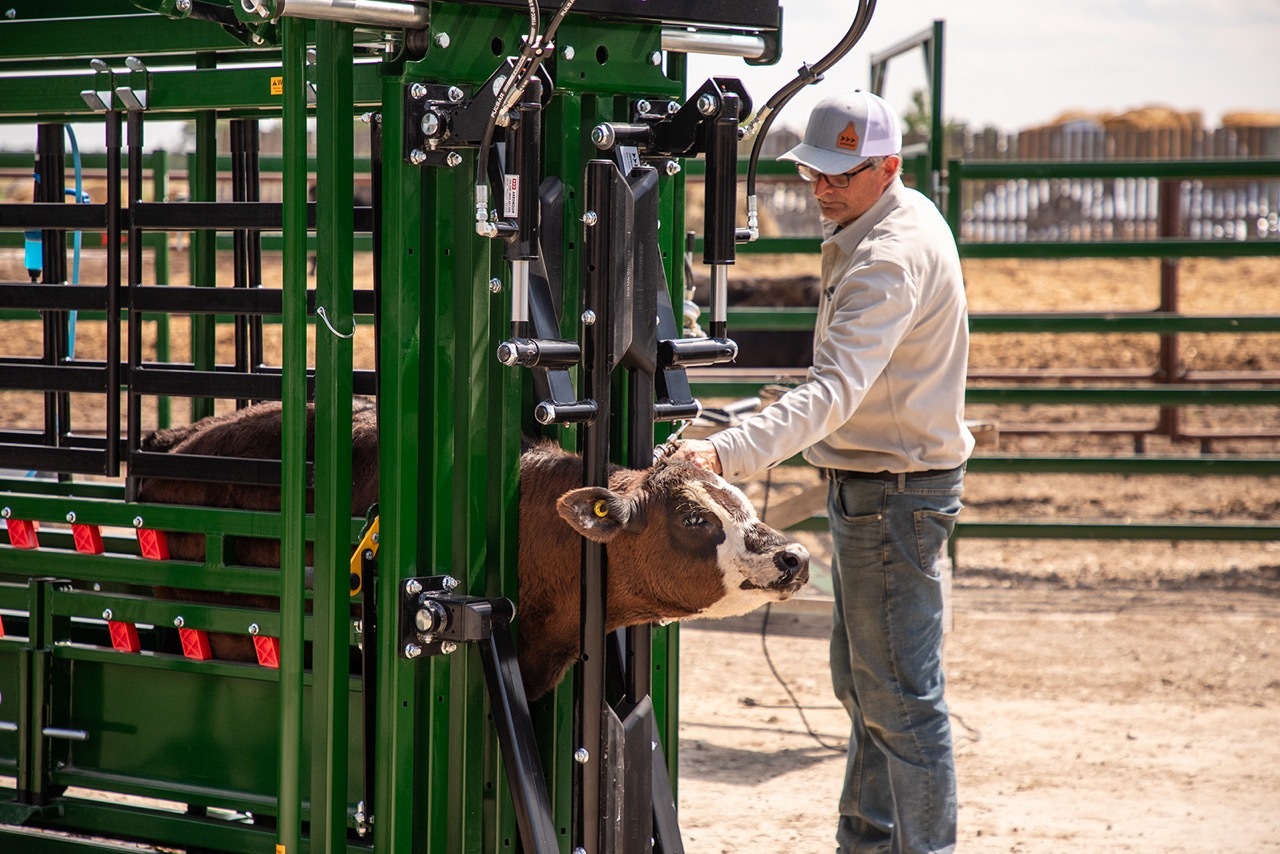

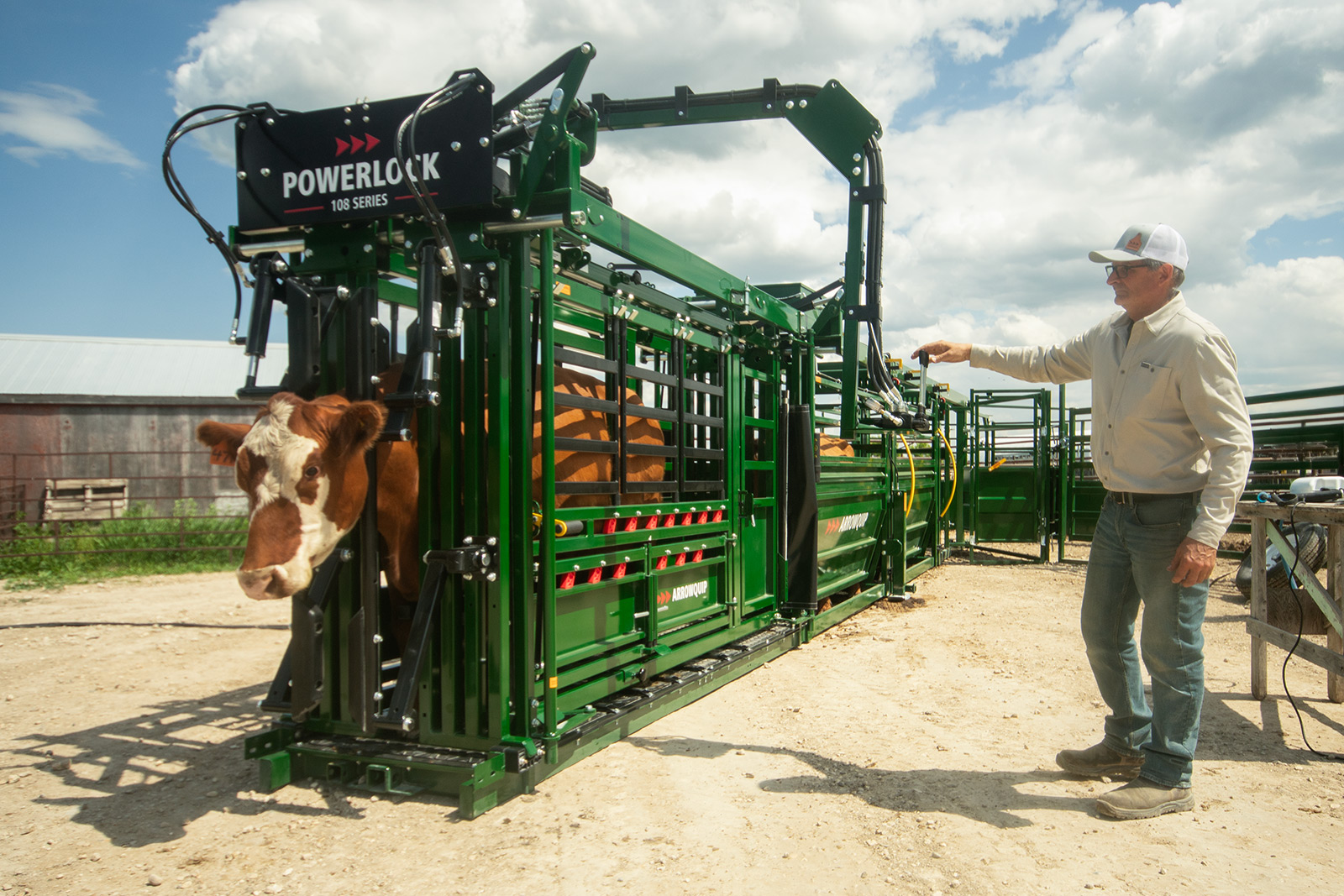

![Powerlock 108 hydraulic squeeze chute with neck extenders out]()
Product Features
![Powerlock 108 chute in the squeezed position]()
3E Cattle Equipment Technology
Arrowquip’s exclusive 3E design can be found throughout your equipment to make handling cattle easier.

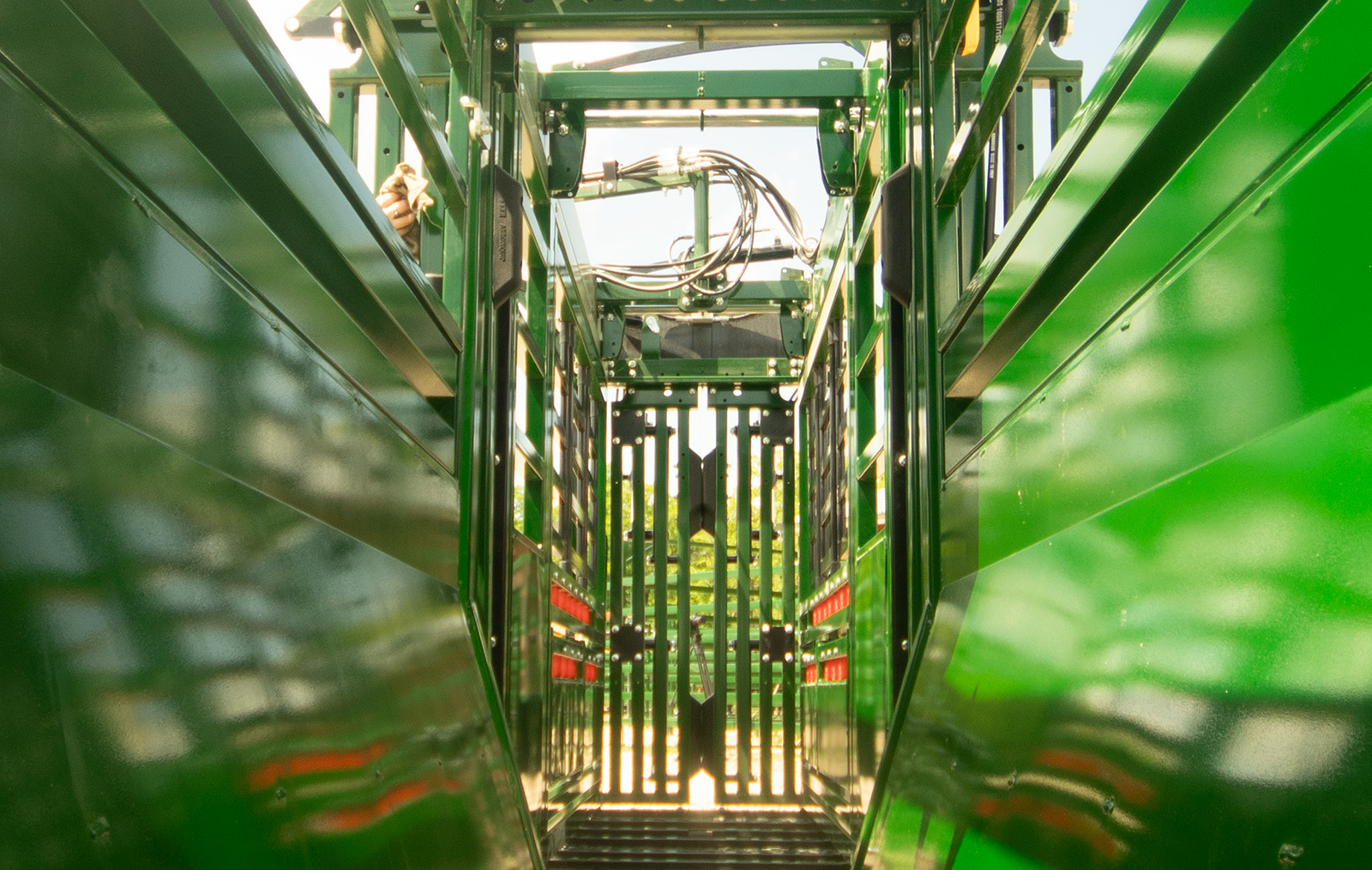

With 3E technology in both the Head Gate and Rolling Alley Gate, your cattle will flow right through the chute. The barred design lets cattle see light, drawing them into the chute with minimal handler intervention so you can speed up your process and save time for other important tasks.
![Powerlock 108 cattle chute with side emergency exit door open]()
Top-tier Cattle Access
With 3 access panels on each side, full emergency exit doors, and a palpation cage, you can have unbeatable access for your cattle at any point through the chute. Featuring two bottom swing-out gates, you can also easily access cattle’s hooves for trimming or treating purposes. A cattle chute designed for any size cattle with unlimited access will guarantee a safer, more efficient operation.
![Close up of hydraulic pivot arm on powerlock 108]()
Increased Power, Simplified Cattle Care
Experience control like never before with the Arrowlock 108 Series hydraulic cattle chute. Improved hydraulic connections and cylinders allow for fast response times so you can catch cattle no matter their temperament.

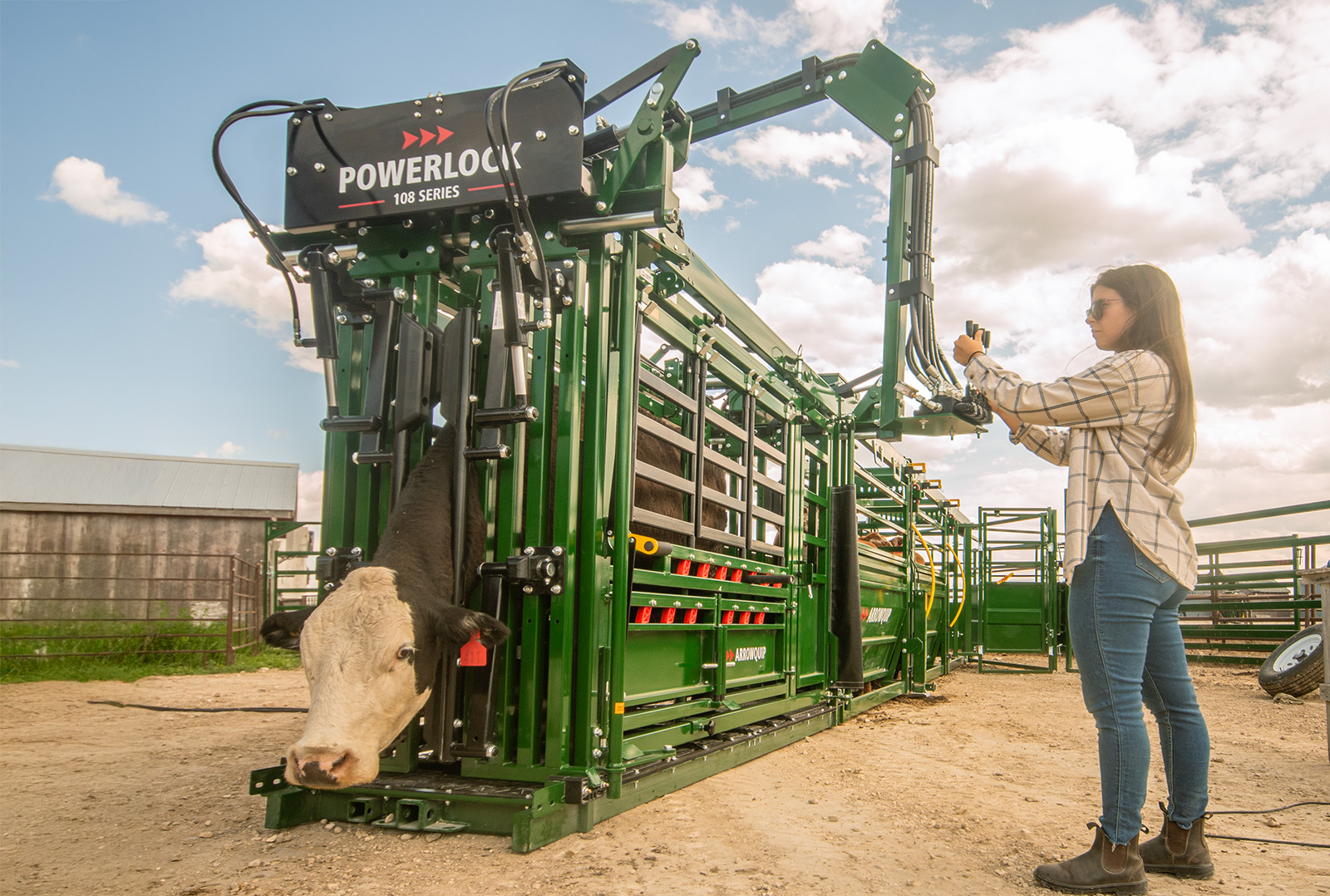

Featuring advanced hydraulics mounted on a pivoting swing arm allow you to have complete control at any point along the cattle chute so you can get the most out of your handling experience.
![Powerlock 108 with side door and palpation cage door open 1]()
Silent Cattle Handling Made Possible
Cattle handling doesn’t need to cause anxiety for you or your cattle. The Arrowlock 108 Series hydraulic chute offers top of the line care with quiet points placed strategically throughout the equipment so your cattle move calmly through the chute.
Gone are the days of noisy metal on metal to make your cattle handling experience easier and more efficient than ever.
See what Others Have to Say
Want more information?
Product Specifications
- 15-year hydraulic cattle chute warranty
- Curtain-style Head and Tail Gates open a full 31.5” top to bottom
- Squeeze ranges from 31.5" fully open to 7.75" fully closed
- Two rows of poly-composite rump fingers with lifetime warranty for added safety
- Fiberglass rump bar included standard
- 6 ½” neck injection site for easy neck access
- Three side access panels on each side for clear access to the cattle’s shoulder, back, and hips
- Full emergency exit doors for unlimited access

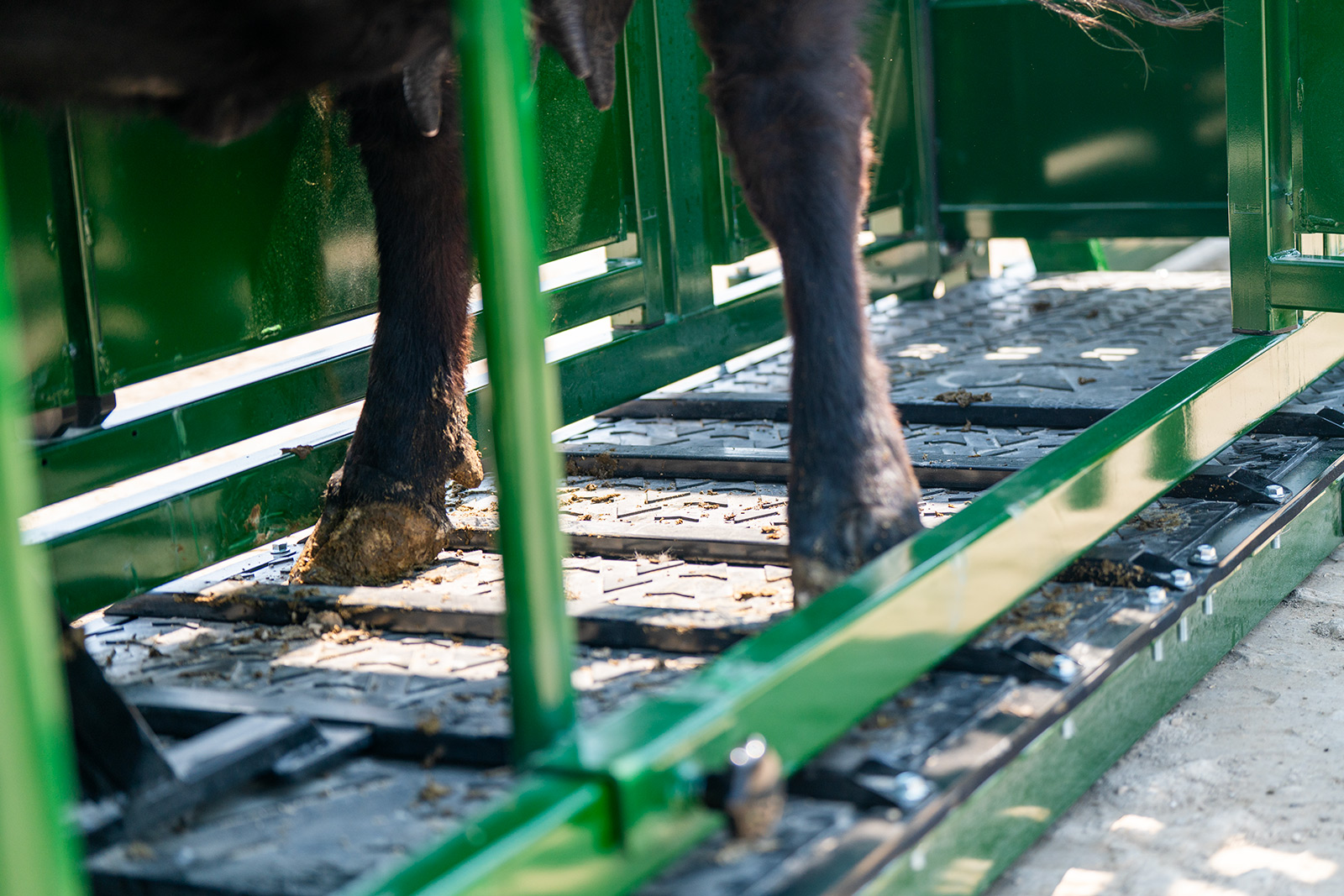

- True infinity rubber floor provides excellent traction for cattle
Available Add-Ons / Options
![Head sweep 104]()
Hydraulic Head Sweep
A simple, gentle, and effective option that connects to the hydraulic controls on your squeeze chute to hold the animals head in place with ease.
![Head holder hero]()
Fourth-Generation Cattle Head Holder
The fourth generation of the Cattle Head Holder is stronger and sturdier than ever before. The head holder easily attaches to your head gate and clamps around the cattle’s neck so you can safely treat your cattle up-close. Featuring a patented single lever push-pull operation, this head restraint simplifies any necessary procedures.
![Sternum bar option]()
Sternum Bar
The Sternum Bar supports the sternum and eliminates space at the bottom of the chute to prevent cattle from laying down. Arrowquip’s sternum bar comes sheeted to reduce hoof traps and can be installed or removed easily with two bolts.
![Balk Gate Option]()
Cattle Crash Gate
Even if you miss catching your livestock in the head gate, you can still be sure they won’t escape with the all-new Arrowquip Crash Gate. This will help create a controlled environment so you can treat your cattle with ease.
![Wheel kit option]()
Wheel Kit
Make your chute portable in no time with a wheel kit. You’ll be hitting the road in no time with a quick and easy installation – because we know how precious your time is.
Lug Post Kit
The Lug Post Kit allows you to connect corral panels to your Arrowlock or Powerlock cattle chute. Simply bolt the lug posts onto the head gate of your chute, and you will be able to connect panels or a Draft Module to create a closed handling system.
![Trimming bar option]()

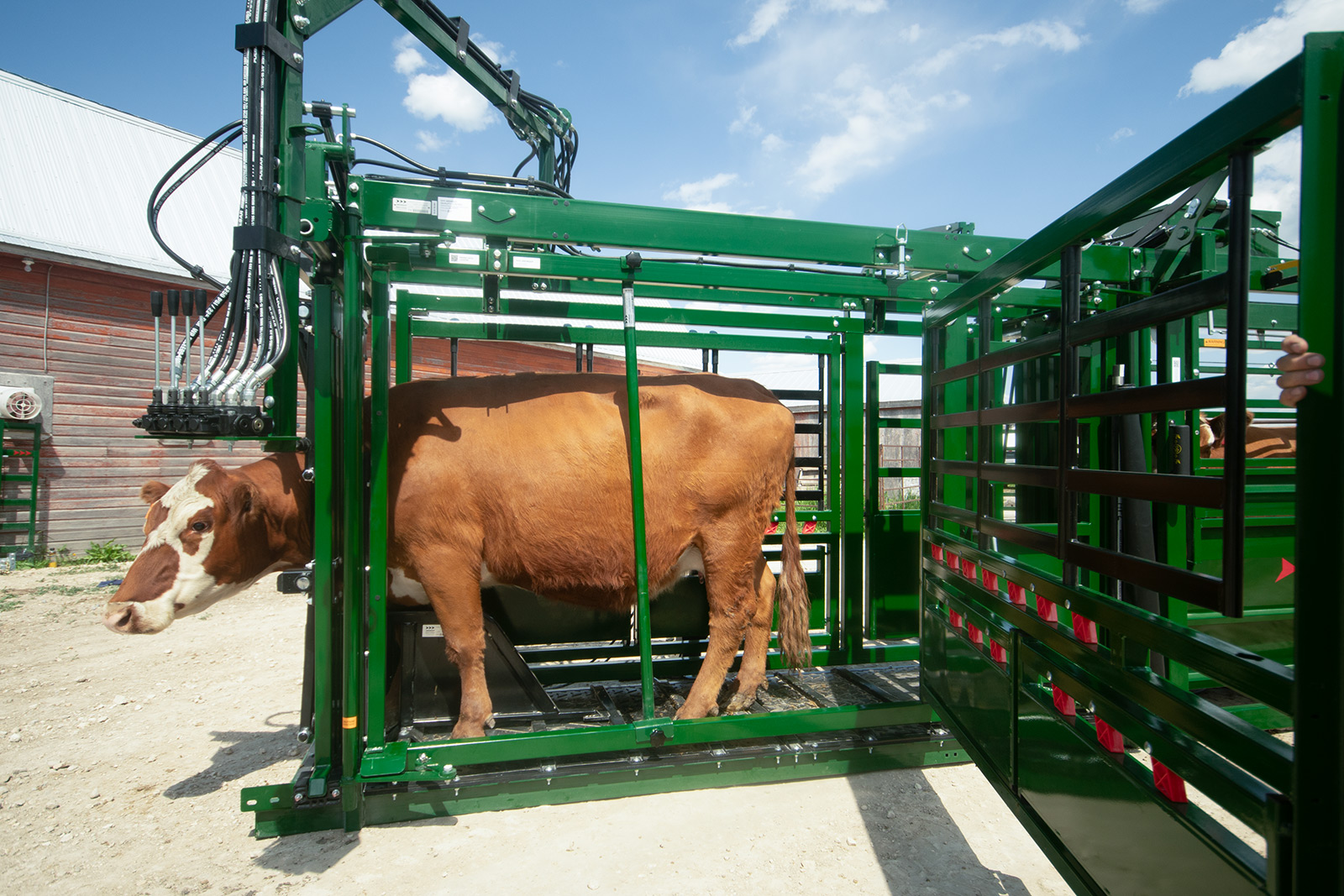

Calf Restrainer Bar
The Calf Restrainer Bar keeps your cattle safely contained when both side doors are opened for hoof trimming. This simple and effective option can be adjusted to accommodate cattle of different sizes, and is installed with just four bolts.
![Powerpack electric]()
Electric Hydraulic Power Pack
5HP electric motor. Operating pressure of 900PSI, with relief set at 1000PSI. The 10-gallon tank delivers 6.2GPM. Pioneer female ends on the power pack allow the connecting hose on the chute to plug straight in.
![Powerpack gas]()
Gas Hydraulic Power Pack
7HP gas motor. Operating pressure of 900PSI, with relief set at 1000PSI. The 10-gallon tank delivers 6.2GPM. Pioneer female ends on the power pack allow the connecting hose on the chute to plug straight in.
![Tractor hookup]()
Tractor Hydraulic Hook-up
Enables you to power the squeeze chute from the hydraulics on a tractor or other hydraulic equipment.
![Powerpack steath]()
Stealth Upgrade Electric Power Pack
The NEW Stealth Upgrade Electric Power Pack is a virtually silent power source with a 7.5HP electric motor. Operating pressure of 900PSI, with relief set at 1000PSI. The 10-gallon tank delivers 10.9GPM. Pioneer female ends on the power pack allow the connecting hose on the chute to plug straight in.
