The Heeler 75C Portable Corral, Chute, and Alley
Unleash the power of Streamlined Cattle Handling with the Industry’s Top All-In-One Portable Corral System
Product Code: HLPC
Product Features | Product Specifications
Weight: 9627 lbs.
Dimensions: 422" Wide x 99" High x 1250" Long
Get ready for a game-changing innovation in cattle management with the all-new Heeler 75C. With Arrowquip’s top products in cattle handling and the convenience of a portable working system, you can have the system of your dreams.
Built for durability and engineered with ranchers in mind, this portable corral, chute, and alley is your all-in-one solution for a more efficient solution whether you’re at home, on the ranch, or out at pasture. From the pens to the alleyway and through the cattle chute, this portable corral is designed to make your operation easier. Featuring hydraulic jacks, a fold-out BudBox, swing-out corral panels on airless tires, an 8’ Easy Flow Adjustable Cattle Alley Section, and an Arrowlock 75 Series at the front of it all, you can be sure the job gets done right every single time.
With advanced features, including multiple access points and user-friendly operating handles, you’re guaranteed a true one-person operation. The Arrowlock 75 Series squeeze chute also features a ratchet locking style cattle head gate with strength that’s comparable to a hydraulic, so you’re promised a strong hold every time and a guarantee that your cattle will never back out.
Elevate your cattle operation anywhere for generations to come with the Heeler 75C. This is the future of cattle handling.
Fill out this form to receive your Heeler 75C Corral brochure:
[ To get a closer look, click on image below ]
-

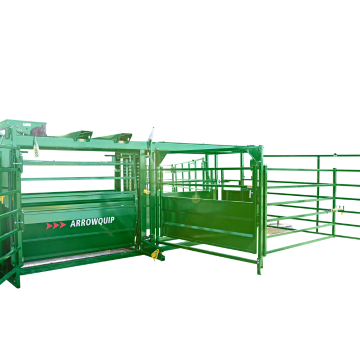

![Heeler 75C Portable Corral System with Bud Box]()
-

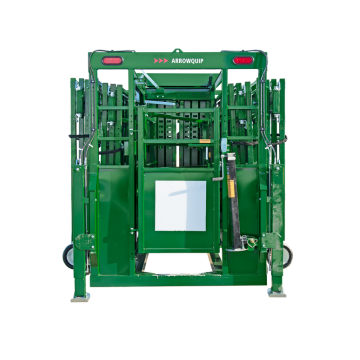

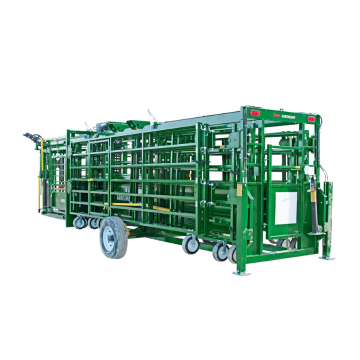

![Heeler 75C Portable Corral system ready for transport rear view]()
-

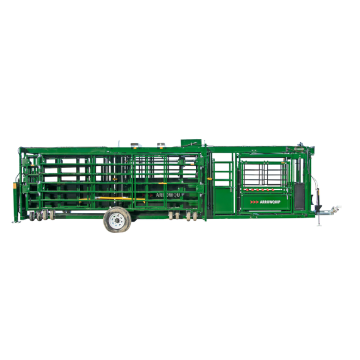

![Heeler 75C Portable Corral Side View]()
-

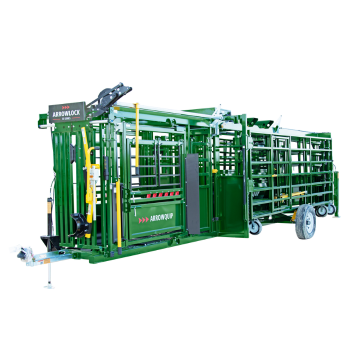

![Heeler 75C Manual Portable Corral System ready for transport]()
-

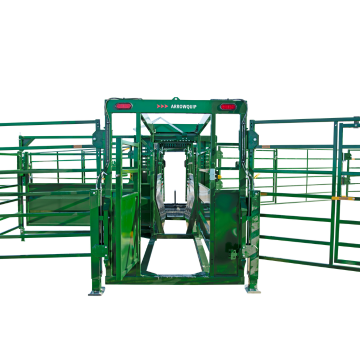

![Heeler 75C Manual Portable Corral System alley way]()
-

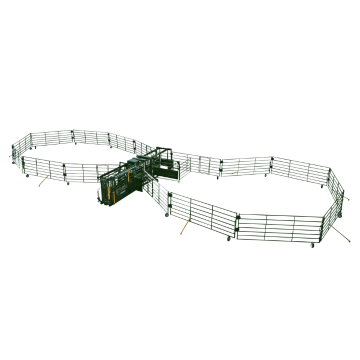

![Heeler 75C Manual Portable Corral overhead shot fully set up]()
-
![Heeler 75C Portable Corral rear view ready for transport]()
-

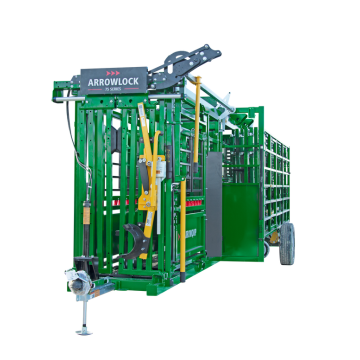

![Heeler 75C Portable Corral front view of cattle chute]()
-
![75C Portable chute, alley, and corral front angle]()
Product Features
![Heeler 75 C Manual Portable Corral System alley way]()
Mastering Cattle Movement
Efficient cattle flow is often a problem rancher face in portable corral systems, but with the Heeler 75C, that problem no longer exists. Designed to maximize efficiency with a fold-out BudBox, Rolling Alley Gates, and 3E technology that works with cattle behavior, you now have complete control of your cattle’s movements as they flow seamlessly from pens, through the alley, and into the cattle chute.
![Easy flow alley feature]()
Easy Flow Adjustable Cattle Alleys
While many portable corral options offer alleys, a missing element has always been adjustability. With the Heer 75C you have the ability to adjust your two sets of Easy Flow Cattle Alleys from 18-30” to suit your needs. Featuring two removeable panels, you can also control what cattle see, which will greatly enhance flow.
![Heeler 75 C Manual Portable Corral overhead shot fully set up]()
Swift and Simple Portable Corral Set-Up
Setting up and taking down a portable corral has often been a long, time consuming task, which leaves you drained before the real work has even begun. With hydraulic jacks and swing-out panels on airless tires paired with a winch system, you can set up and take down this unit in minutes, saving you precious time and energy.

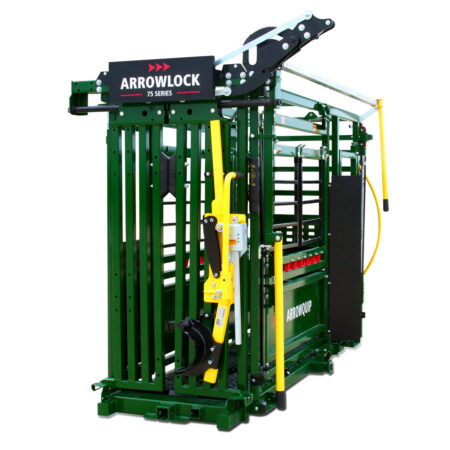

![Arrowlock 75 squeeze chute with palpation cage]()

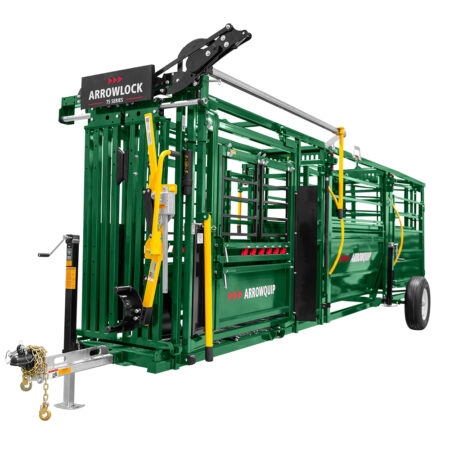

Arrowlock 75 Series Squeeze Chute
Designed for a one-person operation, the Arrowlock 75 Series cattle chute will make your cattle handling a breeze. With multiple access points for convenient access to your cattle, you never have to worry about pinched fingers or broken bones again.
Featuring a lock and cog style head gate, you never have to worry about cattle slipping out again.
See what Others Have to Say
Want more information?
Product Specifications
- 5-Year Warranty
- 8’ Easy Flow Alley section adjustable from 31.5” to 21"
- Two pens totaling approximately 2,646 square feet of working space
- 4 spring-loaded man gates placed strategically along the panels for access near the Bud Box and to easily move from pen to pen
- Removeable alley blinder panels to control cattle’s sight lines
- Lights included standard to haul at any time of day or night
- Fold-out Bud Box provides added control of cattle flow
- Two integrated rolling doors at each end of the alley
- Frame constructed with 4” x 4” beams and 2” x 6” tubing
- Swing out panels on airless tires with a winch system
- Panels built with 1.5” x 1.5” .100”w steel tubing
- Panels hinge off the frame in sets of four, eight on each side, and easily fold for transport
- Barred head gate design uses light to draw cattle into the chute
- Head Gate operation handle can be used anywhere alongside the chute
- Curtain-style Head Gate opens a full 29.5”
- Squeeze on the cattle chute ranges from 31.5” fully open to 7.75” fully closed
- Rump fingers ensure additional safety no matter the size of the animal
- Swing-out top and bottom access doors can be used individually or together as an emergency exit
- Removable side access doors that can be configured in a variety of positions
- Top to bottom needle access for quick injections
Available Add-Ons / Options
![Head holder hero]()
Fourth-Generation Cattle Head Holder
The fourth generation of the Cattle Head Holder is stronger and sturdier than ever before. The head holder easily attaches to your head gate and clamps around the cattle’s neck so you can safely treat your cattle up-close. Featuring a patented single lever push-pull operation, this head restraint simplifies any necessary procedures.
![Sternum bar option]()
Sternum Bar
The Sternum Bar supports the sternum and eliminates space at the bottom of the chute to prevent cattle from laying down. Arrowquip’s sternum bar comes sheeted to reduce hoof traps and can be installed or removed easily with two bolts.
![Balk Gate Option]()
Cattle Balk Gate
Even if you miss catching your livestock in the head gate, you can still be sure they won’t escape with the all-new Arrowquip Balk Gate. This will help create a controlled environment so you can treat your cattle with ease.
![Lug Post]()
Lug Post Kit
The Lug Post Kit allows you to connect corral panels to your Arrowlock or Powerlock cattle chute. Simply bolt the lug posts onto the head gate of your chute, and you will be able to connect panels or a Draft Module to create a closed handling system.
![Trimming bar option]()
Calf Restrainer Bar
The Calf Restrainer Bar keeps your cattle safely contained when both side doors are opened for hoof trimming. This simple and effective option can be adjusted to accommodate cattle of different sizes, and is installed with just four bolts.
![8ft panel]()

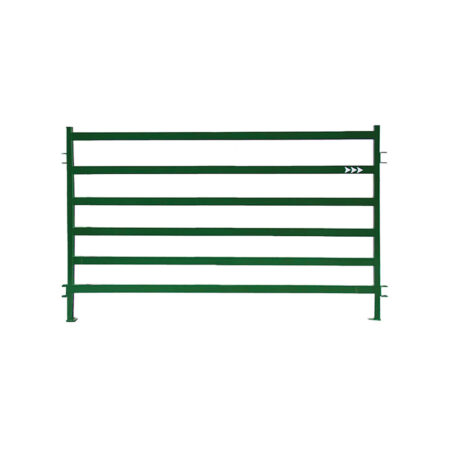

Cattle Panels
Pair your portable corral with additional panels to connect to other handling equipment and add more room for processing between the portable corral and cattle chute.
Cattle Panel Hangers
Carry additional panels on your alley with the Cattle Panel Hangers.
