Cattle Tubs - Crowding
Cattle Sweep Tub To Fit Any Cattle Handling Configuration
Product Code: T8 / T10 / T12
Product Features | Product Specifications
5 models available:
Single 90° Alley Exit| Double 90° Alley Exit| Single 180° Alley Exit| Double 180° Alley Exit| Pro Series Quarter Tub

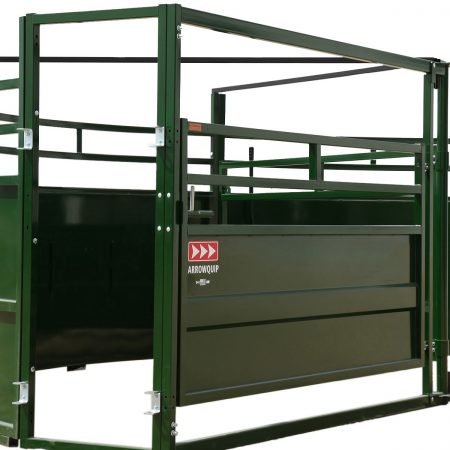

Arrowquip's Cattle Crowding Tubs are a high capacity, high quality product designed to move your cattle quickly and safely into a chute, alley, or truck. The cattle tubs feature a tubular frame that is light-weight, yet durable enough to withstand the heavy-duty use of a crowding tub. The crowd gate lock-out and exit gate come standard on the Crowding Tub, and distractions are kept to a minimum with the sheeted sides. The tub features simple assembly, ensuring efficient set-up and tear down as necessary.
Fill out this form to receive your Crowding Tub brochure:
[ To get a closer look, click on image below ]
-
![Front entry gate open on cattle sweep tub]()
-
![Overhead view of sweep gate in use on cattle crowding tub]()
-
![Overhead view of single alley cattle tub with sweep gate pushed in slightly]()
-
![View of double alley exit on cattle sweep tub]()
-
![Overhead view of Double Alley Cattle Tub]()
-
![Single Alley Cattle Tub with 180 Degree exit side view]()
-
![Cattle crowding tub with 180 degree exit]()
-
![Double Alley Cattle Tub with 180 degree exit]()
-
![Double Alley Cattle Tub with 180 degree exit overhead view]()
-
![Close-up of the lock-out handle on the cattle sweep tub]()
-
![Cattle Tub Top Joiner Bars]()
-
![Bottom joiner bars on BudFlow cattle sweep tub]()
-
![Close-up view of bolt-together cattle tub panels]()
-
![Cattle tub slam latch close-up]()
Product Features
![Inside view of cattle sweep tub locking points]()
High-Quality Construction
All Crowding Tubs are built for heavy-duty work. Made with powder-coated American steel, the Crowding Tub is designed to withstand extreme weather conditions for long-term use. For added stability, the panels are bolted together and stabilized by joiner bars that connect to the center of the tub.
![Close-up of the lock-out handle on the cattle sweep tub]()
Crowd Gate Lock
The crowd gate automatically locks into position as you move the sweep through the tub, ensuring cattle cannot push back on the gate and cause injury to the handler. For quieter operation, the crowd gate lock features a rubber bushing to cushion the impact on the panels and reduce metal clanging. When not in use, the crowd gate lock can be disengaged to pull the sweep back in a smooth motion.
![Inside view of cattle sweep tub locking points]()

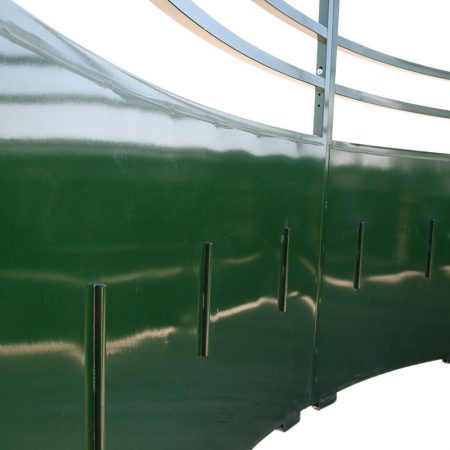

Fully Sheeted Sides
The fully sheeted sides on the Cattle Crowding Tubs safeguard cattle, as there are no foot traps or opportunity for them to injure themselves in the tub. 53" sheeting allows the handler to use point of balance handling techniques to assist with cattle movement.
![View of crowding tub pin points]()
Connect With Ease
Connecting your crowding tub to your alley or cattle corral panels is quick and easy. With four pin connections, seamlessly connect to any Arrowquip equipment.
Pro Series Quarter Cattle Tub
The Pro Series Quarter Cattle Tub promotes low-stress cattle handling and smooth flow, all in a compact, true quarter tub design. Designed to be slightly lighter than other Arrowquip cattle tubs, so whether you're managing a small herd or working your way up, you now have an economical solution without compromising on quality where it matters most.
Built with durable materials, smooth tub walls to reduce the risk of injury, and a noise-reducing tub stop, this quarter tub is designed to withstand the demands of daily use while keeping cattle calm and your operation efficient. Additionally, the Pro Series Cattle Tub pairs effortlessly with Arrowquip’s Easy Flow Pro Adjustable Cattle Alleys so you can build a system tailored to your operation. Set-up is quick, maintenance is minimal, and the quality is built to last you for generations to come.
See what Others Have to Say
Want more information?
Product Specifications
- Simple assembly
- Rectangular tubing limits cattle bruising and injury
- Primed and powder-coated steel ensures long-term durability of the equipment
- 14-gauge steel sheeting
- Sheet metal is caulked to reduce noise
- Crowd gate lock assists in sweeping so cattle are unable to push the gate back
- Center post features a rubber bumper to eliminate the gap between the post and back gate
- 12' cattle tubs have higher railing on panels and gates that are ideal for spirited cattle
- 12' crowding tub features welded stays for additional support
Available Models
Model: Single 90° Alley Exit
Weight: 1219 lbs. / 1486 lbs. / 1843 lbs.
Dimensions: 101.8" Wide x 86" High x 190.3" Long / 126" Wide x 86" High x 236.2" Long / 152.8" Wide x 86" High x 288.2" Long
The standard Crowding Tub design features the single 90° alley exit, allowing you to load a single alley smoothly. Whether you prefer to pair your tub with Easy Flow or Adjustable Cattle Alleys, this standard design is the ideal crowding tub solution for most system designs.
Available in 8', 10' and 12' Diameters.
Model: Double 90° Alley Exit
Weight: 1370 lbs.
Dimensions: 126.8" Wide x 86" High x 241" Long
For systems that require a double alley, the Double 90° Alley Exit version of the Crowding Tub can assist in improving processing times! Double alleys can significantly improve flow through your alleyway system, by allowing cattle to walk through the system side-by-side and lowering cattle stress during the handling process.
Available in 10' Diameter.
Model: Single 180° Alley Exit
Weight: 1221 lbs. / 1487 lbs.
Dimensions: 101.8" Wide x 86" High x 187.6" Long / 126" Wide x 86" High x 235" Long
When space is limited, a Single 180° Alley Exit may be the ideal solution for your operation's needs. Specifically in enclosed and tight spaces, a 180° exit provides you with all of the space cattle require to move effectively into the alleyway.
Available in 8' and 10' Diameters.
Model: Double 180° Alley Exit
Weight: 1435 lbs.
Dimensions: 126.8" Wide x 86" High x 235" Long
To effectively move cattle into your double alleyway within tight space constraints, the Double 180° Alley Exit is an excellent way to ensure cattle transition smoothly into your alleys. Double Alleys are particularly effective in systems where there is room to have cattle walk side by side for multiple alley lengths to create flow.
Available in 10' Diameter.Model: Pro Series Quarter Tub
Weight: 597 lbs.
Dimensions: 106" Wide x 80" High x 103" Long
Recommended Number of Adult Cattle: 3
