Arrowlock 75 Series Squeeze Chute
A Manual Chute Designed to Simplify Your Cattle Handling Operation
Product Code: 7500
Product Features | Product Specifications
2 models available:
Deluxe Vet| Standard
Introducing the Arrowlock 75 Series squeeze chute: Your ultimate cattle chute designed to get the job done right every time – because we know your time is valuable.
Efficiency and safety come together in the all-new Arrowlock 75 Series to make cattle handling and management easy on you and your livestock. With an all-new ratchet style head gate, you get the strongest hold in a manual chute with additional features, such as a true rubber floor, multiple access points, and easy-to-use operating handles for a true one-person operation. Every inch of the Arrowlock 75 Series squeeze chute reflects Arrowquip’s dedication to excellence. Backed by an exclusive 10-year warranty, you can be certain your equipment will withstand the elements (and your cattle!).
Get ready to elevate efficiency on your cattle operation today, tomorrow, and for years to come with the Arrowlock 75 Series.
Fill out this form to receive your Arrowlock 75 Cattle Chute brochure:
[ To get a closer look, click on image below ]
-
![Arrowlock 75 squeeze chute with palpation cage]()
-
![Arrowlock 75 manual squeeze chute with head holder]()
-
![Arrowlock 75 squeeze chute with head gate open]()
-
![Arrowlock 75 squeeze chute with squeeze open]()
-
![Arrowlock 75 squeeze chute with bottom access door open]()
-
![Arrowlock 75 squeeze chute with needle access door open]()
-
![Arrowlock 75 squeeze chute with palpation cage side view]()
-
![Arrowlock 75 cattle chute with rear gate open]()
-
![Arrowlock 75 ratchet mechanism for head gate]()
Product Features
![Arrowlock 75 manual squeeze chute with head holder]()

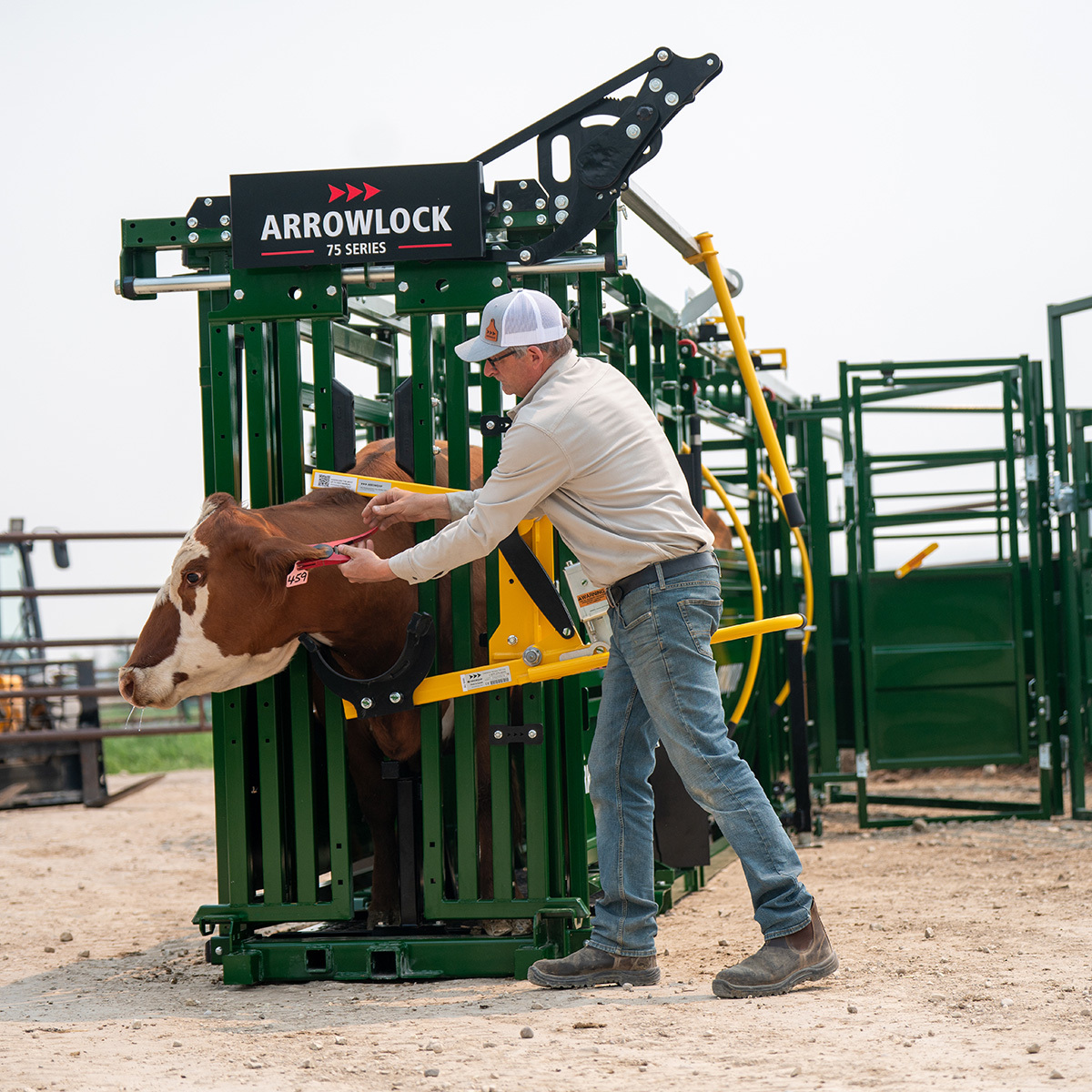

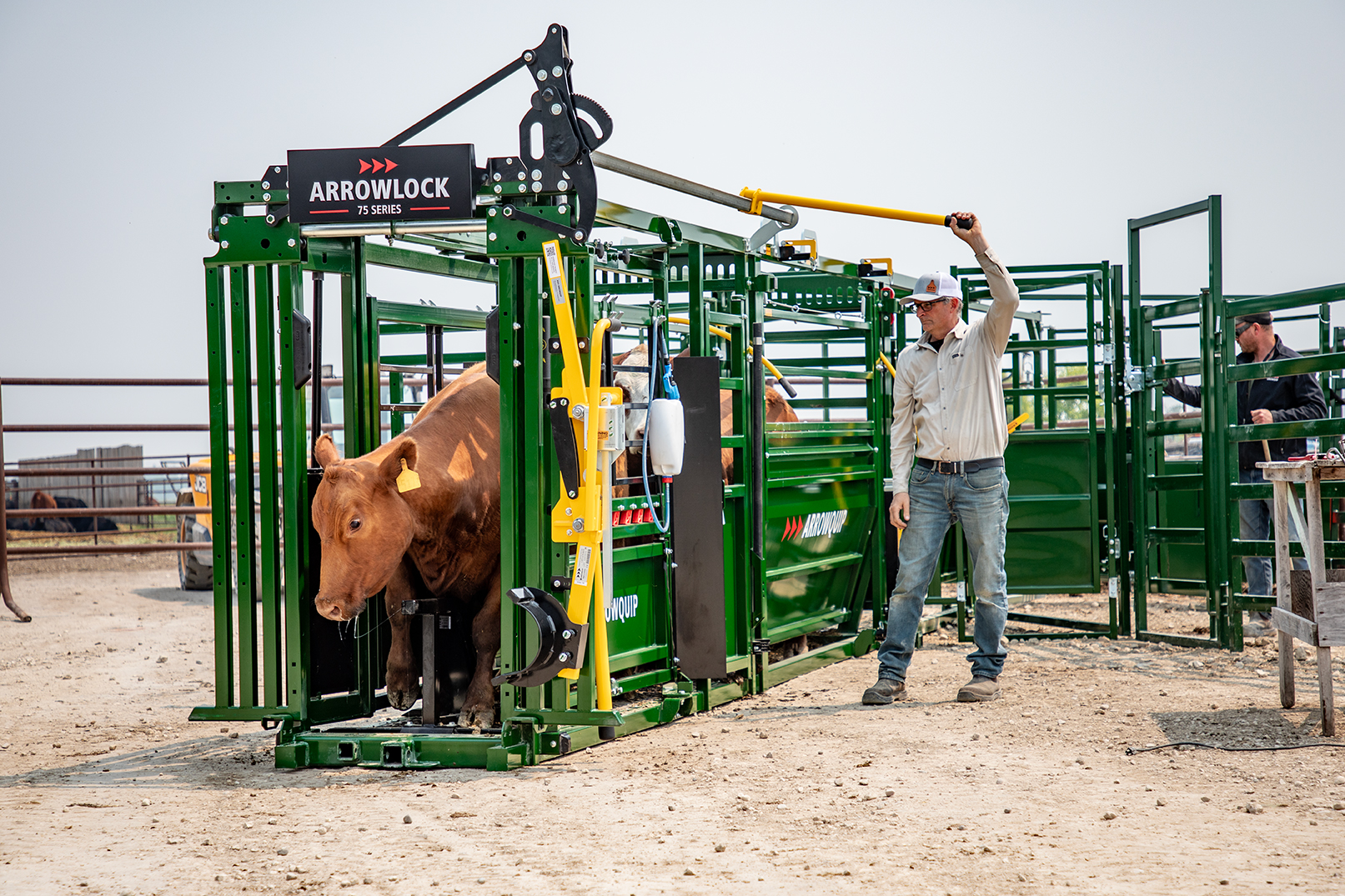

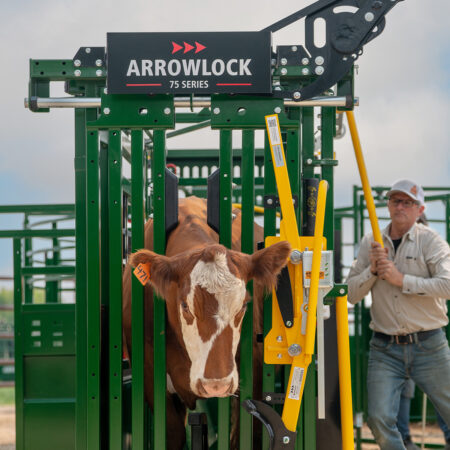

3E Arrowlock Cattle Head Gate
Designed with cattle behavior in mind, the 3E Cattle Head Gate prompts cattle to enter the squeeze chute without a fight. Even when the head gate is closed, the barred design allows cattle to see light, drawing them in. This results in a smoother, more hands-off cattle handling experience.
With the ratchet locking mechanism, you're guaranteed a strong hold on your cattle, eliminating the chance of them slipping out.
![Arrowlock 75 squeeze chute with bottom access door open]()
Unmatched Squeeze Chute Access

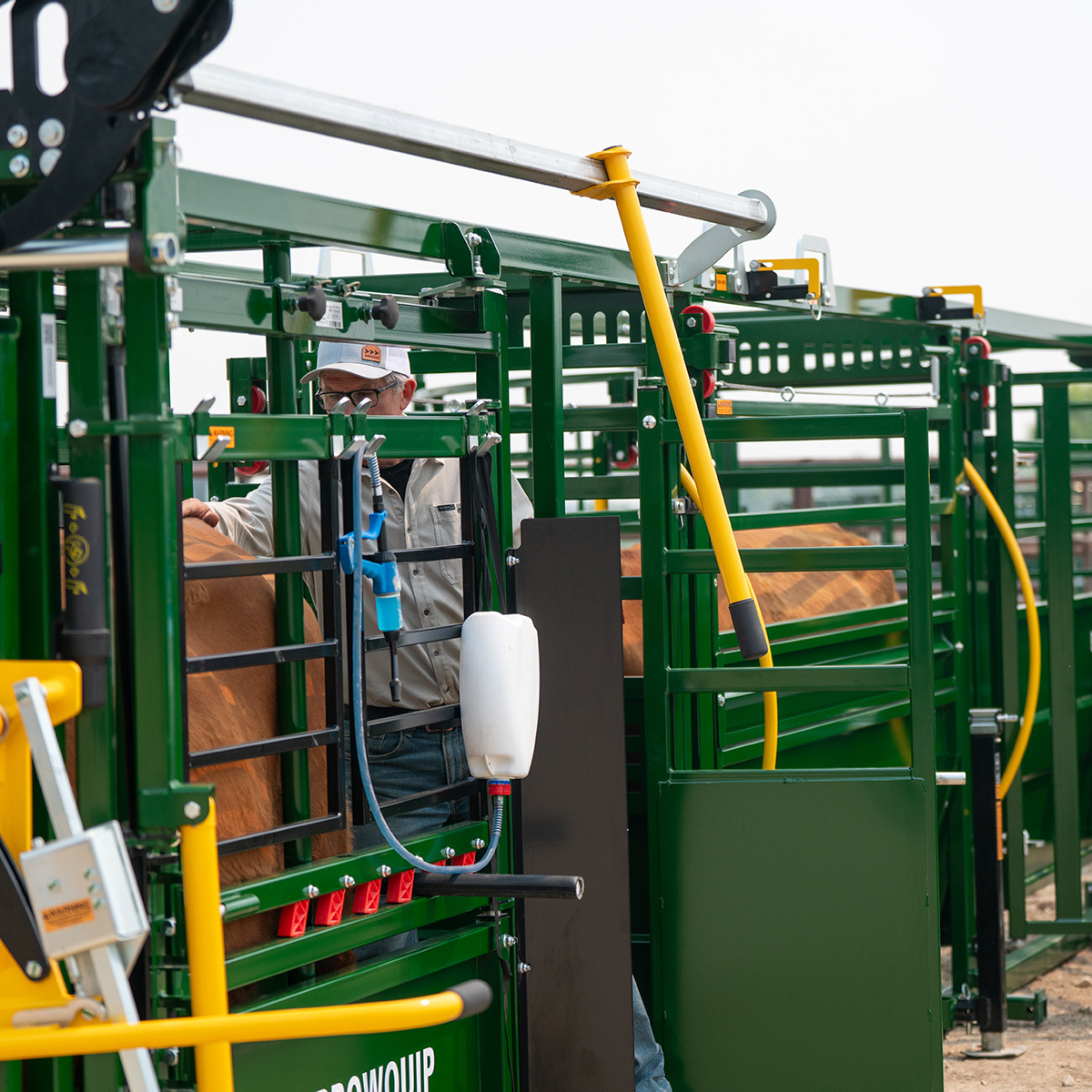

The Arrowlock 75 Series allows you to access your cattle through a series of access points. With top and bottom swing-out gates for full side access, a drop-down needle door, and side access panels, you can treat or brand your cattle with ease. The 75 Series Deluxe Model features a full-size vet cage with optimal head clearance so your animals can be accessible from all angles.
![Arrowlock 75 squeeze chute with head gate open]()

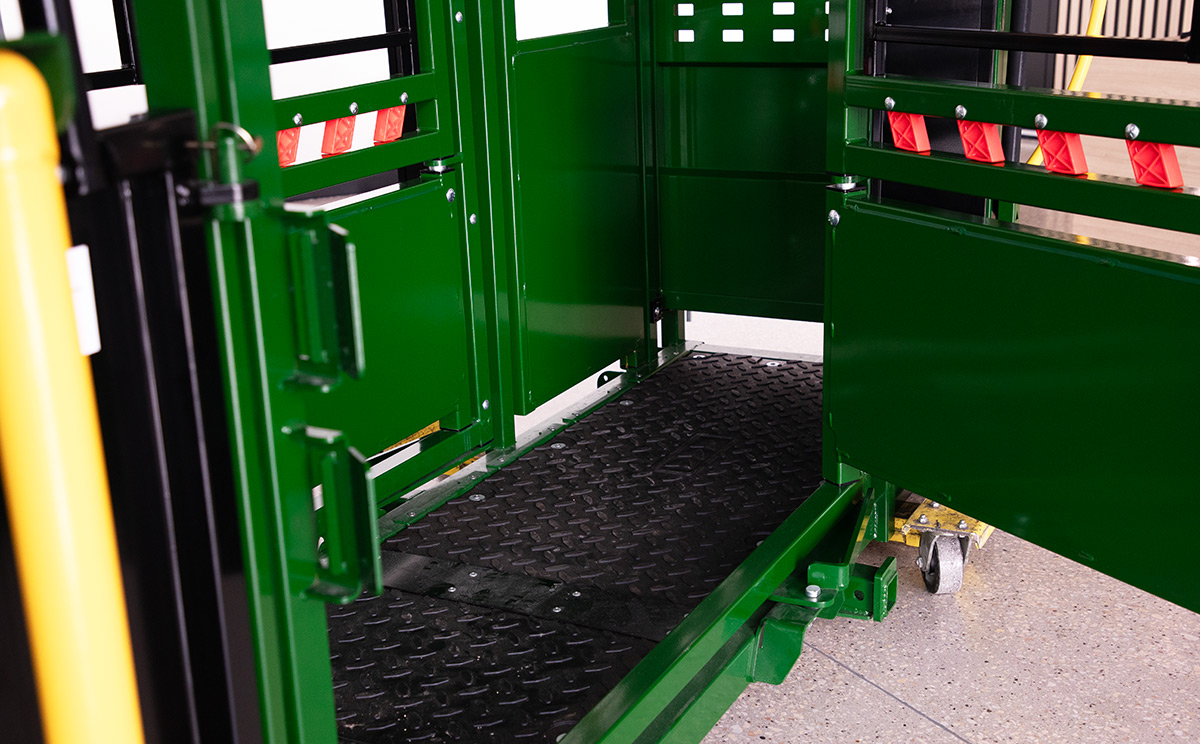

True Virgin Rubber Cattle Chute Floor
Unlike other options on the market, our rubber floor is made from TRUE rubber to dampen noise for a smooth and quiet cattle handling experience. The special design on our floors provide great traction for hooves to help cattle feel secure and confident to walk through the chute seamlessly.
![Arrowlock 75 squeeze chute with palpation cage side view]()
Unbeatable 10-Year Warranty
We hold our equipment to a high standard, and strongly believe in the quality. That is why we’ve backed our 75 Series squeeze chute with industry-leading warranty. Our 10-year warranty means we have your back no matter what, to keep your cattle operation running safer, easier, and faster than ever before. Additionally, all locking mechanisms, the rubber floor, and rump fingers are backed by a lifetime guarantee.
See what Others Have to Say
Want more information?
Product Specifications
- 10-year warranty
- Arrowlock head gate for a secure hold
- Unique barred head gate design uses light to draw cattle in
- Curtain-style head gate opens to a full 31.5” top to bottom

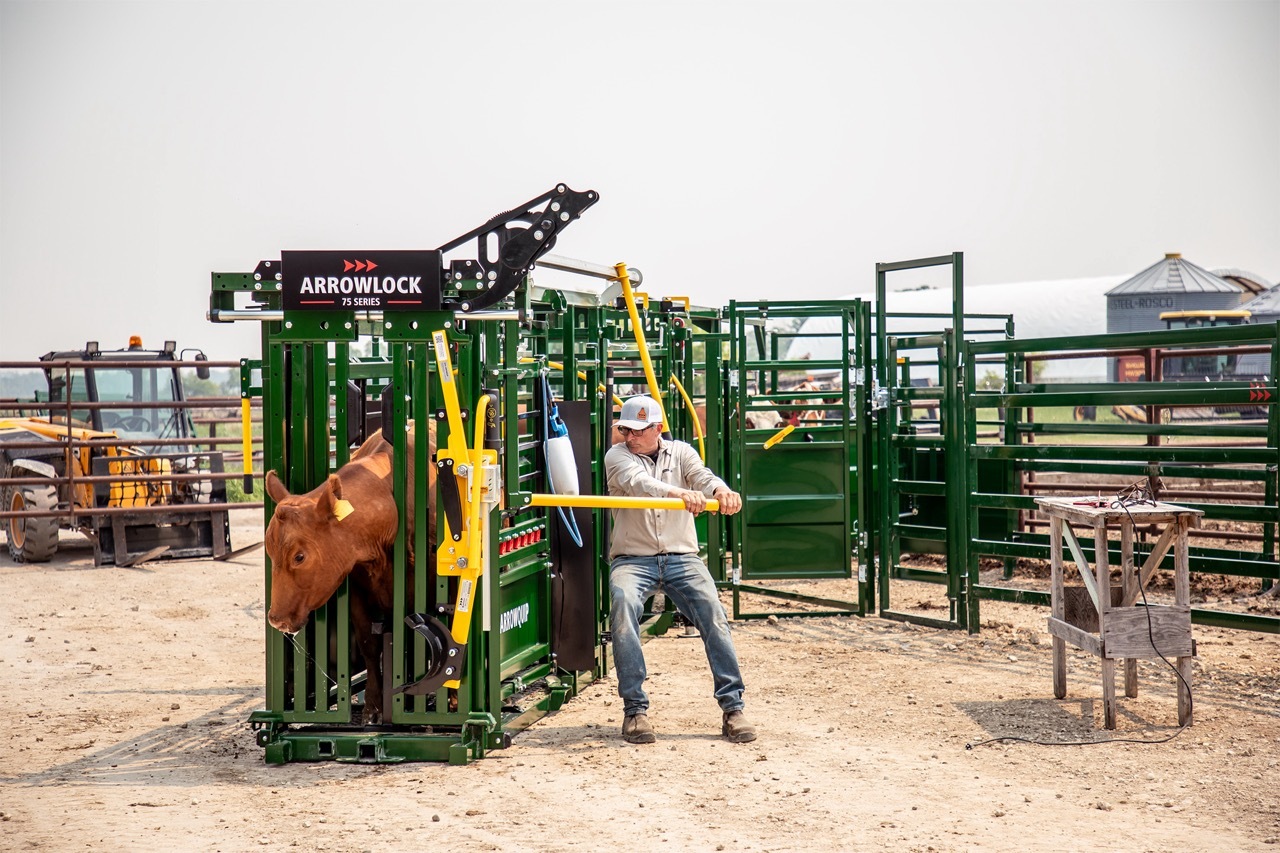

- Easy to use push-pull squeeze lever
- Squeeze on the cattle chute ranges from 31.5” fully open to 7.75” fully closed
- Rump fingers ensure additional safety no matter the size of the animal
- Ambidextrous rolling door so you can control the flow of cattle
- Vet door opens in both directions for a full 180° of maneuverability (Deluxe Vet only)

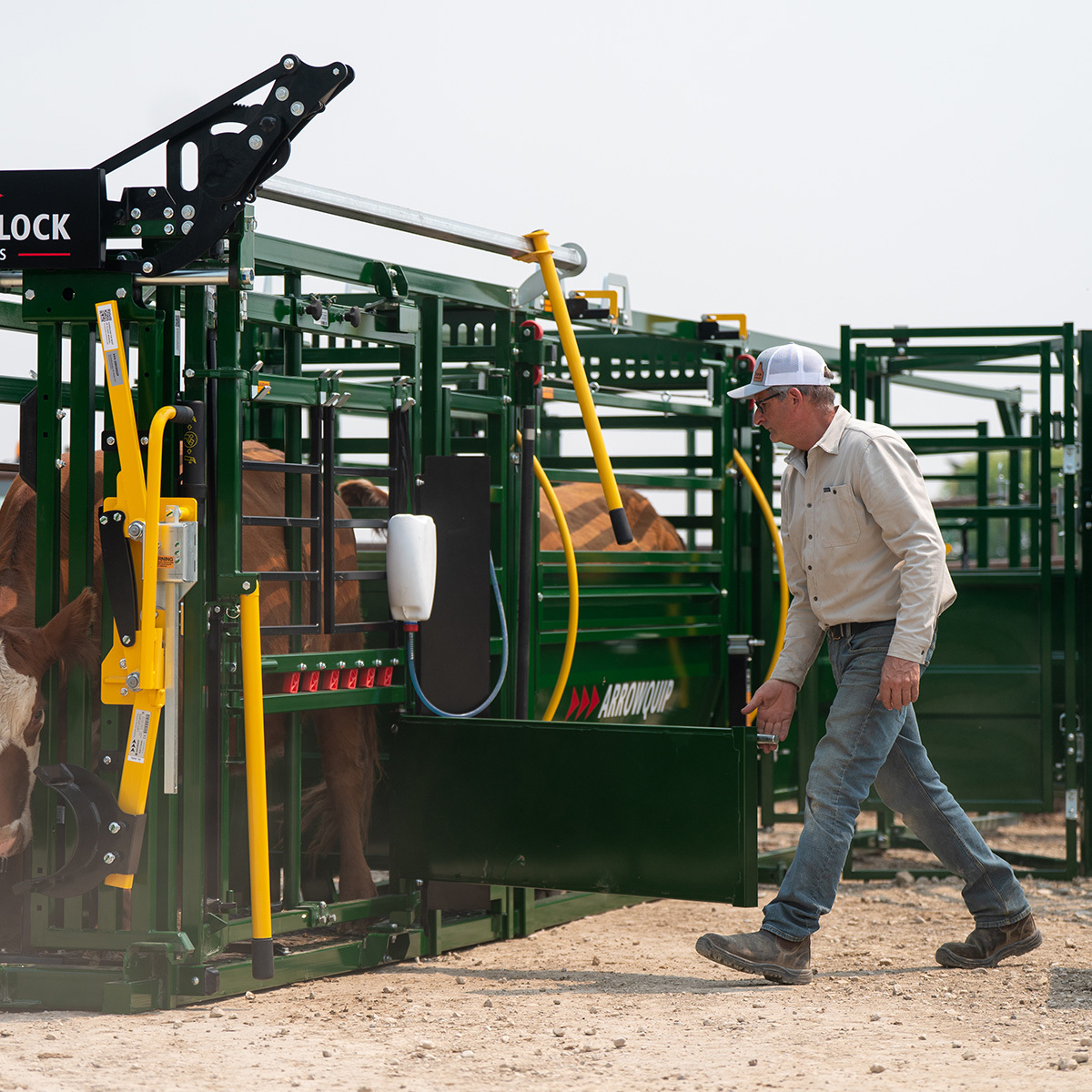

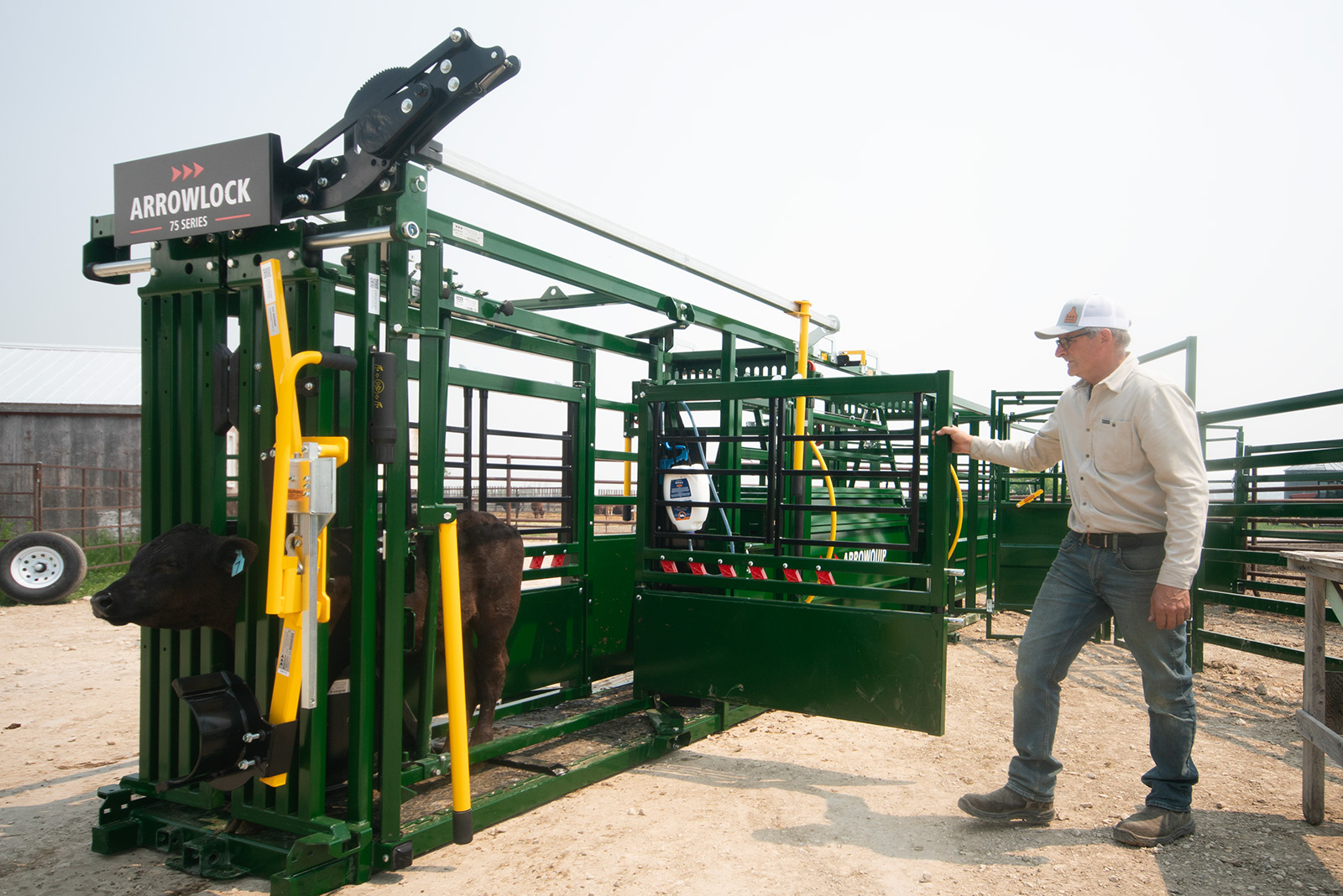

- Swing-out top and bottom squeeze chute access doors can be used individually or together as an emergency exit
- Removable side access doors that can be configured in a variety of positions
- 12.75" top to bottom needle access for quick injections
- Pivot and latch points feature poly bushings for a silent operation
- True rubber floor for added traction and a quieter operation
- Mount brackets included so you can add load bars or secure the chute to concrete
- Rectangular tubing to limit cattle bruising
Available Models
Model: Deluxe Vet
Weight: 2055 lbs.
Dimensions: 63" Wide x 99" High x 133" Long

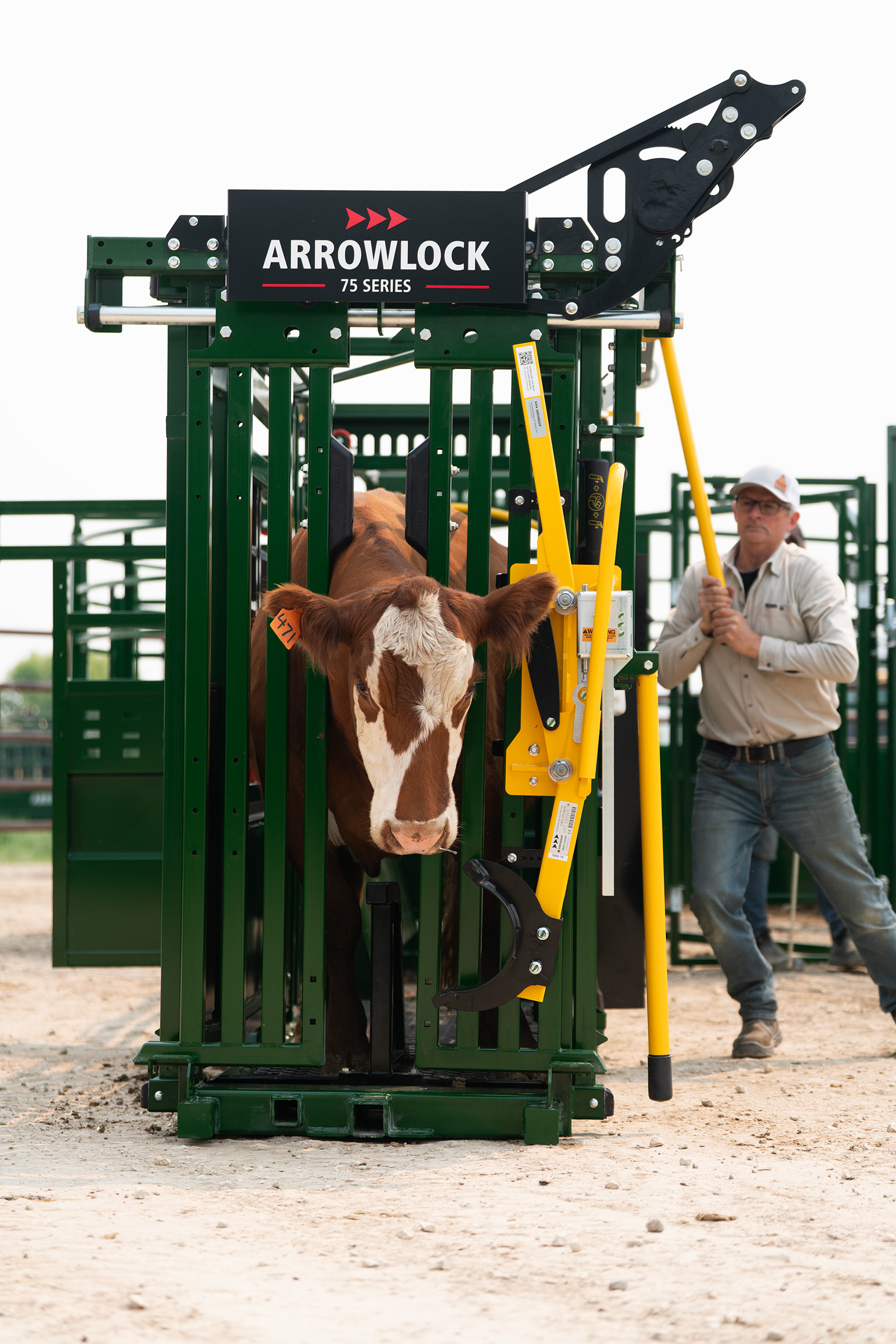

For those aiming to maximize efficiency without compromising on affordability, look no further than the Arrowlock 75 Series. The Deluxe Vet model includes a stationary full-length palpation cage at the back and a head gate handle that can be operated anywhere alongside the chute. Capable of handling cattle of any size, the Arrowlock 75 Series cattle chute allows you to get the job done right every time.
Model: Standard
Weight: 1762 lbs.
Dimensions: 63" Wide x 99" High x 104" Long
Need to work cattle efficiently, but don’t need the vet cage? No worries, the Arrowlock 75 Series still has your back. With all the same features as the deluxe model (minus the palpation cage), the 75 Series is a trustworthy squeeze chute perfect for your operation.
Available Add-Ons / Options
![Head holder hero]()

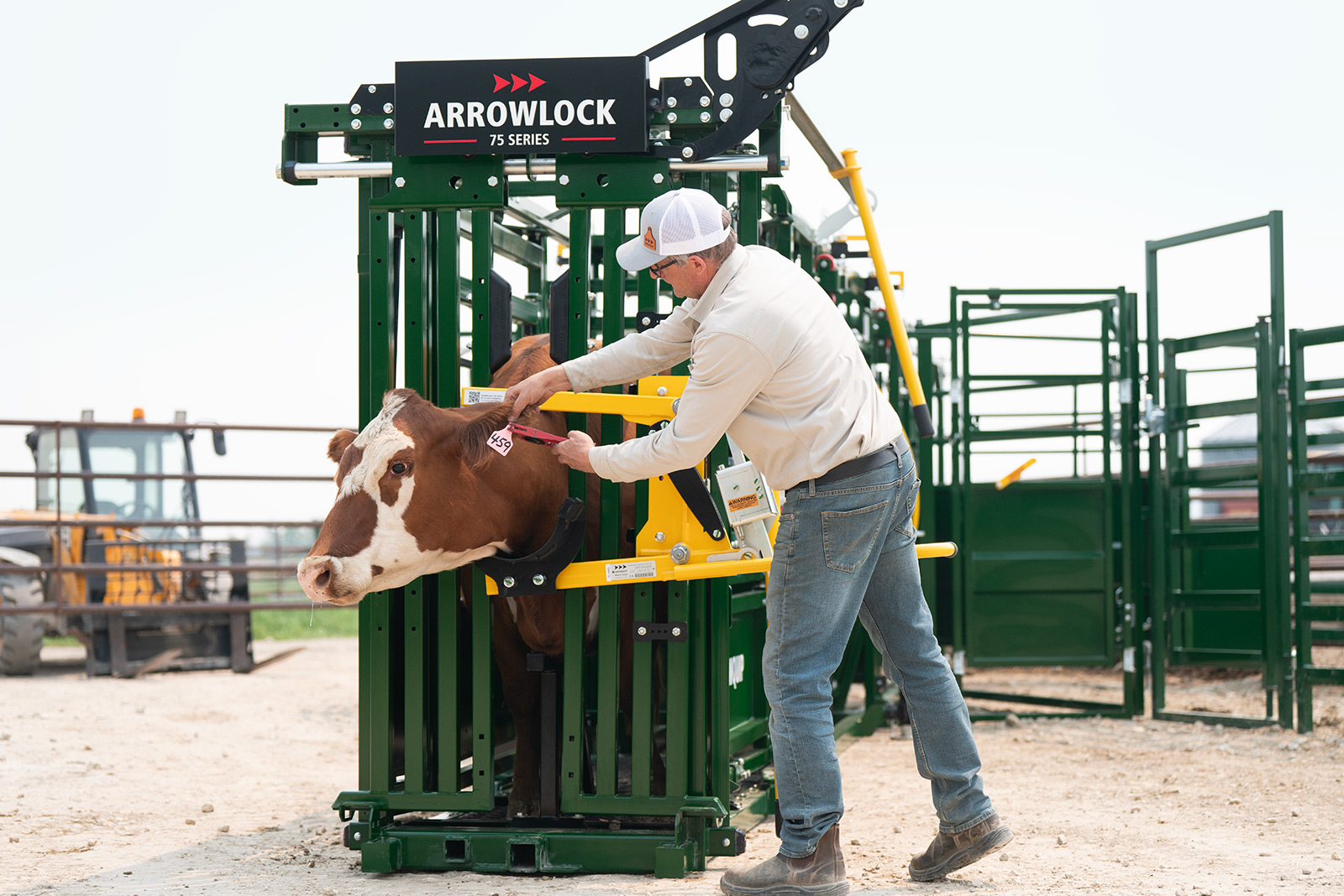

Fourth-Generation Cattle Head Holder
The fourth generation of the Cattle Head Holder is stronger and sturdier than ever before. The head holder easily attaches to your head gate and clamps around the cattle’s neck so you can safely treat your cattle up-close. Featuring a patented single lever push-pull operation, this head restraint simplifies any necessary procedures.
![Sternum bar option]()
Sternum Bar
The Sternum Bar supports the sternum and eliminates space at the bottom of the chute to prevent cattle from laying down. Arrowquip’s sternum bar comes sheeted to reduce hoof traps and can be installed or removed easily with two bolts.
![Trimming bar option]()

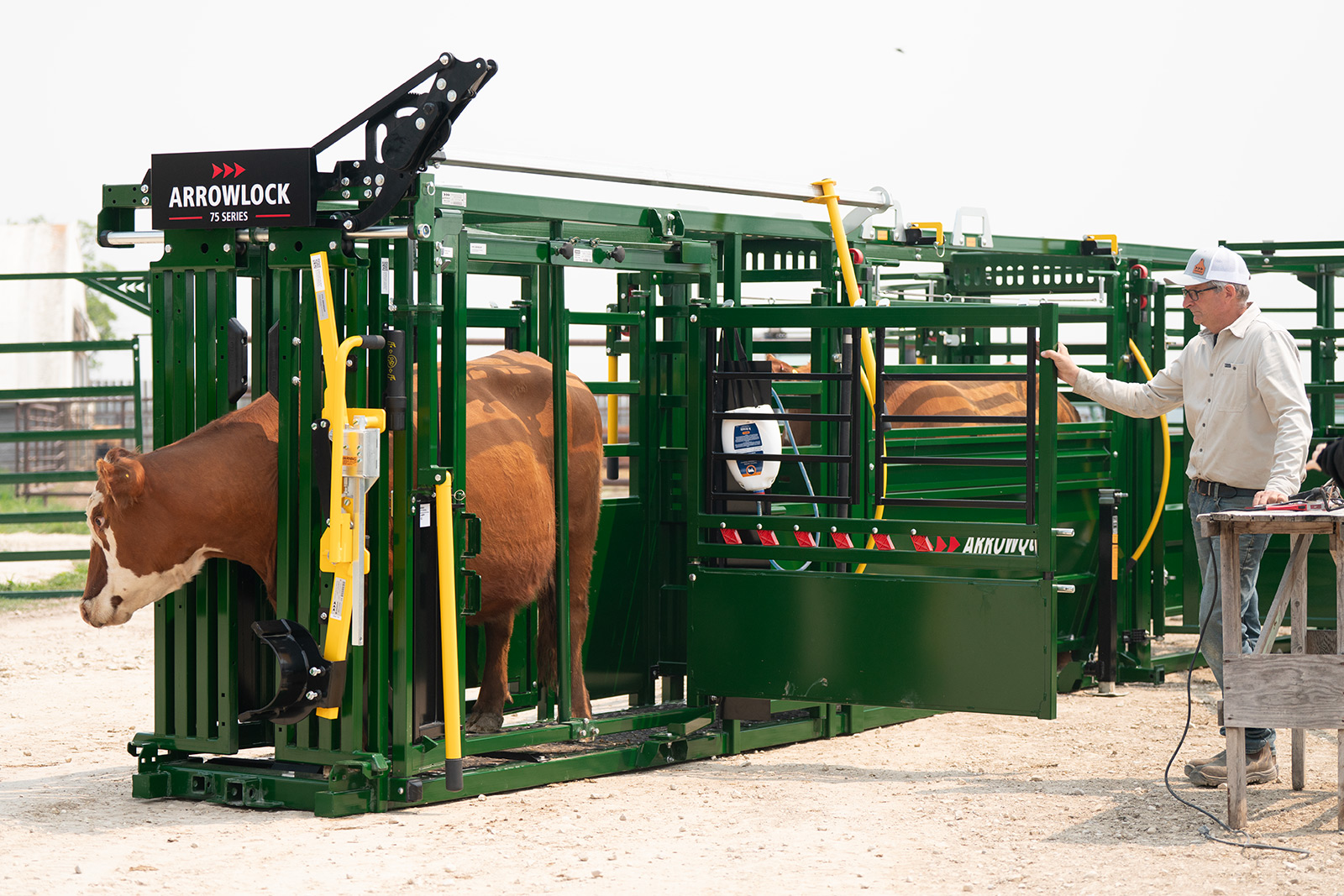

Calf Restrainer Bar
The Calf Restrainer Bar keeps your cattle safely contained when both side doors are opened for hoof trimming. This simple and effective option can be adjusted to accommodate cattle of different sizes, and is installed with just four bolts.
![Balk Gate Option]()
Balk Gate for Cattle
Even if you miss catching your livestock in the head gate, you can still be sure they won’t escape with the all-new Arrowquip Cattle Balk Gate. This will help create a controlled environment, so you can treat your cattle with ease.
![Wheel kit option]()
Wheel Kit
Make your chute portable in no time with a wheel kit. You’ll be hitting the road in no time with a quick and easy installation – because we know how precious your time is.
Lug Post Kit
The Lug Post Kit allows you to connect corral panels to your Arrowquip cattle chute. Simply bolt the lug posts onto the head gate of your chute, and you will be able to connect panels or a Draft Module to create a closed handling system.
