Q-Catch 86 Series Portable Cattle Chute, Alley & Tub

Portable Q-Catch 86 Series Cattle Chute, Cattle Alley & Cattle Tub | Arrowquip Cattle Equipment

Full Cattle Handling System Made Portable

5

4 models available:
Electric Jacks & 3E BudFlow®| Electric Jack & Crowding Tub| Manual Jack & 3E BudFlow®| Manual Jack & Crowding Tub

View model details below

* Head Holder Optional

Find my nearest dealer

The new 2019 Q-Catch Portable Cattle Chute, Alley & Tub has been completely redesigned with new electric jacks, Arrowquip’s renowned true rubber floor, the Easy Flow Cattle Alley, and the new 3E BudFlow System. This truly portable handling system is designed for ease of towing with a collapsible tub that measures just 64" wide when being towed, a redesigned hitch with adjustable height and added gusset for structural support, and new electric jacks that can lift or lower the unit in under two minutes.

The new 3E BudFlow® allows cattle to see more light as they enter the tub, and the alley with 30” sheeting on the entry panel, and the additional panel to the side of the alley. This provides cattle with the impression that they are escaping, rather than entering an enclosed area, and drastically improves the flow of livestock through your handling system.

The Arrowquip R&D team has spent hundreds of hours designing this system to be as efficient and effective as possible, to provide you with more time to do the things that truly matter. For maximum durability, efficiency, and profitability in a portable handling system, look no further than the Q-Catch 86 Series Portable Cattle Chute, Alley & Tub.

Apply for Financing Download My Portable Q-Catch 86 Series Brochure (11.5 MB)

Choose your Portable Cattle Handling System model

  • Model: Electric Jacks & 3E BudFlow®

    Weight: 5456 lbs.

    Dimensions: 193" Wide x 93" High x 416" Long

    Towing Dimensions: 77" Wide x 110" High x 445" Long

    The new 3E BudFlow® system allows cattle to see more light, which enhances flow through your handling system, and the new Electric Jacks make it easy to lift and lower your unit in less than two minutes.

  • Model: Electric Jack & Crowding Tub

    Weight: 5037 lbs.

    Dimensions: 99" Wide x 93" High x 416" Long

    Towing Dimensions: 77" Wide x 110" High x 445" Long

    The new Electric Jacks make it easy to lift and lower your unit in less than two minutes, and the 180° Crowding Tub provides effective cattle crowding.

  • Model: Manual Jack & 3E BudFlow®

    Weight: 5401 lbs.

    Dimensions: 193" Wide x 93" High x 416" Long

    Towing Dimensions: 77" Wide x 110" High x 445" Long

    The new 3E BudFlow® system allows cattle to see more light, which enhances flow through your handling system, and the redesigned Manual Jack allows you to lift the unit from a single point of operation.

  • Model: Manual Jack & Crowding Tub

    Weight: 4982 lbs.

    Dimensions: 99" Wide x 93" High x 416" Long

    Towing Dimensions: 77" Wide x 110" High x 445" Long

    The redesigned Manual Jack allows you to lift the unit from a single point of operation, and the 180° Crowding Tub provides effective cattle crowding.

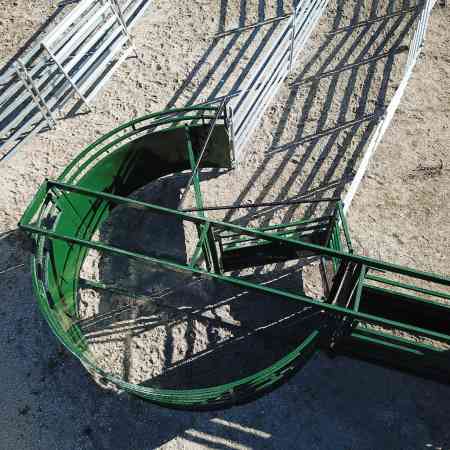

3E System from Above | Arrowquip Cattle Equipment
  • Flooring

    The updated portable handling system features everyone’s favorite rubber floor. The maintenance-free, molded rubber flooring in the Q-Catch 86 Series cattle chute is the quietest flooring system, and provides far greater traction than steel. Supported with 7-gauge metal floor pans with drainage holes from front to back.

  • New 3E System [PATENT-PENDING]

    The new 3E BudFlow® includes an additional panel to the side of the alley, and 30” sheeting on the first panel cattle see upon entering the tub. These low sheeted panels allow cattle to see more light, and give them the impression they are escaping rather than entering an enclosed space. The new 3E System greatly improves cattle entry into the tub, and prevents hold-ups as they go to enter the alley.

Request My Product Demo
Portable Electric Jack Control
  • New Electric Jacks [PATENT-PENDING]

    A completely redesigned jack system works from a single point of operation located immediately behind the chute. The electric jacks feature a 24V system, powered by two maintenance-free 12V Arrowquip AGM batteries connected in series. The new electric jack system can lift and lower the unit in under two minutes.

  • Transportation

    The new portable has been drastically improved for easier transportation of the unit. The collapsible tub measures just 64” wide when folded in, and the improved hitch has an added gusset for additional support, the wheels are easily installed or removed with two pins, and the bracket can be adjusted into three different positions to work with different vehicles. Available with a 2.8333” ball hitch or pin hitch, to add additional flexibility to your towing setup.

Request My Price

Options

  • View of the Cattle Head Holder from the front

    Second-Generation Cattle Head Holder [Patented]

    The head holder allows the handler safe, up-close access by clamping around the cattle’s neck to hold the head immobile. Featuring single lever push-pull operation and never requiring adjustments, the head holder simplifies any procedure necessary.

    [ More information ]
  • Cattle Chute - Sternum Bar

    Sternum Bar

    The sternum bar is intended to keep cattle from going down in the chute, and is easily installed and removed from your squeeze chute with just two bolts.

    [ More information ]
  • Cattle Weigh Platform | Main Image | Arrowquip Cattle Equipment

    Scale Platform

    A new Scale Platform has been custom designed for the 8’ Easy Flow Alley section of the portable handling system. These heavy-duty, 1/4" aluminum plates feature raised sides ensure cattle will not slip off, and allow you to quickly and effectively weigh your cattle as they move through the handling system.

Find my nearest dealer

Contact Arrowquip

Thank you for your interest in Arrowquip! Fill out the short form below and someone from our team will contact you within one business day. In the meantime, you can also check out our FAQ section.

Q-Catch 86 Series Portable Cattle Chute, Alley & Tub Specifications

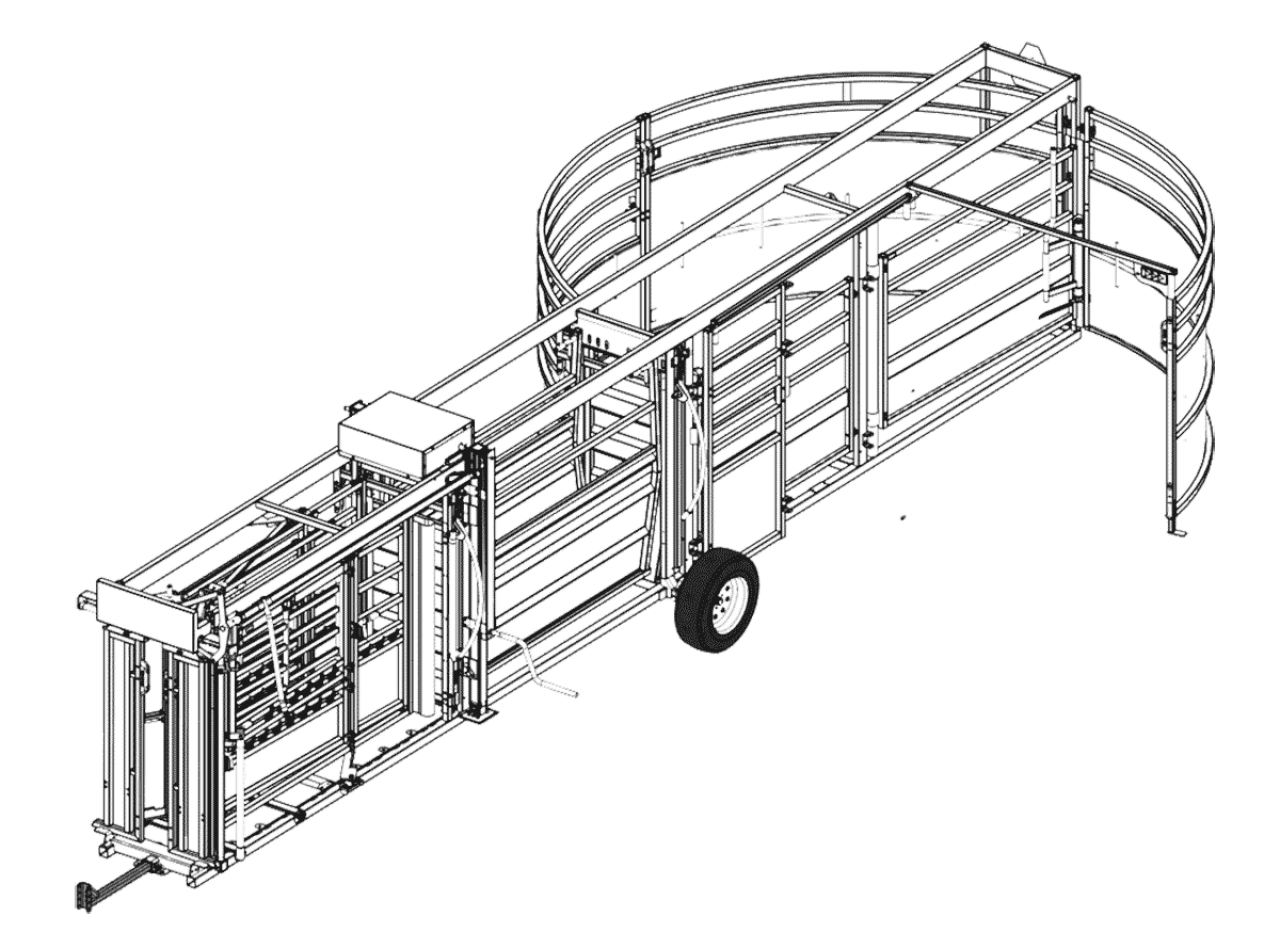

Portable Cattle Chute, Alley & Tub CAD Drawing
  • Head Gate operation handle is user-friendly and can be situated anywhere along the side of the chute
  • Curtain-style head gate opens to a full 30” top to bottom for cattle to exit the chute
  • The Patented Q-Catch head gate locking system features a friction lock with infinite adjustments, and independent locking doors
  • All locking mechanisms are backed by a Lifetime Guarantee
  • Easy to use push-pull squeeze lever
  • Squeeze ranges from 29.5” fully open to 7.75” fully closed
  • The Q-Catch squeeze locking system features a dual friction lock with infinite adjustments
  • Two rows of rump fingers allow you to control livestock for any procedure
  • Nylon rump fingers are engineered to endure high pressure
  • Two rolling doors that can be easily operated from either side of the unit
  • The rolling door running tracks are top-mounted, eliminating the issue of build-up
  • Vet doors open in both directions for a full 180° of maneuverability
  • Improved, low-profile latch ensures the vet cage door will not swing to the inside of the chute when slammed shut
  • Swing-out top and bottom access doors can be used individually or together to access the entire animal
  • Side access panels are removable and can be configured in a variety of positions to suit your operation’s needs
  • 12.75” needle door access
  • Rectangular tubing limits cattle bruising and injury
  • Cradle-shaped 8’ Adjustable Cattle Alley Section ranges from 29.5” to 18” in width
  • The tub folds in on itself so that it is compact for transport
  • Measures just 64” wide when panels are folded in
  • Single piece steel frame has been reinforced with new 2x6 beams that run the length of the unit
  • Choose your model with four different options

Q-Catch 86 Series Portable Cattle Chute, Alley & Tub Reviews

Share your review below

  • 5


    Had a few to choose from, and I’m glad that I choose Arrowquips portable cattle chute.  With me getting older I needed something that was easier to set up, the arrow is by far the easiest that I’ve seen on the market.  Thanks arrow!

    James Rymer
