Cattle Loading Chute
Stationary & Portable Cattle Loading Chute Options to Fit Any Ranch
Product Code: STLCT-AD
Product Features | Product Specifications
4 models available:
Stationary Ramp| Stationary Ramp with Vet Cage| Portable Ramp| Portable Ramp with Vet Cage
Arrowquip's Cattle Loading Chutes make loading your cattle onto a truck or trailer an easy task. The 12' Loading Ramp features adjustable height that ranges from 12" to 51", allowing it to connect seamlessly with a semi truck or cattle trailer of any height. Fully sheeted sides reduce stress and the likelihood of livestock injury, while the 6" vision slot allows handlers to assist in the loading process. The rib-checkered floor plate provides exceptional traction, giving cattle confidence as they transition from chute to trailer. As an essential piece of your handling system, Arrowquip's Cattle Loading Chute are designed for reliable performance time after time.
Fill out this form to receive your Loading Chutes brochure:
[ To get a closer look, click on image below ]
-
![Portable cattle loading chute attached to Q-Catch cattle chute to load out livestock]()
-
![Portable cattle loading chute prepared to load out livestock from handling system]()
-
![Portable cattle loading chute being towed to a new location]()
-
![Cattle loading ramp with rest of system on farm]()
-
![Portable Cattle Loading Chute with palpation cage attached]()
-
![Side view of portable cattle loading chute by Arrowquip]()
-
![Stationary cattle loading chute with palpation cage attached]()
-
![Side view of stationary cattle loading chute by Arrowquip]()
-
![Auto-brake winch on portable cattle loading ramps for added safety]()
-
![The 6" vision slot allows handlers to control the flow of cattle into the truck or trailer without entering the loading chute]()
-
![The formed steel floor on Arrowquip loading ramps provides good traction for cattle to move into a trailer]()
-
![Image of jack system of Arrowquips portable cattle loading chute]()
-
![Close-up of palpation cage installation on cattle loading ramp]()
Product Features
![The formed steel floor on Arrowquip loading ramps provides good traction for cattle to move into a trailer]()

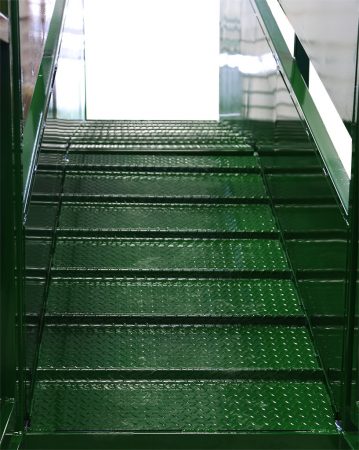

Flooring
Rib-checkered steel flooring provides traction to keep your cattle moving confidently through the loading chute.
![Loading Chute Powdercoat Panel]()
Powder-Coated Steel
Arrowquip loading chutes are primed and powder-coated to reduce wear on the equipment by making it resistant to moisture, chemicals, UV rays, and extreme weather conditions.
![The 6" vision slot allows handlers to control the flow of cattle into the truck or trailer without entering the loading chute]()

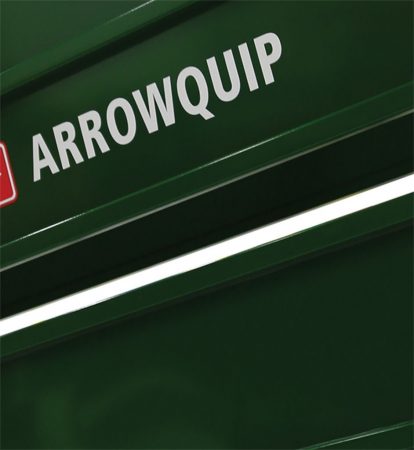

Vision Slot
The 6" vision slot allows you to control cattle movement and assist livestock through the process of loading, eliminating the need for a catwalk!
![Side view of portable cattle loading chute by Arrowquip]()
High-Quality American Steel
Arrowquip's loading chutes are crafted using first-grade primed American Steel. This ensures that your equipment will remain in ideal condition to provide years of reliable use and durability.
See what Others Have to Say
Want more information?
Product Specifications
- 12' loading ramp
- Fully sheeted sides with 6" vision slot
- Adjustable height ranges from 12" to 51"
- Rib-checkered floor plate
- Heavy-duty construction
Available Models
Model: Stationary Ramp
Weight: 1503 lbs.
Dimensions: 43.2" Wide x 119" High x 151.4" Long
The 12' Stationary Ramp is well-suited to stationary handling systems, and is the best option for smaller operations.
Model: Stationary Ramp with Vet Cage
Weight: 1797 lbs.
Dimensions: 43.2" Wide x 119" High x 190.6" Long
The 12' Stationary Ramp with Vet Cage is an ideal option for operations with a system that requires a pass-through, as it allows you to move from one side of your system to the other with ease.
Model: Portable Ramp
Weight: 1881 lbs.
Dimensions: 42.4-75.1" Wide (With Wheels) x 119" High x 151.4" Long
Towing Dimensions: 79.4" Wide (With Wheels) x 132" High x 195.2" Long
The 12' Portable Ramp adds flexibility to your handling setup by allowing you to use your loading ramp in multiple locations.
Model: Portable Ramp with Vet Cage
Weight: 2176 lbs.
Dimensions: 42.4-75.1" Wide (With Wheels) x 119" High x 190.6" Long
Towing Dimensions: 79.4" Wide (With Wheels) x 132" High x 234.3" Long
The 12' Stationary Ramp with Vet Cage is an ideal option for operations with a system that requires a pass-through, as it allows you to move from one side of your system to the other with ease.
Available Add-Ons / Options
![Side view of gates on Palpation Cage for Cattle]()
Cattle Vet Cage
The vet cage acts as a pass-through for the operator, stops the flow of cattle along the alley, and allows the handler safe access into the back of the trailer.
- Vet Cage doors open in both directions for a full 180° of maneuverability
- Low-profile cam-slam latches
- Can be used as a pass-through at any point in the system
- Sheeted doors are caulked for noise reductionWeight: 295 lbs.
[ More Information on the Cattle Vet Cage ]
Dimensions: 40" Wide x 81.4" High x 39.2" Long![Side view of portable cattle loading chute by Arrowquip]()
Make Your Stationary Cattle Loading Chute Portable
Arrowquip Cattle Loading Chutes are designed to make loading cattle an easy task and keep your herd flowing smoothly as they move from chute to trailer. Make your Stationary Loading Chute, portable by adding on the portable option to give you the freedom to take your loading chute anywhere you need it to go with ease.
- The portable option allows you to move the loading chute easily
- Comes with a removable front hitch and drop-down support standsWeight: 1881-2176 lbs. (Depending if vet cage option included, and with portable kit option added)
Dimensions: 80" Wide x 132" High x 196-235" Long (With wheels, depending if vet cage option included)
