Cattle Sorting Alley

Cattle Sorting Alley for Working Systems

Sort or Draft Any Way You Like

Product Code: OWSA
Product Features | Product Specifications

4 models available:
One-Way Sort 30°| One-Way Sort 90°| Two-Way Sort 30°| NEW Cattle Draft Module with Base Sorting Alley

1 Options Available

Get my Quote from Arrowquip

Arrowquip's Cattle Sorting Alleys are designed to suit any operation with a variety of models that can divert cattle in up to three directions. The versatility of the Cattle Sorting Alleys allows you to sort cattle in two ways: within the alley system and after the chute. Post-Chute Drafting is now possible by placing the upgraded Draft Module after the chute. Unlike manually separating livestock in a pen, running cattle through a system to draft is a safer and faster way to send cattle into different yards. The Post-Chute Cattle Draft Module is designed to allow you to control the Cattle Sorting Alley with one hand, and the Head Gate with the other to regulate the flow of cattle. The gates on both sides of the Draft Module easily adjust to accommodate head gate accessories and provide full access to the animal’s head, while also allowing you to pass through the system with ease.

The Cattle Sorting Alleys are designed to with high 4' 14-gauge steel sheeting to eliminate distractions and keep stress levels to a minimum during this high-pressure situation. Spring-loaded doors attached to a pulley system with user-friendly handles allow you to quickly change directions without causing any pauses in cattle flow.

With a variety of models and combinations you can choose from, the possibilities are endless for creating a configuration that best suits your operation's needs. If you need assistance in finding the right solution for your ranch, give our Product Specialists a call and we will be happy to help you!

Fill out this form to receive your Cattle Sorting Alley brochure:

Financing Information

Product Features

  • Sorting alleys left right configuration

    Many Configuration Options

    If you can't find the right solution for your operation's needs, contact one of our Product Specialists by giving us a call, and we'll work with you to find the right solution for your ranch.

  • Sorting alleys spring loaded

    Spring-Loaded Sorting

    Arrowquip's Cattle Sorting Alleys feature spring-loaded doors and easy-to-use pulley ropes to simplify the process of sorting. With an easy tug of a rope, you can guide cattle into your desired direction.

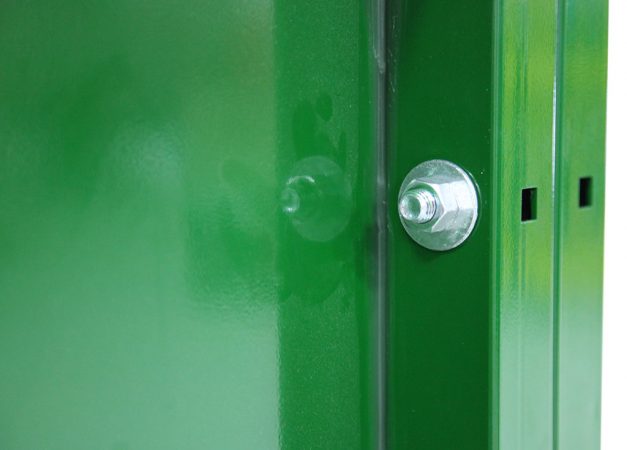

  • High-quality materials and bolts are used on Arrowquip Cattle Sorting Alleys

    4' Sheeted Sides

    Sorting is a high pressure point in your cattle handling system. For this reason, Arrowquip Cattle Sorting Alleys feature 4' sheet metal, limiting the ability of cattle to see the operator and making for an easier sorting process.

  • One-Way 30 Degree Cattle Sorting Alley

    Left or Right-Handed Operation

    Cattle Sorting Alleys can be configured for operation from the left or right-hand side using the same pieces - whichever works best for your operation.

Sort Cattle Your Way

Cattle Draft Module attached to Chute

Pre-Chute Sorting

Pre-chute sorting is commonly used to divert cattle in multiple directions within an alley system. By pairing Arrowquip Cattle Sorting Alleys with Easy Flow Alleys, you can easily create a comprehensive system that leads to different exits such as a chute, loading ramp, or yard. In case a cow that does not need to be worked through the chute enters the system, the Cattle Sorting Alley provides an easy way for it to exit the line without disrupting flow.

Post-Chute Cattle Drafting

Post-chute cattle drafting is a much safer way to sort a mixed group of cattle into separate areas because it does not require you to be in the pen with them. Using the Sorting Alley together with the Cattle Access Gates allows you to manage the flow of livestock easily by running them through an open system and into the Post-Chute Draft Module.

By adding the Draft Module to your sorting system, you can efficiently sort cattle into designated pens after they have been tagged or treated, while staying safely out of harm’s way. Featuring an upgraded design, the Draft Module door width effortlessly adjusts to accommodate head gate accessories and provide full access to the animal’s head. This method keeps cattle stress levels to a minimum while saving time and effort.

Post-Chute Cattle Drafting - Sorting Cattle the Safer Way

See what Others Have to Say
Want more information?

Contact Arrowquip

Product Specifications

  • Spring-loaded doors
  • Pulley system allows for easy diversion
  • Can be configured for left or right-handed operation using the same pieces
  • 4' sheeted sides to eliminate distractions
  • 14-gauge steel sheeting
  • Can be used to sort or divert in up to three directions
  • Built with powder-coated steel and high-quality materials for long-term use and durability
  • Draft Module and Base Sorting Alley allow for Post-Chute Drafting
  • Unlimited possibilities to create a cattle sorting configuration that suits the needs of your operation

Misplaced your manual? Download another one now

Available Models

  • One-Way 30 Degree Cattle Sorting Alley

    Model: One-Way Sort 30°

    Weight: 476 lbs.

    Dimensions: 67" Wide x 82" High x 52" Long

    The One-Way Sort 30° is used to divert cattle off to one side. The 30° angle provides a slight change in direction, allowing for minimum disruption to flow.

  • One-Way 90 Degree Cattle Sorting Alley

    Model: One-Way Sort 90°

    Weight: 525 lbs.

    Dimensions: 68" Wide x 82" High x 52" Long

    The One-Way Sort 90° is used to maximize the space available in a ranch operation.

  • Two-Way 30 Degree Cattle Sorting Alley

    Model: Two-Way Sort 30°

    Weight: 610 lbs.

    Dimensions: 94" Wide x 82" High x 52" Long

    The Two-Way Sort 30° is used to divert cattle off to either the left or righthand side of the main alley. The 30° angle provides a slight change in direction, allowing for minimum disruption to flow.

  • Cattle Draft Module

    Model: NEW Cattle Draft Module with Base Sorting Alley

    Weight: 734 lbs.

    Dimensions: 65-98" Wide x 83" High x 95-100" Long

    Make post-chute cattle sorting easier than ever with the Draft Module. By adding the Draft Module to your sorting system, you can efficiently sort cattle into designated pens after they have been tagged or treated, while staying safely out of harm’s way. Designed to work with Arrowquip cattle chutes, the Draft Module allows a solo rancher to operate the draft with one hand and control the head gate with the other to regulate flow. Featuring an upgraded design, the Draft Module door width effortlessly adjusts to accommodate head gate accessories and provide full access to the animal’s head.

Available Add-Ons / Options

  • Side view of gates on Palpation Cage for Cattle

    Vet Cage

    The Vet Cage connects seamlessly to the Cattle Sorting Races, adding flexibility to your handling setup by providing safe access for your veterinarian and acting as a pass-through for operators.
