Arrowlock 88 Series Portable Cattle Chute, Alley & Tub
Your Ultimate Portable Cattle Chute, Alley, and Tub with the Industry’s Strongest Hold.
Product Code: 8818
Product Features | Product Specifications
With the Arrowlock 88 Series Portable Cattle Chute, Alley, and Tub, you get it all in one compact and convenient package. With various options and add-ons available, you can get a truly unique portable unit that works for your operation.
This portable system features leads with the Arrowlock 88 Series Cattle Squeeze Chute with the never-before-seen Arrowlock Head Gate with a ratchet locking mechanism for a stronger and more secure hold. Followed by 18’ of alleyway, you’re cattle can seamlessly flow through the unit from the cattle tub.
Designed with low-stress cattle handling in mind, this unit is packed with 3E components from front to back so you can ensure your operation moves smoothly, no matter where you are.
Fill out this form to receive your brochure:
[ To get a closer look, click on image below ]
-
![Arrowlock 88 portable cattle chute alley and tub]()
-
![Head on view of the Arrowlock 88 portable chute alley and tub ready for transportation]()
-
![Head on view of the Arrowlock 88 portable chute, alley and tub set up with a head holder]()
-
![Arrowlock 88 portable chute alley and tub in stationary position]()
-
![Side view of the Arrowlock 88 portable chute alley and tub in stationary position]()
-
![Arrowlock 88 portable chute, alley and tub ready for transportation]()
-
![Side view of the Arrowlock 88 portable chute alley and tub]()
-
![Side view of the Arrowlock 88 portable cattle chute alley and tub ready for transportation]()
-
![View towards the tub from the alley of Arrowlock 88 portable cattle handling system]()
-
![View of the alley with closed rolling doors on the Arrowlock 88 portable cattle handling system]()
-
![Rear view of the BudFlow tub on the end of the Arrowlock 88 portable chute alley and tub]()
-
![Side view of the BudFlow tub on the end of the Arrowlock 88 portable chute alley and tub]()
-
![Top joiner bars on the BudFlow tub]()
-
![Gate latch on the BudFlow Tub]()
-
![Back View Collapsible Tub]()
Product Features
![Arrowlock 88 squeeze chute with palpation cage and head holder]()

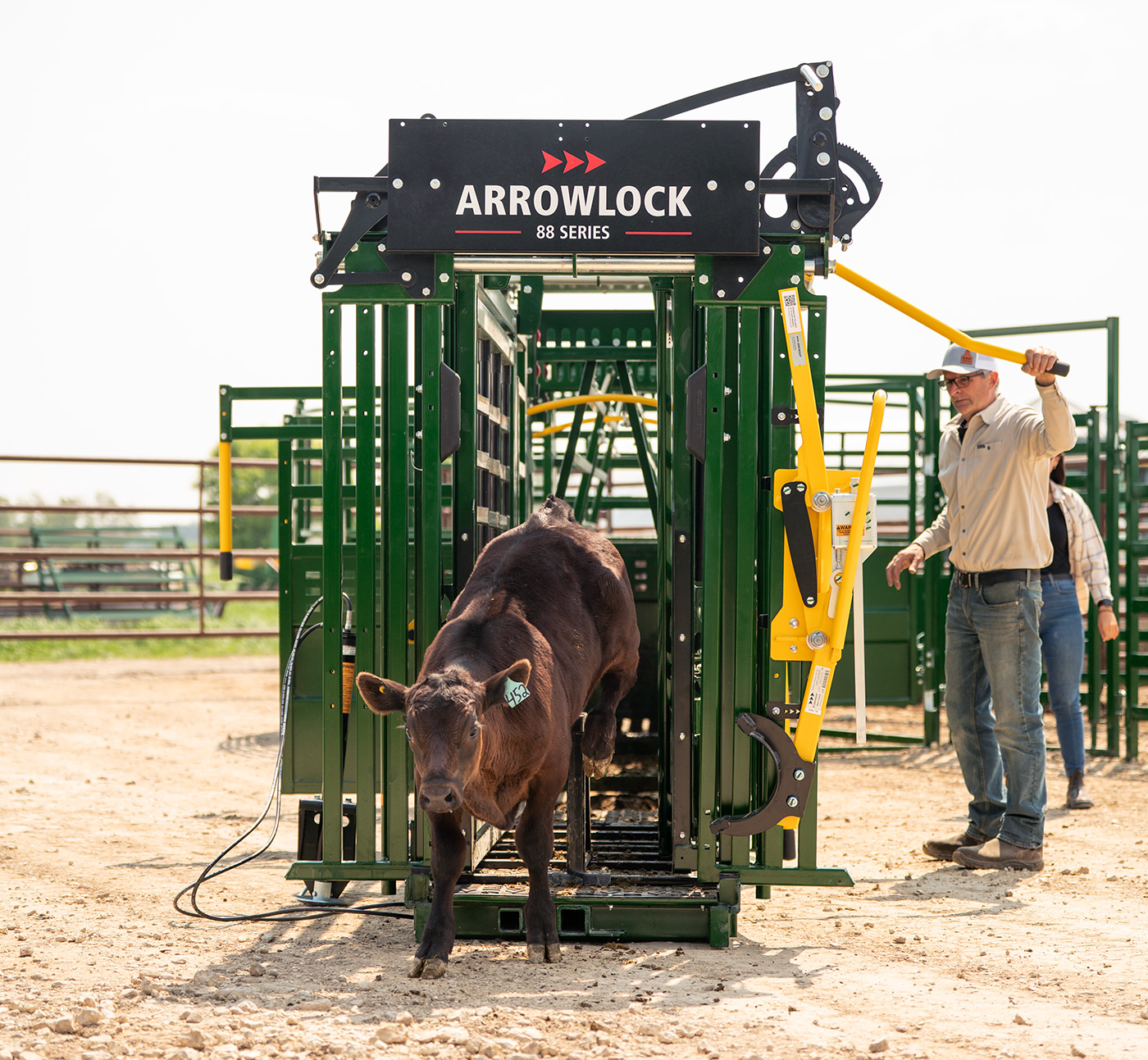

Arrowlock 88 Series Manual Cattle Chute
The new Arrowlock 88 Series Squeeze Chute for cattle sets a new standard for manual cattle chutes. Equipped with a stronger, newly designed head gate and 3E components for low-stress handling, this chute is everything you need.
Now you can process your cattle at record speed, saving you time for things that truly matter.
![Easy flow alley feature]()
18’ Easy Flow Adjustable Cattle Alley
Complete your portable unit with 18’ of adjustable alley. This added length allows you to run more cattle into the alley at once, eliminating the need for stop-and-go handling, which can be challenging – especially for portable equipment.
Each Easy Flow Cattle Alley section comes equipped with removeable panels so you can control what cattle see which helps them flow in the right direction.
![BudFlow tub with the gate open]()
Compact Collapsible Cattle Tub
Goodbye are the days of difficult set up with the all-new cattle tub design. With welded-on joiner bars, setting up and taking down the tub is ultimately fool proof.
With the collapsible design, your unit is more compact than ever when towing. The tub easily folds in on itself, shortening the unit by up to 5’ 8” so you can tow it safely without worrying about taking up too much room.

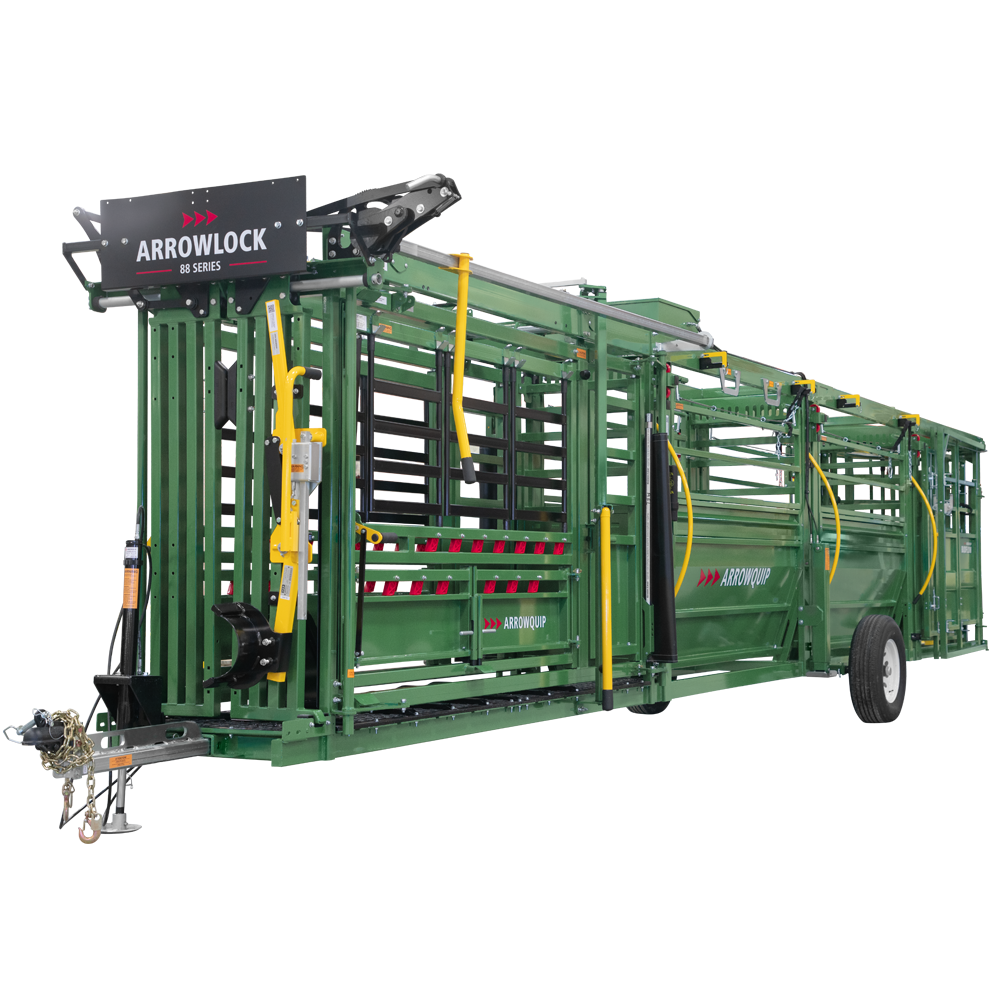

![Arrowlock 88 portable chute alley and tub ready for transportation]()
Your Secure Transport Solution
Never worry about unsafe towing again with the Arrowlock 88 Series Portable Cattle Chute, Alley, and Tub. When you’re finished with your tasks for the day, this unit folds into a compact package for travel so you can safely get to your destination.
Everything is built with heavy-duty North American steel to handle even the bumpiest roads, and the unit features a fully hydraulic jack system so you can set up and tear down in minutes.
See what Others Have to Say
Want more information?
Product Specifications
- 3E Head Gate design uses light to draw cattle into the chute

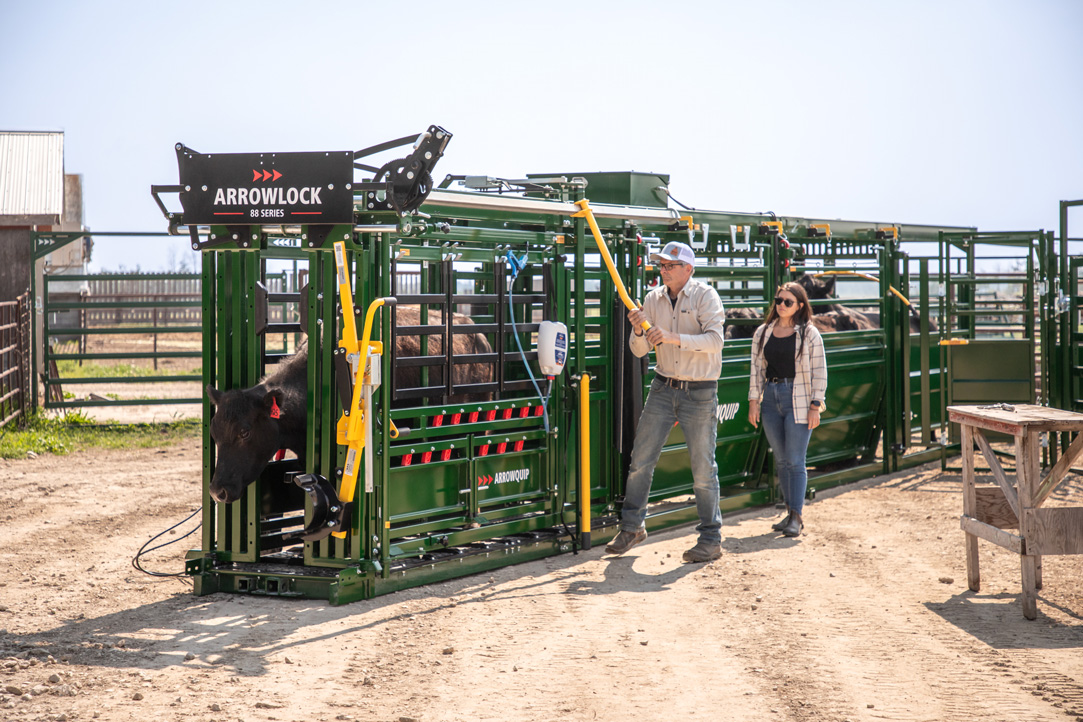

- All-new Arrowlock Head Gate with different settings for different sized livestock
- Head Gate handle can be used at any point alongside the chute
- Complete parallel squeeze that ranges from 31.5” fully open to 7.75” fully closed
- Poly-coated slam latches eliminate metal clanging
- Two rows of poly-composite rump fingers engineered to handle high pressure for safety
- 3E Rolling Door that can be operated from either side of the cattle chute
- Top-mounted rolling door track to eliminate build up
- Six side access panels that are removable and can be configured multiple ways
- True virgin rubber floor for extra traction backed by lifetime guarantee

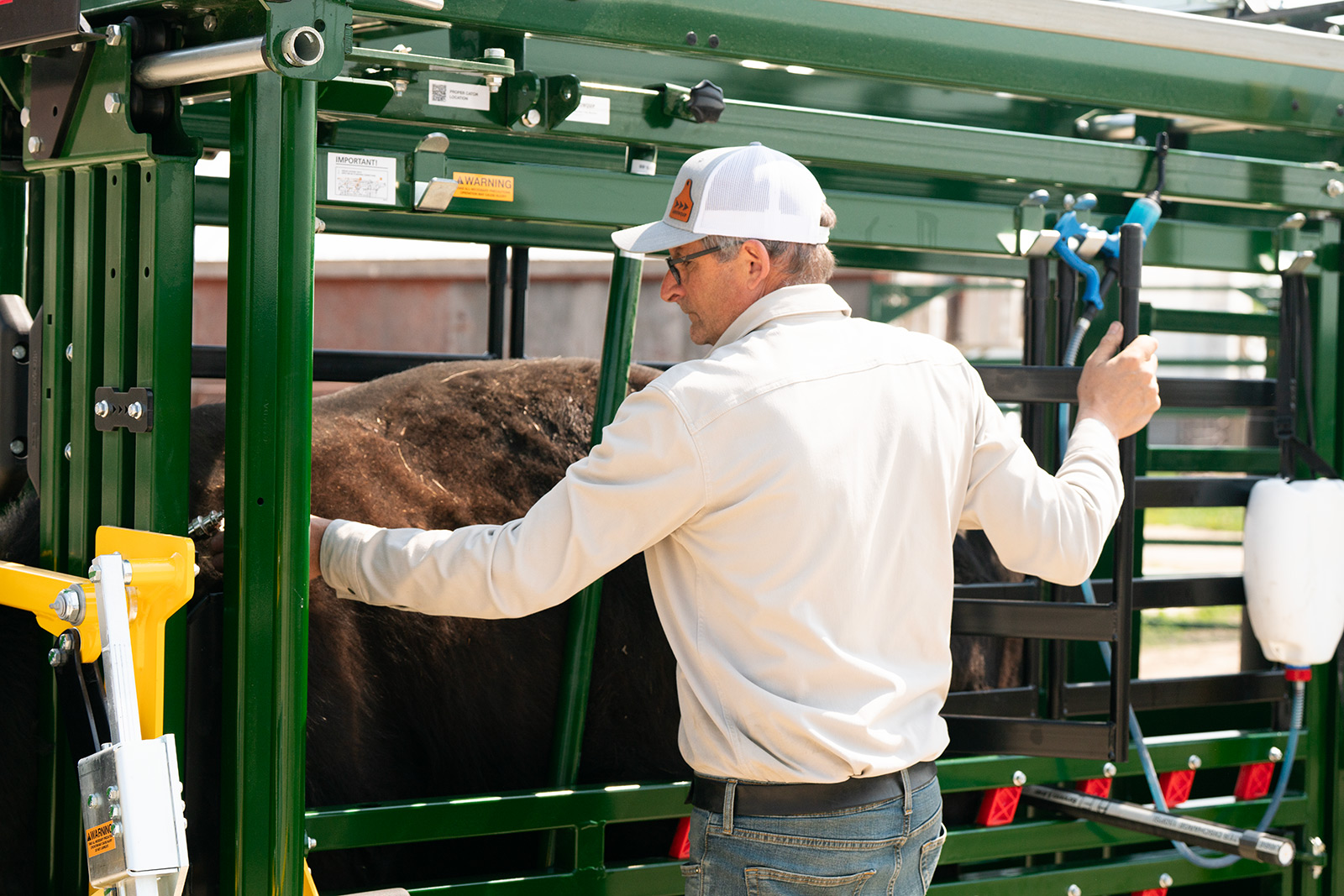

- 6 ½” gap by the neck for needle access
- Easy Flow Cattle Alley can be adjusted from either side
- Removeable panels on the Easy Flow Cattle Alley allow you to control what cattle see
- Tub features welded-on joiner bars for easy set up and tear down
- Cattle Tub folds in on itself for compact transport
Available Add-Ons / Options
![Head holder hero]()
Fourth-Generation Cattle Head Holder
The fourth generation of the Cattle Head Holder is stronger and sturdier than ever before. The head holder easily attaches to your head gate and clamps around the cattle’s neck so you can safely treat your cattle up-close. Featuring a patented single lever push-pull operation, this head restraint simplifies any necessary procedures.
![Sternum bar option]()
Sternum Bar
The Sternum Bar supports the sternum and eliminates space at the bottom of the chute to prevent cattle from laying down. Arrowquip’s sternum bar comes sheeted to reduce hoof traps and can be installed or removed easily with two bolts.
![Balk Gate Option]()
Balk Gate for Cattle
Even if you miss catching your livestock in the head gate, you can still be sure they won’t escape with the all-new Arrowquip Cattle Balk Gate. This will help create a controlled environment so you can treat your cattle with ease.
![Wheel kit option]()
Wheel Kit
Make your chute portable in no time with a wheel kit. You’ll be hitting the road in no time with a quick and easy installation – because we know how precious your time is.
Lug Post Kit
The Lug Post Kit allows you to connect corral panels to your Arrowlock or Powerlock cattle chute. Simply bolt the lug posts onto the head gate of your chute, and you will be able to connect panels or a Draft Module to create a closed handling system.
![Trimming bar option]()
Calf Restrainer Bar
The Calf Restrainer Bar keeps your cattle safely contained when both side doors are opened for hoof trimming. This simple and effective option can be adjusted to accommodate cattle of different sizes, and is installed with just four bolts.
![Heavy-duty aluminum cattle weigh platform]()
Weigh Platform Kit
The Easy Flow Alley Weigh Platform Kit can be added to an 8' Easy Flow Alley section to provide fast, accurate weigh-ins with the addition of load bars. Alley side panels can be lifted and held in place with the slam latches, allowing the operator to slide the platform underneath for easy installation. Features heavy-duty, 1/4" aluminum plate that provides excellent traction for hooves.
![Cattle Scale Mount Plates for Tru-Test and Gallagher load bars]()
Scale Mount Plates
Scale Mount Plates can pair with the Easy Flow Alley Weigh Platform Kit. Designed to support 23" alleyway load bars. Options for Gallagher or Tru-Test load bars are available.
