Q-Catch 74 Series Portable Squeeze Chute, Alley & Tub

Q-Catch 74 Series portable squeeze chute alley and tub in a field

The most compact portable squeeze chute, alley and tub the world has ever seen

Weight: 4167 lbs.

Dimensions: 93” Wide x 96” High x 404” Long

Product Code: 7408

Full Video Transcript

Q-Catch 74 Series Portable Squeeze Chute, Alley & Tub Video Transcript

At Arrowquip, we believe in innovative design and engineering, while taking care of the rancher and the ranch. Introducing Arrowquip’s NEW Portable Q-Catch 74 Series Squeeze Chute, Alley, and Tub. With heavy-duty construction and the latest Arrowquip innovations, this fully portable system is everything you need to take the next step towards a more efficient operation. When towing, our patented frame makes this full-size working system just 29.5 feet long, and you can fold the collapsible tub down to just 3 feet wide. With an industry-grade adjustable hitch, you get a durable, compact package that tows like a dream. You can go off the road and through the roughest terrain to head straight to your cattle. And when every second counts, this portable system can go from road-ready to ready-for-work in only four and a half minutes. At the front of the system is the NEW Q-Catch 74 Series Squeeze Chute. With the 3E System, you can use cattle behavior to your advantage, with cattle easily entering the chute by seeing light through the head gate, even when closed. The redesigned Q-Catch Head Gate includes a push-to close pull-to-open handle that can be used anywhere alongside the chute. And the squeeze goes from 29.5 inches down to just 7.75 inches, so you can secure any size of cattle safely, every time. When access to the animal is important, you need all the access points to get the job done right. This system comes with a NEW needle access door with drop down needle access bar, along with split side access doors, removable inspection panels, AND a full-size vet cage. The Easy Flow Alley is an essential part of your portable unit, and we’ve upgraded it with user-friendly features that can make all the difference. The new adjustment cables allow you to easily adjust both sides of the alley from one side, while the new safety latches keep the sides from dropping down unintentionally. Cattle will flow into your alley quickly and easily, every time with the 8’ Crowding Tub at the rear-end of the portable unit. Our patented portable system frame makes folding and unfolding the tub quick and easy, while also reducing foot traps. With an incorporated crowd gate lock, cattle have no other place to go but into the alley, allowing you to guide cattle into the system safely. With Arrowquip, you’re guaranteed maximum efficiency, resulting in higher profits, and more time to do the things that truly matter to you and your family. This is better, safer, more efficient cattle handling and is your next step to managing your cattle the way you’ve always wanted. This is the NEW Portable Q-Catch 74 Series Cattle Chute, Alley, and Tub. The bar has been set. Visit arrowquip.com to learn more.

Hide Transcript Text

The Q-Catch 74 Series Portable Squeeze Chute, Alley and Tub is a full working system built for efficient cattle handling in any pasture. Featuring the Q-Catch 74 Series cattle chute, an 8’ Easy Flow adjustable cattle alley section, and an 8’ crowding tub, this portable cattle handling system provides you with all that you need to get the job done anywhere, anytime.

The enhanced frame and improved portability are key items that make the Q-Catch 74 Series stand apart from the competition. With an adjustable hitch, two manual jacks, and an improved collapsible tub design, setting up this portable handling system can be done in just five minutes.

Who says you have to compromise features for portability? With the Q-Catch 74 Series Portable Squeeze Chute, Alley and Tub, you can have it all and get the work done faster, so you can get back to what truly matters.

Apply for Financing

Get Your Portable Q-Catch 74 Series Brochure

3E Q-Catch Cattle Head Gate [PATENT-PENDING]
The new 3E Q-Catch Cattle Head Gate features a new look that allows cattle to see light through the head gate even when closed. This new design works with cattle psychology to show a way out past the cattle head gate using a unique barred style, encouraging cattle to enter the squeeze chute with ease.
Complete Cattle Handling System
From tub to chute, this portable cattle handling system is designed to equip you with all that you need to work cattle anywhere. Moving livestock into the system is easy with the 8’ crowding tub at the rear end, while the 8’ Easy Flow adjustable cattle alley is cradle-shaped to keep livestock from turning around. With the Q-Catch 74 Series cattle squeeze chute at the front of the unit, you gain complete control and access to the entire animal.

Request My Product Demo

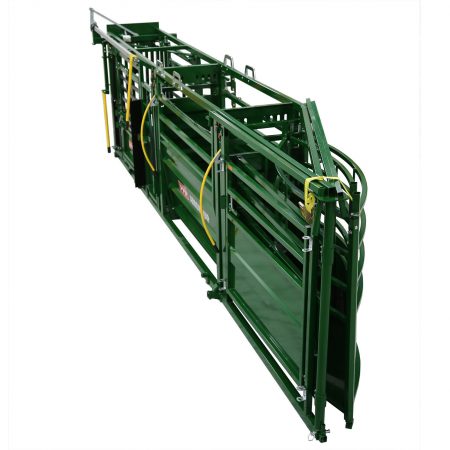

Portable squeeze chute folded for towing

Portable System Frame [PATENT-PENDING]
The Arrowquip R&D Team has spent hundreds of hours enhancing the portable system frame to make it as easy to transport and set up as possible. Featuring a new portable chassis that allows the 8’ crowding tub to fold in on itself, this portable full cattle handling system is only 29.5’ long (from the hitch to the end of the tub) and 6.75’ wide (from wheel to wheel) when towed. Additionally, the redesigned system frame eliminates tripping hazards in the cattle crowding tub.

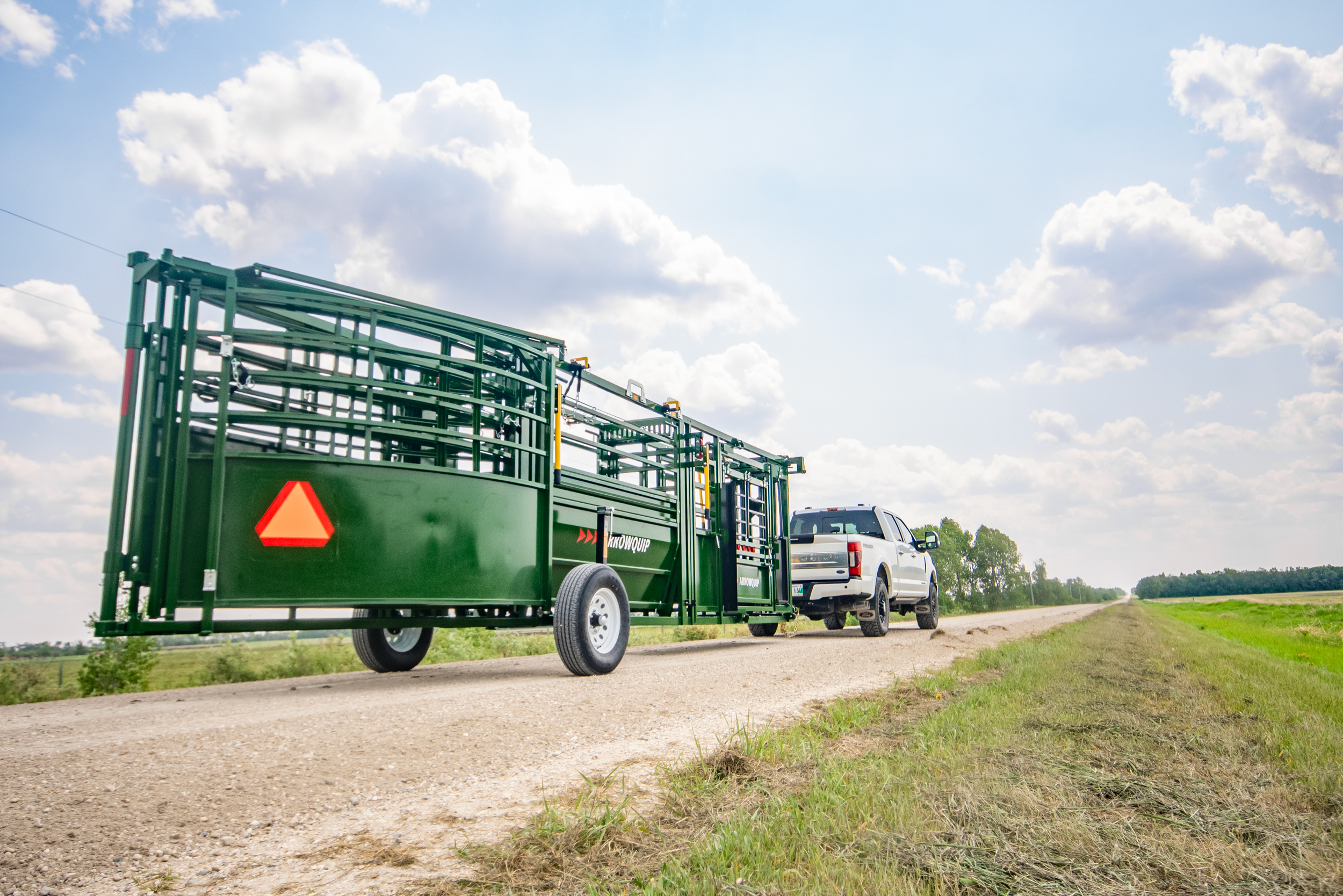

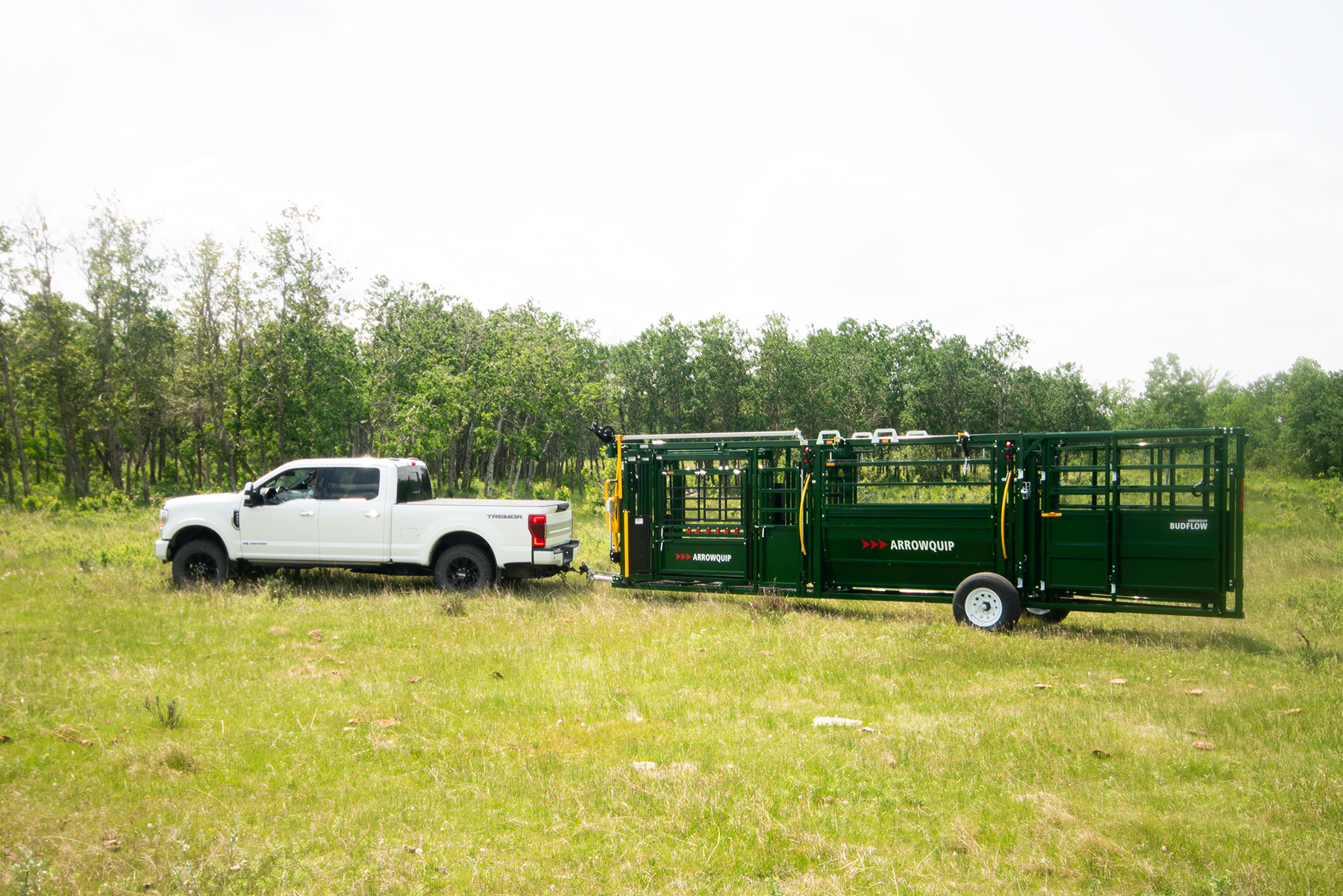

Transportation
For even easier transportation, the Q-Catch 74 Series Portable Squeeze Chute, Alley and Tub comes with an improved adjustable hitch including an added gusset for additional support. When setting up for working or towing, the two wheels are easily installed or removed with two pins, while the bracket can be adjusted to work with different vehicles. Available with a 2.3125” ball hitch or pin hitch.

Request My Price

Goes from towing to ready to work in just six minutes.
World's most compact portable handling system ever made.
Towing your handling system has never been so easy.
One jack that moves from the front to the back for set up.
Versatility and ease of use in one package
Worlds most compact portable cattle handling system.
Complete with our new 3E head gate.
Removing the tires and the hitch is a quick and easy
Measures only 354" when towing
Our patented chassis and folding tub keeps things easy.
8' collapsible tub folds in to be just 3' wide.
The patented design make this portable the industries easiest
The 8' crowding tub keeps cattle moving through the system.
The patented design eliminates tripping hazards in the crowding tub.
404" long when working cattle.
Expanding from 354" long to 404" once set up
Our cattle tub, alley and 3E head gate guarantee consistent cattle flow.
Complete the Easy Flow Cattle alley, this is versatility at its best.
The portable system quickly unfolds to include a 8' Cattle Crowding Tub
Cattle flow easily from the cattle tub through to the squeeze chute.
This is the easiest way to upgrade the portability of your ranch.
Measures 96" wide when set up
Cattle see light from the back of the tub all the way past the chute.
Easy Flow Cattle Alley squeezes down to 18"
The tub straps down securely for transport
Your able to adjust both side of the alley from just one side.
You'll never tow another cattle handling system as easy as this one.
Our compact design makes tight spaces a thing of the past.
Working cattle in a portable system is safe, and efficient.
Measuring 404" long when fully set up.
No matter the size of the cattle, there is no adjustment needed.
Can easily handle you biggest and baddest bulls as well.
Comes complete with our world renowned Q-Catch Head Gate.
The Q-Catch squeeze ranges from 29.5" to 7.75" to manage cows of any size
There is now where you can't take your new portable system.
If needed, the Easy Flow alley comes complete with a drop down emergency gate.
The portable system that doesn't ask you to compromise....anything.

Options

Third-Generation Cattle Head Holder [Patented]
The NEW 3rd Gen Q-Catch Cattle Head Holder is the safest option for any procedure that requires access to the animal’s head. The head holder clamps down around the neck, keeping the head immobile to perform necessary tasks. Featuring a patented sing lever push-pull operation and no secondary lock, the head holder is known throughout the industry to be a game-changer in cattle control.
[ More Information ]
Sternum Bar
The sternum bar prevents cattle from laying down in the chute, preventing delays that can be caused by downed cattle. The new model is sheeted to eliminate hoof traps and can be installed or removed with just two bolts.
Trimming Bar
The trimming bar is designed to keep cattle contained when it is necessary to open the entire side of the chute, specifically for trimming. It can be adjusted into different positions to work with cattle of varying sizes, and is easily installed or removed with just two bolts.
Chin Bar
The new chin bar is a basic head restraint that raises the animal’s head to give you better control and access. It is a simplified version of our famous head holder, and shares the same locking mechanism that provides infinite adjustments.
Scale Platform
The Scale Platform is custom designed for the 8’ Adjustable Easy Flow Alley section of the portable handling system. For easy installation, the side panels can be lifted and held in place with the slam latches, allowing the operator to slide the Scale Platform underneath. These heavy-duty, 1/4" aluminum plates feature raised sides ensure cattle will not slip off, and allow you to quickly and effectively weigh your cattle as they move through the handling system.
Scale Mount Plates
Scale Mount Plates designed to support 23" alleyway load bars when using the Arrowquip Scale Platform. Designed to work with Gallagher and Tru-Test load bars.
