Portable Cattle Tub & Alley
A Portable cattle tub and alley built for capacity and efficiency
Product Code: PTA-L
Product Features | Product Specifications
2 models available:
3E BudFlow®| Crowding Tub
Arrowquip's Portable Cattle Tub And Alley has been upgraded to provide you with more capacity and features to make working cattle simpler, no matter where you are. Featuring the NEW enhanced portable system frame found in all Arrowquip portable models, the 16-foot diameter collapsible tub folds in half, giving you a compact portable handling system that is safe and easy to tow. With an adjustable hitch, thick structural beams, and a new single-point jacking system, setting up and taking down this portable unit can be done in under 5 minutes, saving you time and making your life easier.
Fill out this form to receive your Portable Cattle Alley & Tub brochure:
[ To get a closer look, click on image below ]
-
![Front view of the portable cattle tub and alley]()
-
![Portable Cattle Tub and Two Cattle Alleys on Wheels]()
-
![Side profile of portable Cattle Tub and Alley set up and ready to work cattle]()
-
![Side profile of portable Cattle Tub and Alley set up and ready for use]()
-
![Top view of the cattle crowding tub prepared for cattle]()
-

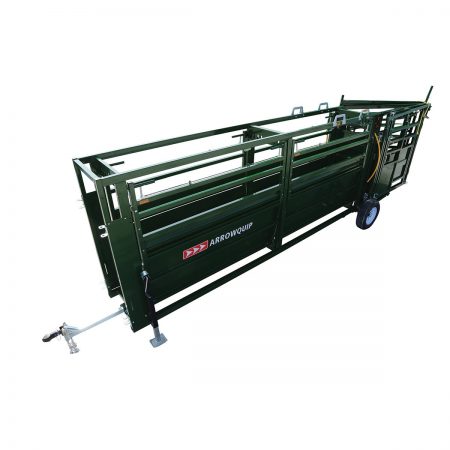

![Portable cattle tub and alley collapsed and ready for transport]()
-

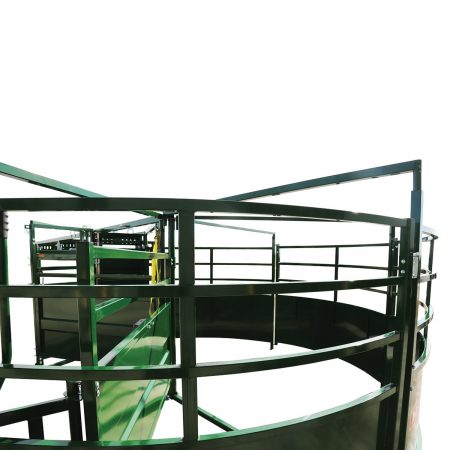

![3E Low Sheeted Panels on the Portable BudFlow Cattle Tub]()
-
![Cables allow handlers to adjust both sides of the alley from a single point with ease]()
-

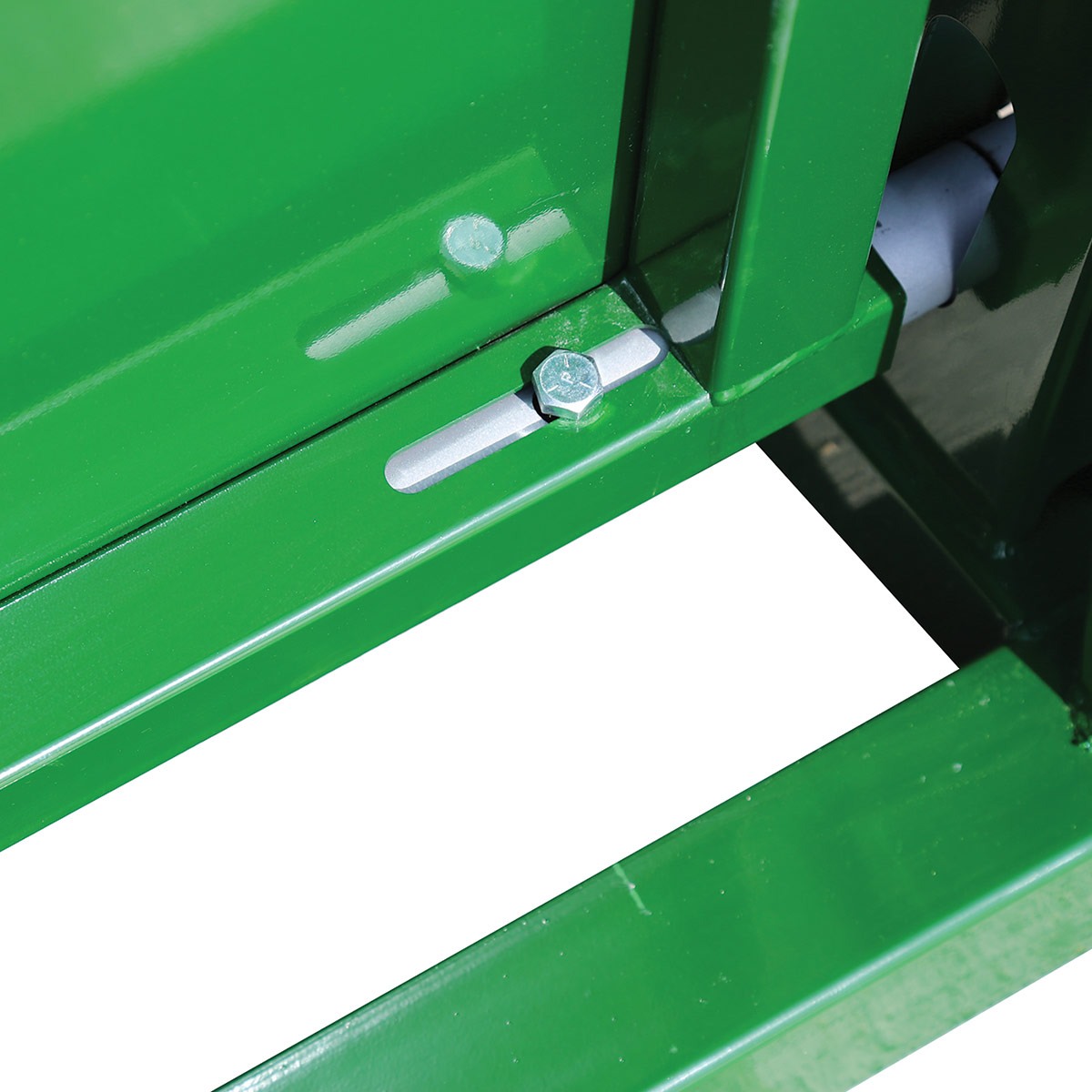

![Cattle scale platform can be easily installed by lifting the panels with the scale platform slot]()
-
![View from the cattle tub through a narrowed Easy Flow Cattle Alley]()
The wife and I load 5 head in the tub work those and get another 5. It is extremely easy for two people. Everything works as it should and everyone gets along. It's been great for the relationship and I don't regret the purchase at all.
- Beau Thompson, Rancher -
Product Features
![3E Low Sheeted Panels on the Portable BudFlow Cattle Tub]()
New 3E System [PATENT-PENDING]
The new 3E BudFlow® system allows cattle to see more light, and gives them the impression they are escaping rather than entering an enclosed space. The new 3E System greatly improves cattle entry into the tub, and prevents hold-ups as they go to enter the alley. With the BudFlow tub upgrade, you also add functionality to your system by being able to connect other components such as alleys and a loading chute to the 3E door.
![Easy Flow adjustable cattle alley with two blinders on one side]()
Easy Flow Cattle Alleys
The new and improved Easy Flow Adjustable Cattle Alley now comes with two removable panels that can be placed in multiple positions to control what cattle see, and how they move through your handling system. The Easy Flow Alleys narrow down to the center and are cradle-shaped to ensure that your cattle keep moving forward and prevent turning.
![Transport of Portable Tub & Alley | Arrowquip Cattle Equipment]()
Designed to Move
The new portable has an improved hitch that features an added gusset for support, the wheels are easily installed with two pins, and a bracket can be adjusted into three different positions to work with different vehicles. Available with a 2 .8" ball hitch or pin hitch, so you can choose the right option for your towing setup.
![Portable cattle tub and alley collapsed and ready for transport]()
Most Compact Towing Package Ever
The new Portable Cattle Tub and Alley has been upgraded with our most compact towing package ever. Measuring just under 8' long, the system is easier than ever to tow.
See what Others Have to Say
Want more information?
Product Specifications
- Two cradle-shaped 8' Adjustable Cattle Alley Sections range from 29.5"to 18" in width
- Both sides of the Easy Flow Alley can be adjusted from one side
- Easy Flow Adjustable Alleys ensure there is no awkward transition for cattle when moving from alley to chute
- Both side panels drop down fully, allowing the handler to access the animal in case of emergency
- Safety latches on the Easy Flow Alley side panels add security and control when adjusting, and ensure the sides will not drop accidentally
- The tub folds in on itself so that it is compact for transport
- Tub measures just 44" wide when panels are folded in
- Easy Flow alleys come with removable panels so you can control what cattle see in the alleyway
- Single piece steel frame has been reinforced with new 2x6 beams that run the length of the unit
Available Models
Model: 3E BudFlow®
Weight: 3400 lbs.
Dimensions: 101" w x 85" h x 397" l (When set up.)
Towing Dimensions: 70" w x 98" h x 336" l (With wheels and hitch.)
The new 3E BudFlow® system allows cattle to see more light, which enhances flow through your handling system. The 3E BudFlow tub is designed to work with natural cattle behaviour by providing them with extra space to prevent stops and encourage cattle to move into the alley seamlessly.
Model: Crowding Tub
Weight: 3038 lbs.
Dimensions: 180" w x 85" h x 397" l
Towing Dimensions: 70" w x 98" h x 334" l
The 180° Crowding Tub provides effective cattle movement from the tub into the alley. The sweep gate features a lock out to keep it from moving back towards the handler when crowding cattle into the alley.
