Q-Catch 87 Series Portable Cattle Chute, Alley and Tub

Portable cattle chute, alley and tub in a field

Fully portable cattle handling system you can take anywhere

4 models available:
3E BudFlow® [18' Alley]| Crowding Tub [18' Alley]| 3E BudFlow® [8' Alley]| Crowding Tub [8' Alley]

View model details below

Product Code: 8718

* Head Holder Optional

The NEW Q-Catch 87 Series portable cattle chute, alley and tub features Arrowquip's signature cattle handling components in a compact and convenient portable unit. Available in multiple options, the new lineup of Q-Catch 87 Series portable cattle handling equipment provides ranchers with the flexibility to get the job done, no matter where it needs to happen.

Taking portable cattle handling to the next level, Arrowquip has introduced a new option, their very first FULL portable system. This new model features an 18' alleyway to improve the way cattle flow through the system. Combining these two cradle-shaped Easy Flow Alley sections with the low-sheeted tub and Q-Catch 87 Series cattle chute that feature our patent-pending 3E components will ensure cattle will flow through your system with ease.

Apply for Financing

Get Your Q-Catch 87 Series Portable Cattle Chute, Alley & Tub Brochure

Choose your Portable Cattle Chute, Alley & Tub model

  • Model: 3E BudFlow® [18' Alley]

    Weight: 6510 - 6610 lbs.

    Dimensions: 177" Wide x 105" High x 525" Long (When set up.)

    Towing Dimensions: 75" Wide x 115" High x 460" Long (With wheels and hitch.)

  • Model: Crowding Tub [18' Alley]

    Weight: 6150 - 6250 lbs.

    Dimensions: 115" Wide x 105" High x 525" Long (When set up.)

    Towing Dimensions: 75" Wide x 115" High x 460" Long (With wheels and hitch.)

  • Model: 3E BudFlow® [8' Alley]

    Weight: 5430 - 5530 lbs.

    Dimensions: 177" Wide x 98" High x 425" Long (When set up.)

    Towing Dimensions: 75" Wide x 108" High x 355" Long (With wheels and hitch.)

  • Model: Crowding Tub [8' Alley]

    Weight: 5070 - 5170 lbs.

    Dimensions: 115" Wide x 98" High x 425" Long (When set up.)

    Towing Dimensions: 75" Wide x 108" High x 355" Long (With wheels and hitch.)

Looking at the top of the Portable cattle chute, alley and tub with 18 feet of cattle alley

  • Engineered For Transport

    Towing is one of the biggest differences in the new portable cattle handling system. The entire unit folds up into a compact and secure package for travel, ensuring your equipment will get to your destination safely. The enhanced frame features 2” x 6” beams on the top, and 3” x 3” beams on the bottom for structural integrity, and setup when you get to your location only takes a matter of minutes with our electric jack system.

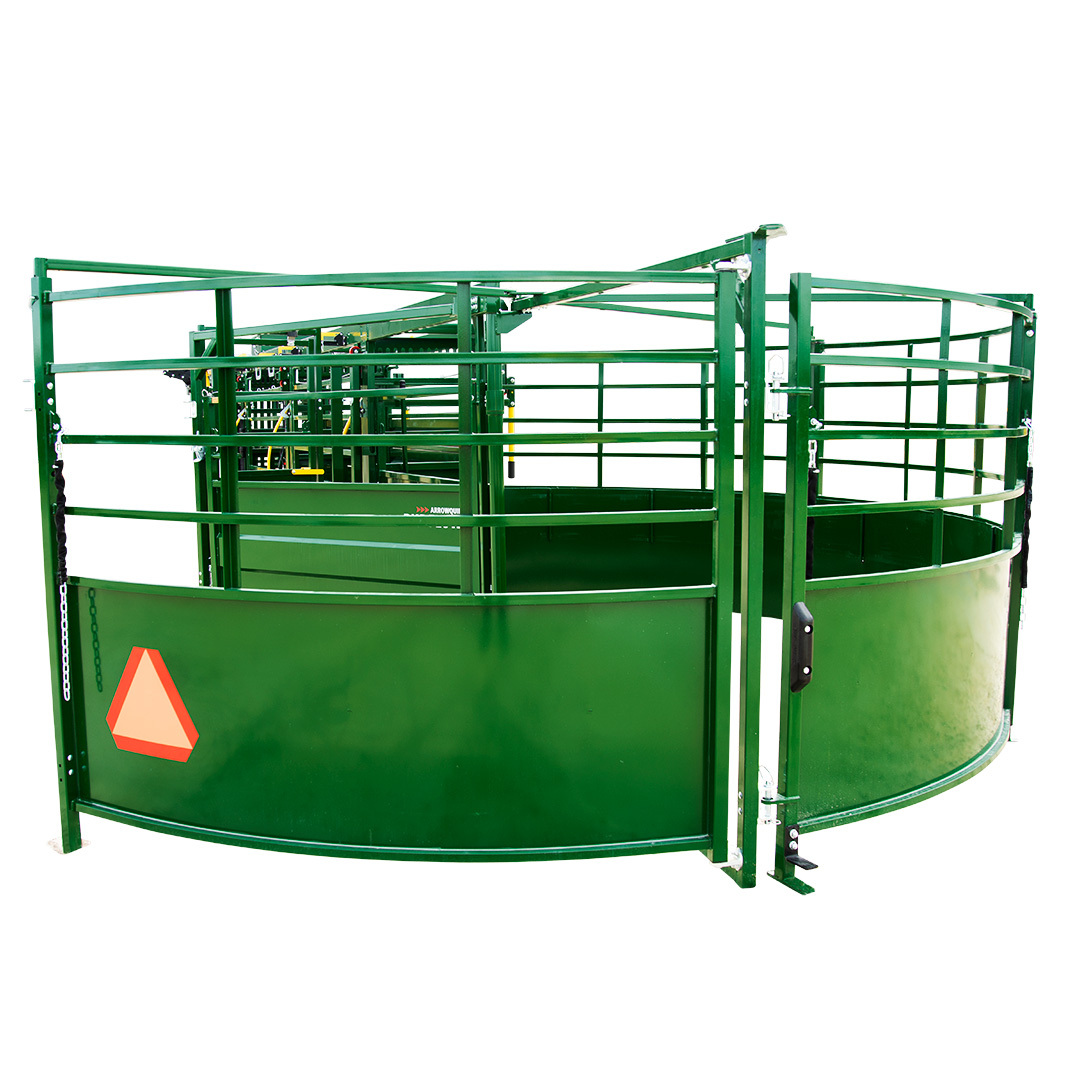

  • Even More Compact Collapsible Tub

    The collapsible tub on all Arrowquip portable cattle handling units has been completely redesigned to be truly compact. The tub is folded in a way that shortens the unit by up to 5’ 8” when towing. This brilliant engineering has made the NEW 18’ alley portable unit the same length as the previous Q-Catch 86 Series Portable Cattle Chute, 8’ Alley & Tub model was!

Request My Product Demo

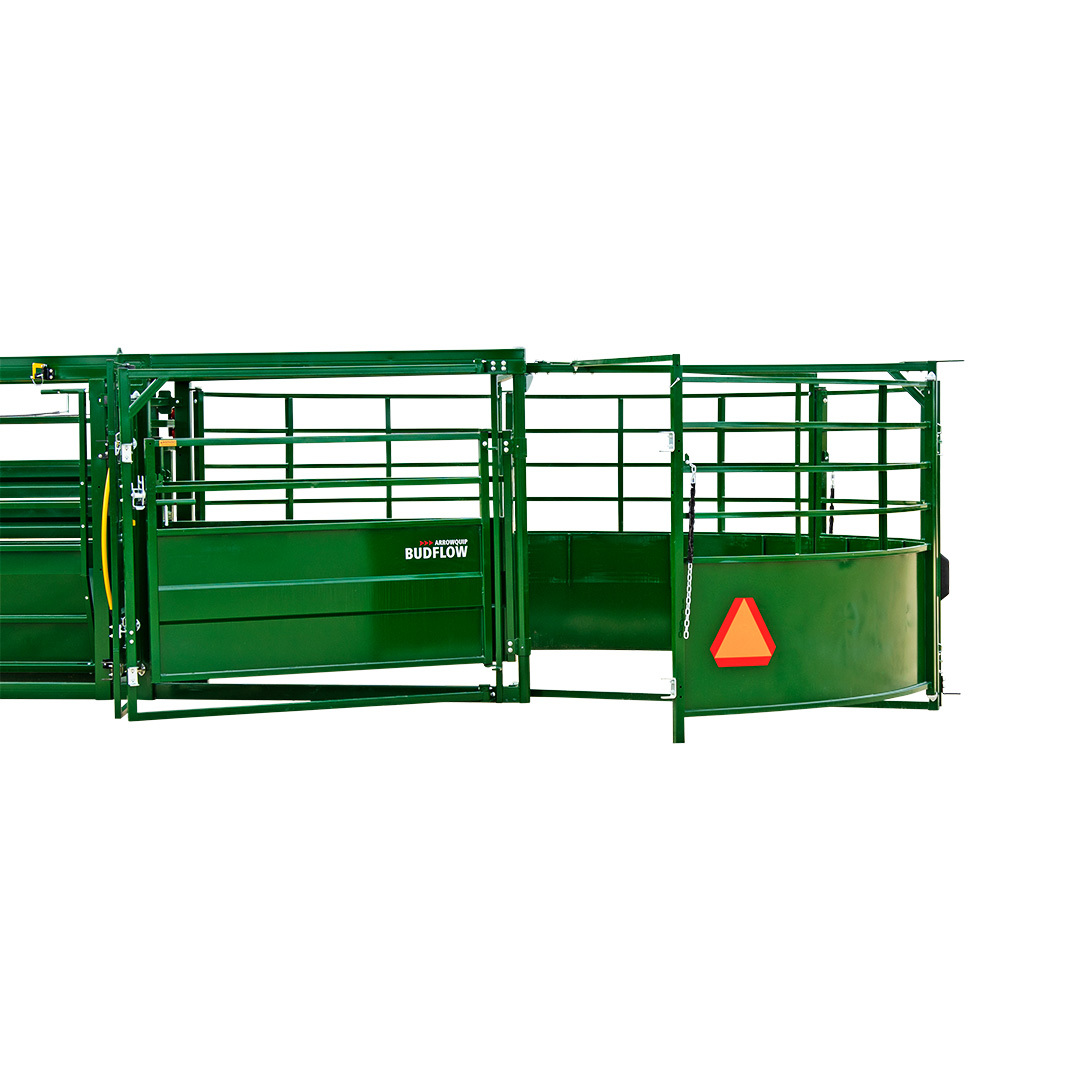

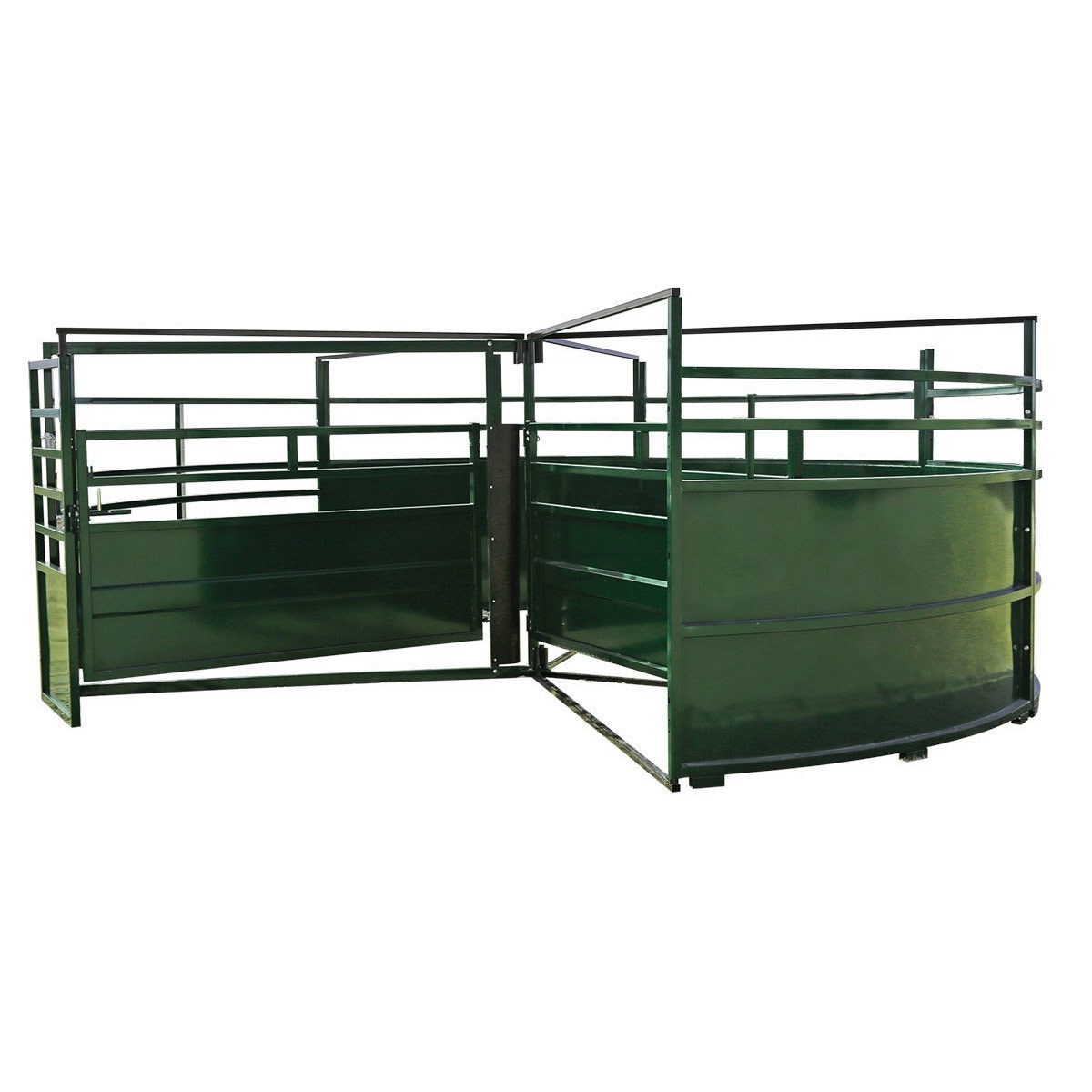

3E BudFlow® vs Crowding

The new 3E BudFlow® system allows cattle to see more light, which enhances flow through your handling system. The 3E BudFlow tub is designed to work with natural cattle behaviour by providing them with extra space to prevent stops and encourage cattle to move into the alley seamlessly.

The 180° Crowding Tub provides effective cattle movement from the tub into the alley. The sweep gate features a lock out to keep it from moving back towards the handler when crowding cattle into the alley.

More Information on Cattle Tubs

Q-Catch 87 Series cattle chute side view

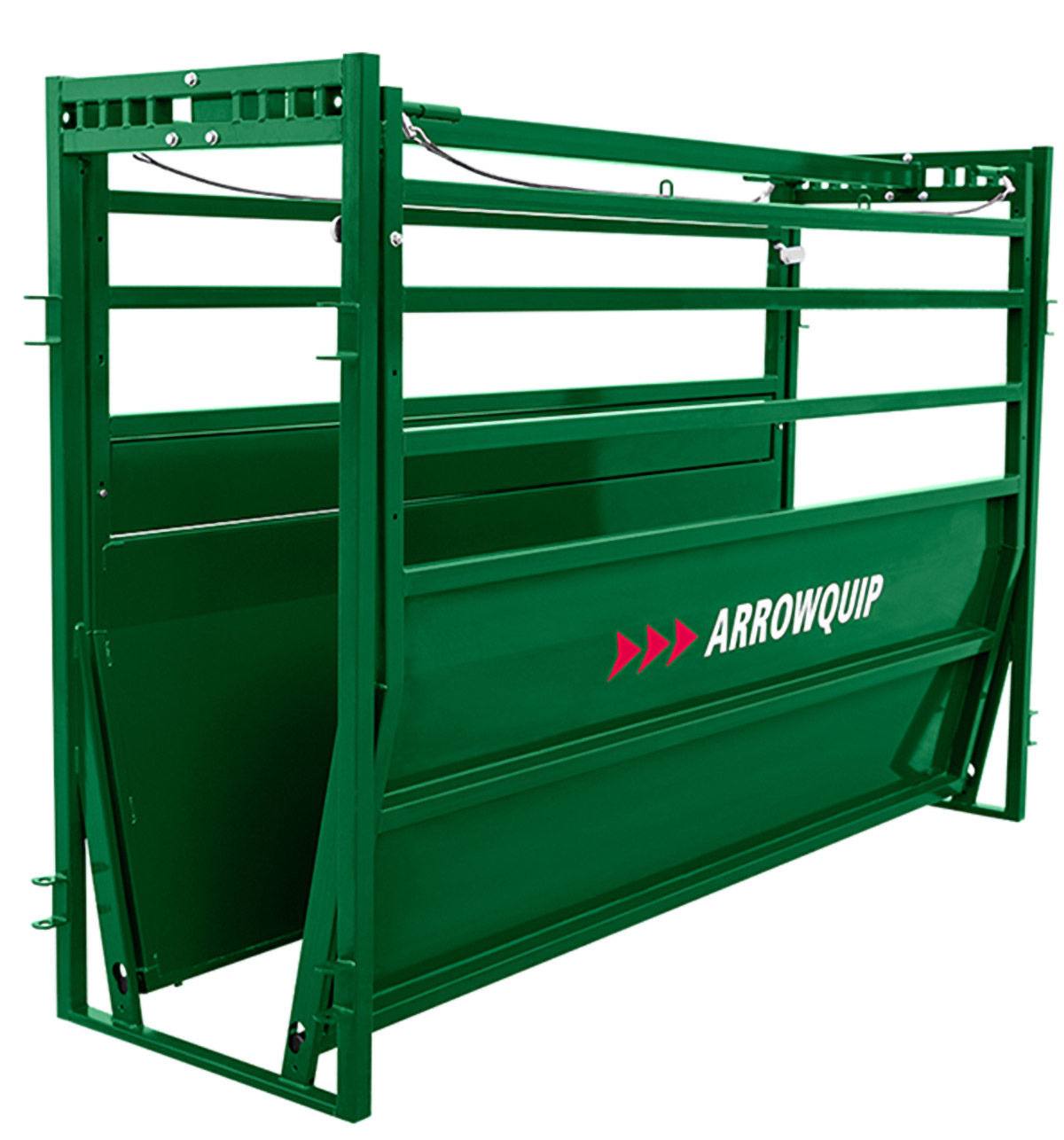

  • NEW 18' Easy Flow Alley

    The NEW 18’ Alley section turns your portable cattle chute, alley and tub into a fully portable handling system. By providing enough space for you to move all cattle out of the tub and into the alley, it provides the capacity you need to move your cattle though the system without having to stop and start the flow of cattle repeatedly.

    The Easy Flow Cattle Alley sections are equipped with our patent-pending 3E technology which helps to draw cattle in the right direction using light. Two removable panels on each alley section can be moved into multiple positions to control what cattle see, giving you enhanced control of cattle movement.

    Also available in an 8’ alley model.

  • Q-Catch 87 Series Cattle Chute

    You'll have maximum control, safety, and efficiency even when you’re working cattle alone with the NEW Q-Catch 87 Series at the front of the system. The world's quietest manual cattle chute is at your fingertips, so you're guaranteed a quiet cattle handling experience anytime, anywhere.

Request My Price
  • Portable cattle chute, alley and tub with 18 feet of alley from the side Portable cattle handling system ready to tow
  • Portable cattle chute, alley and tub with 18 feet of alley from the side Portable cattle handling system side view on wheels

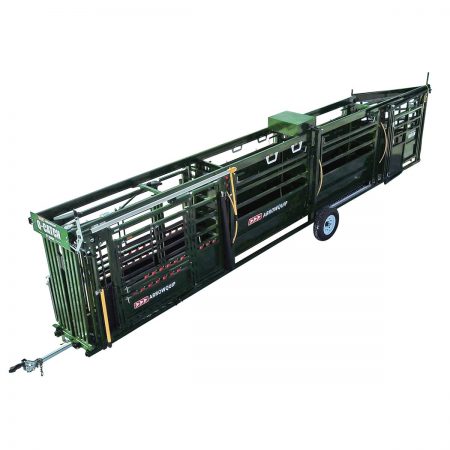

  • 8178 side hero Cattle chute, alley, and tub on wheels
  • Portable cattle chute, alley and tub with 18 feet of alley full side The most compact full portable cattle handling system ever
  • Tub folded in for transport on the Portable cattle chute, alley and tub Improved collapsible tub folds into a sleek tow package
  • Looking at the top of the Portable cattle chute, alley and tub with 18 feet of cattle alley New 87 Series 18' Alley model is the same length as Q-Catch 86 Series 8' Alley model

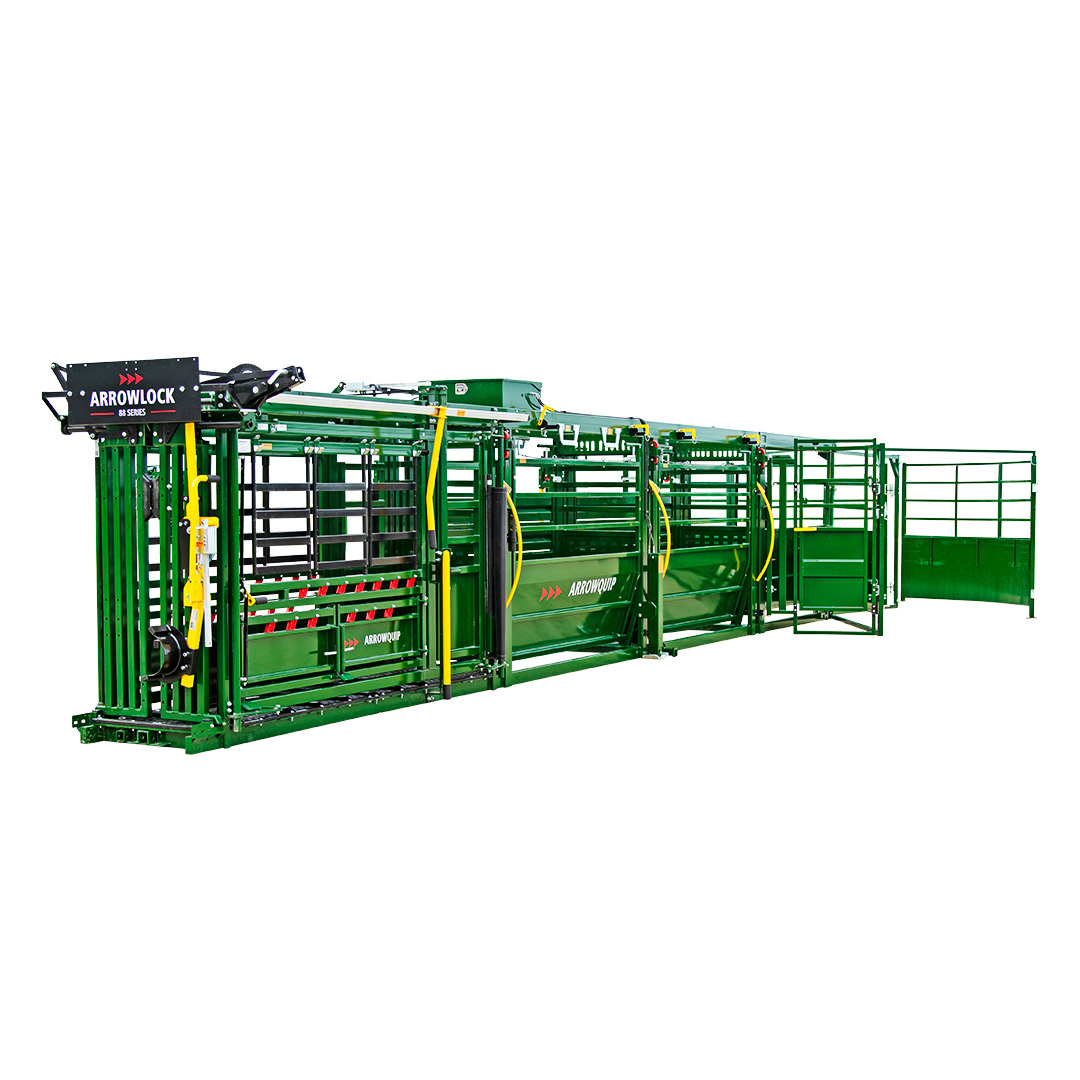

  • Portable cattle chute, alley and tub with 18 feet of alley set up for working cattle 18' of alley provides increased capacity to manage more cattle
  • Portable cattle chute, alley and tub with electric jacks engaged Portable handling system with electric jacks
  • Portable cattle chute, alley and tub from the front set up to work cattle Portable cattle handling system with 3E BudFlow cattle tub
  • Looking at the side of the Portable cattle chute, alley and tub set up to work cattle Handling system can go from on the road to work-ready in just five minutes
  • Looking down the alley of the Portable cattle chute, alley and tub from the rear Easy Flow Cattle Alleys narrow so you can work cattle of any size
  • Looking down the alley of the Portable cattle chute, alley and tub from the back New 3E Head Gate lets cattle see light through the head gate
  • 8718 view from tub alley closed head gate closed New longer alley provides space for proper cattle flow
  • Two sections of 8 foot cattle alleys on the Portable cattle chute, alley and tub New 3E components on the alley and tub improve cattle flow
  • Cattle scale platform installed inside the Portable cattle chute, alley and tub Optional scale platform turns Easy Flow Alley section into a weigh crate
  • Red rump fingers on a Arrowquip cattle chute Two rows of rump fingers can be used for cattle of any size
  • Trimming bar New trimming bar keeps cattle in the chute when both doors are open
  • Polly coated slam latches on a Arrowquip cattle chute Slam latches now feature poly coating to minimize noise
  • Quick release thumb latches for the access gates of a Arrowquip cattle chute Quick release thumb latches make it easy to access your livestock
  • The rubber floor inside an Arrowquip cattle chute World-renowned true rubber floor is backed by lifetime warranty
  • Quick release pin for the needle door on an Arrowquip cattle chute Quick release pin allows you to remove the needle door completely
  • Needle gate bar latch Quick release latch on drop-down needle bar
  • Outside look of the cattle scale platform installed inside the Portable cattle chute, alley and tub Scale platform installed in alley section

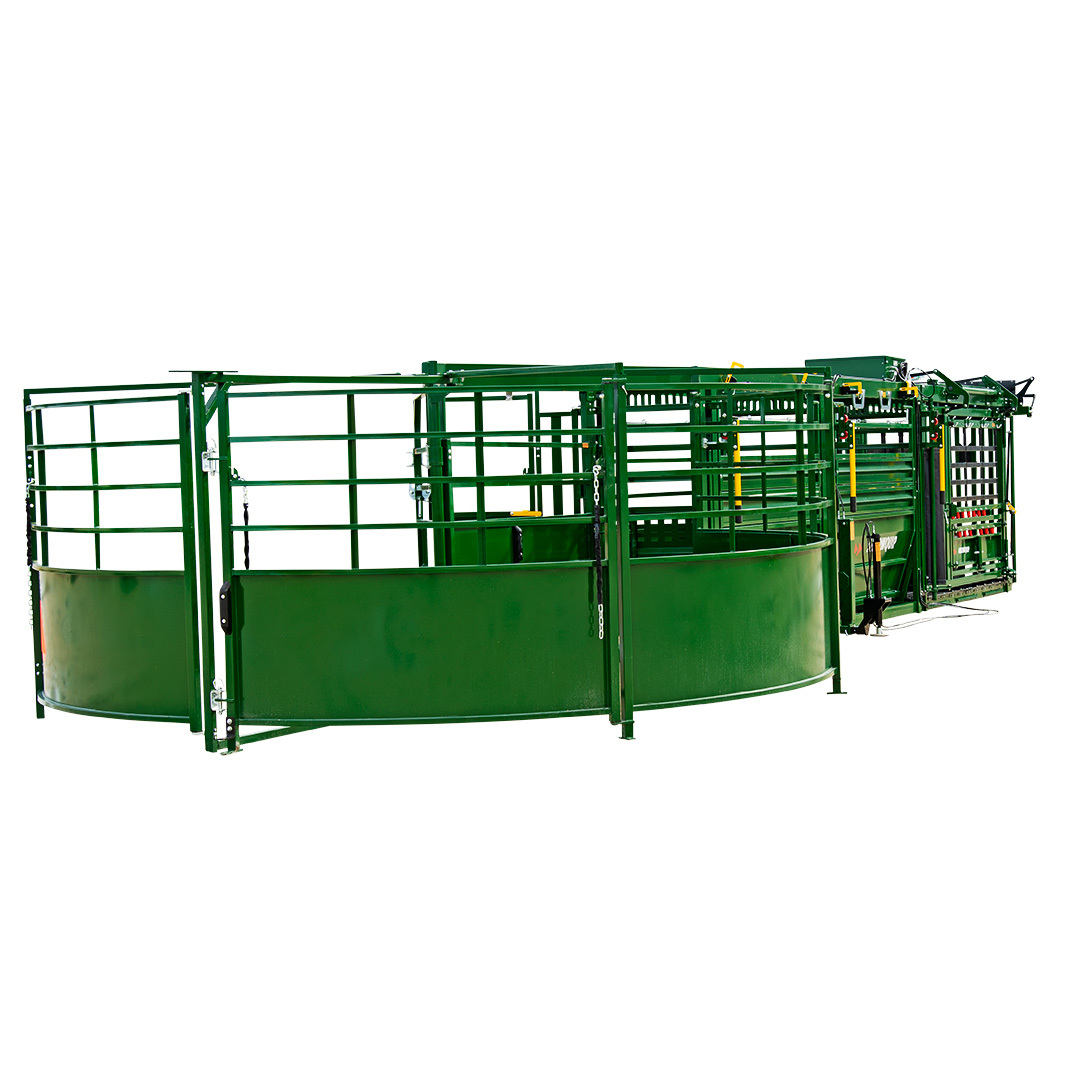

  • The cattle crowding tub folded out on the Portable cattle chute, alley and tub Low panel sheeting on the tub gets cattle to enter the tub more easily

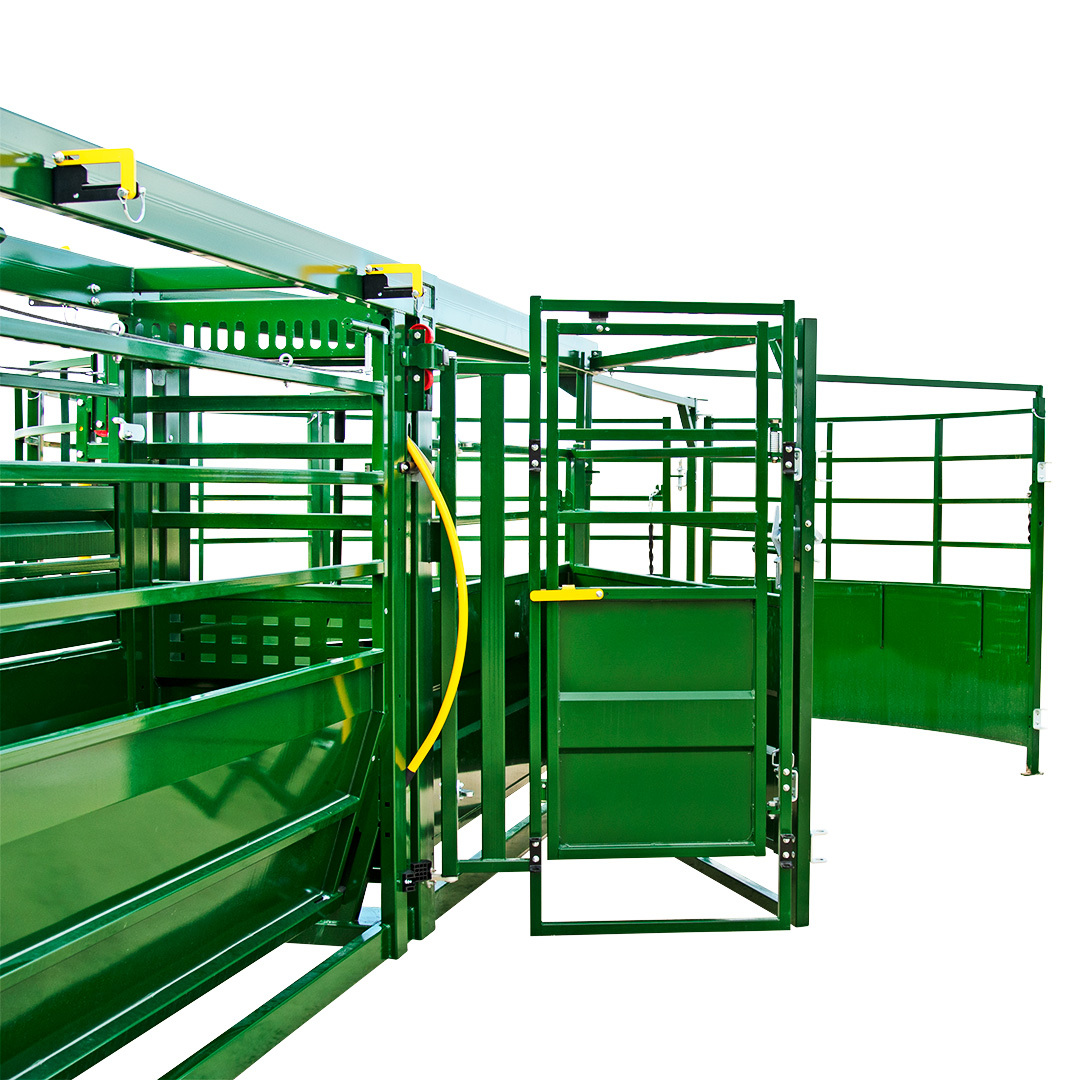

  • The 3E man door open on the cattle crowding tub 3E door provides access to the system, when necessary
  • 700 series portables platform insert Scale platform insert on Easy Flow Alley
  • 700 series head gate Q-Catch 87 Series Head Gate
  • The direct drive cattle head gate system on Arrowquip cattle chutes New direct drive head gate provides improved response
  • Portable cattle chute, alley and tub with 8 feet of alley Portable cattle handling system with 8' alley

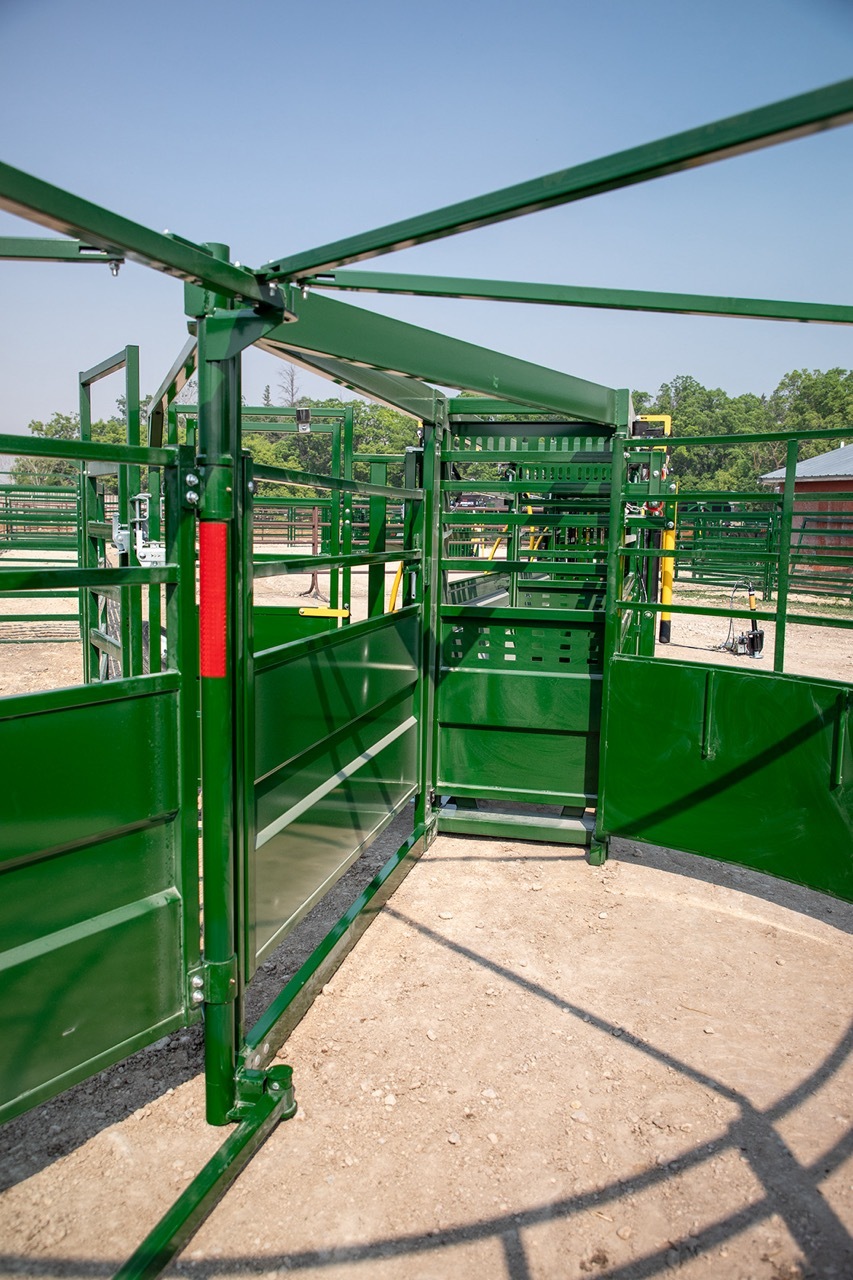

  • Inside the crowding tub of the Portable cattle chute, alley and tub with 8 feet of alley 3E man door provides extra space for cattle to move past each other into the alley
  • Looking down the alley into the chute of the Portable cattle chute, alley and tub with 8 feet of alley Easy flow cattle alley narrowed for calves
  • Portable cattle chute, alley and tub with 8 feet of alley Side view of portable cattle handling unit with 8' alley
  • 8708 collapsed tub transport width Collapsible tub makes the unit easy to tow
  • Above view of the Portable cattle chute, alley and tub with 8 feet of alley Top view of 8' alley portable unit
  • Looking at the side of the Portable cattle chute, alley and tub with 8 feet of alley Portable cattle handling system on wheels
  • Portable cattle chute, alley and tub with the electric jack engaged Electric jacks lifting portable cattle chute, alley, and tub
  • Looking from the back of the Portable cattle chute, alley and tub ready to be towed Compact tub makes the unit shorter and easier to tow
  • Portable cattle chute, alley and tub with 8 feet of alley set up to work cattle Portable cattle handling system ready to work cattle
  • Side look of the Portable cattle chute, alley and tub with 8 feet of alley ready to work cattle Full side view of cattle handling system
  • The cattle crowding tub of the Portable cattle chute, alley and tub Top view of BudFlow Cattle Tub on portable handling unit
  • Bottom joiner bar fully out of the Portable cattle chute, alley and tub Bottom joiner bar extended
  • The 3E man door on the cattle crowding tub 3E man door provides extra space for cattle, and access for handlers
  • Cattle walking out of the Q-Catch 87 Series cattle chute Cow exiting Q-Catch 87 Series chute
  • Side access fully open with the trimming bar in place using a Q-Catch 87 Series cattle chute Trimming bar keeps cattle contained when both doors are open
  • Top access gates being opened on the Q-Catch 87 Series cattle chute Top access door fully open

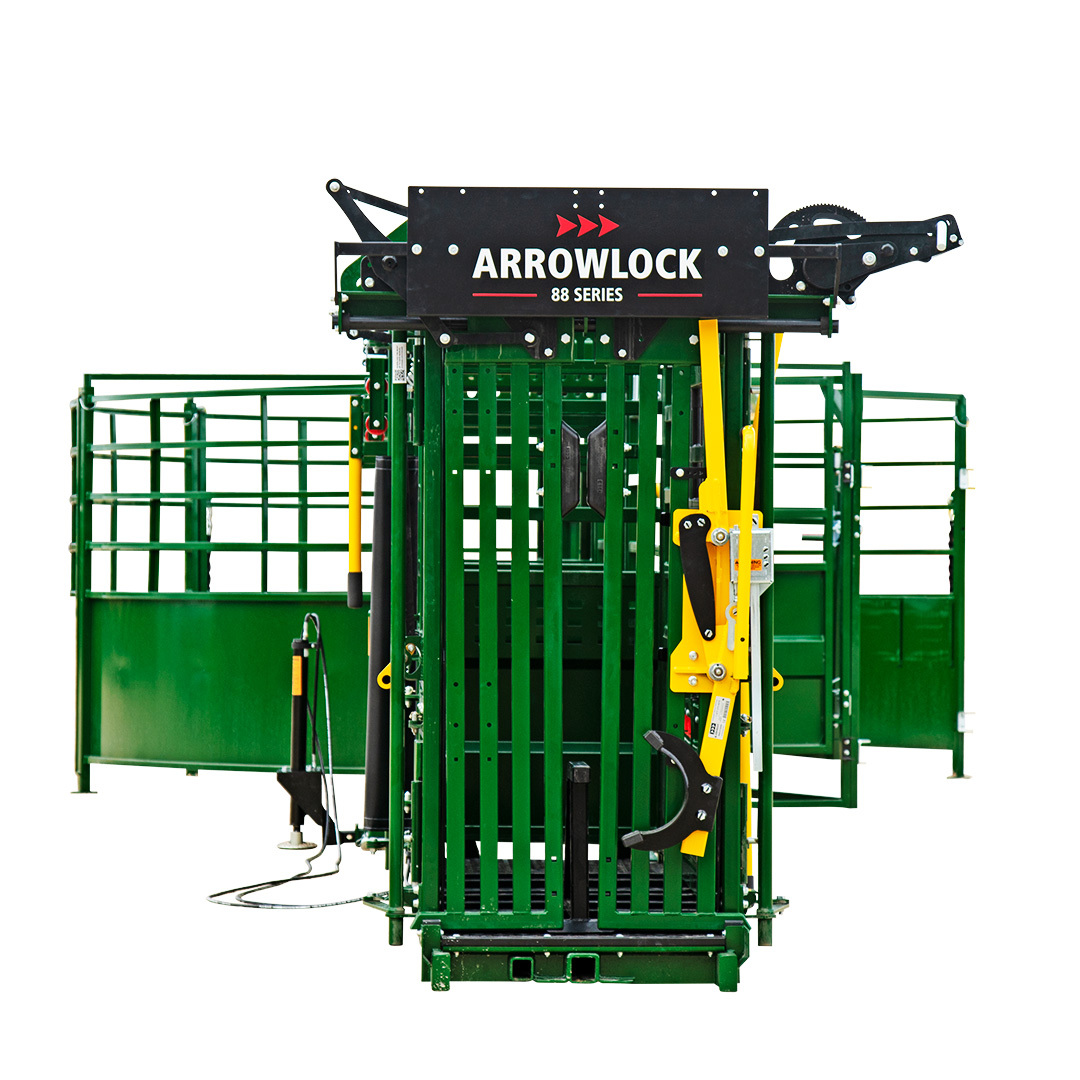

  • Using the head holder on a bull on the Q-Catch 87 Series cattle chute Q-Catch Head Holder can contain even the largest bulls
  • Calf inside the head gate of a Q-Catch 87 Series cattle chute Q-Catch Head Gate can catch even the tiniest calves
  • Rancher letting a cow out of the Portable cattle chute, alley and tub Q-Catch Head Gate opens to a full 30" for cattle to exit the chute
  • Looking at the opposite side of the Portable cattle chute, alley and tub on a ranch Non-working side of the portable cattle handling system
  • Towing the Portable cattle chute, alley and tub with 18 feet of alley 18' alley unit being towed
  • Portable cattle chute, alley and tub with 18 feet of alley set up on a ranch Portable cattle chute, alley and tub set up and ready to work cattle
  • A white truck towing the Portable cattle chute, alley and tub with 18 feet of alley Portable cattle handling unit being towed
  • Looking down a Portable cattle chute, alley and tub from the front on a ranch Head gate open with alley narrowed

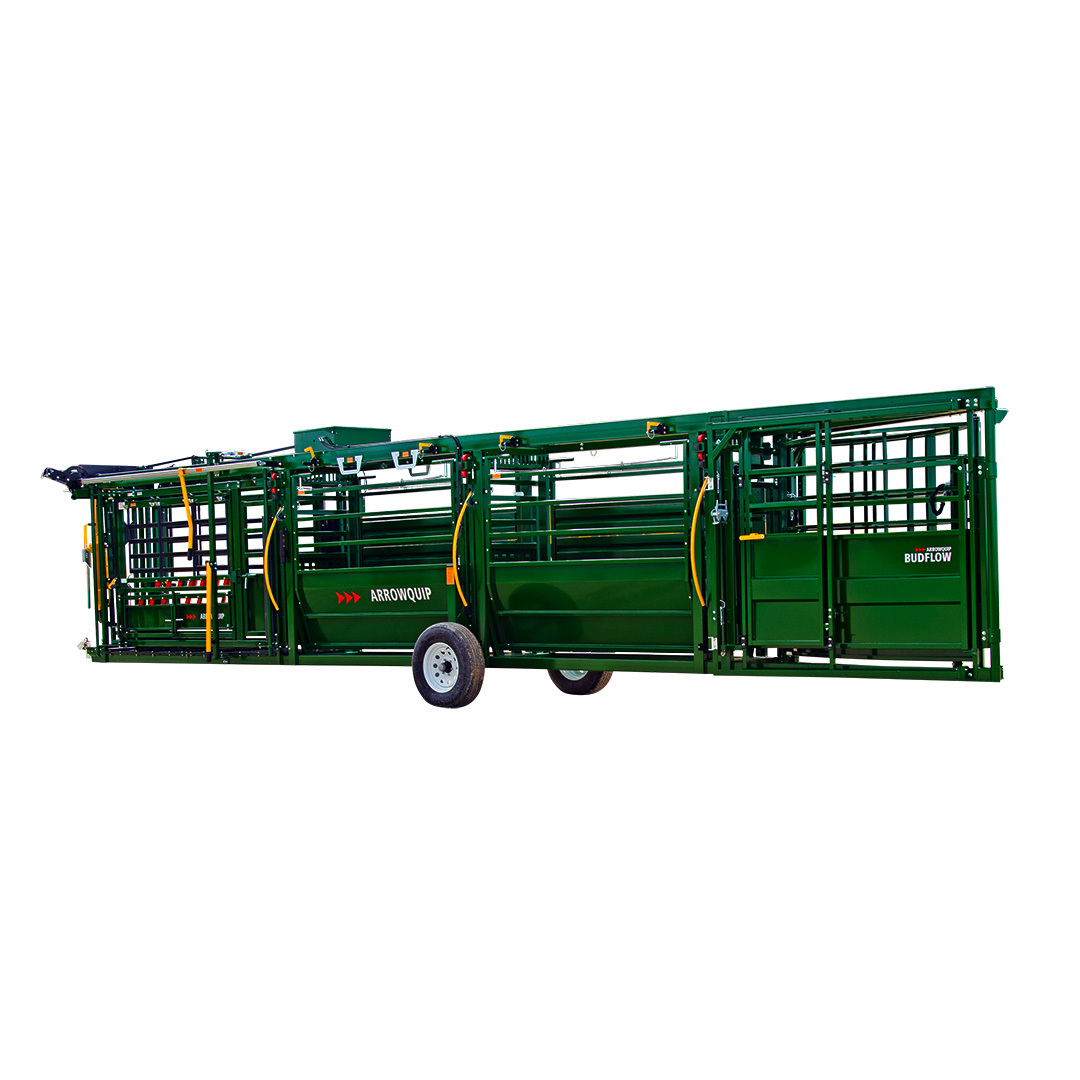

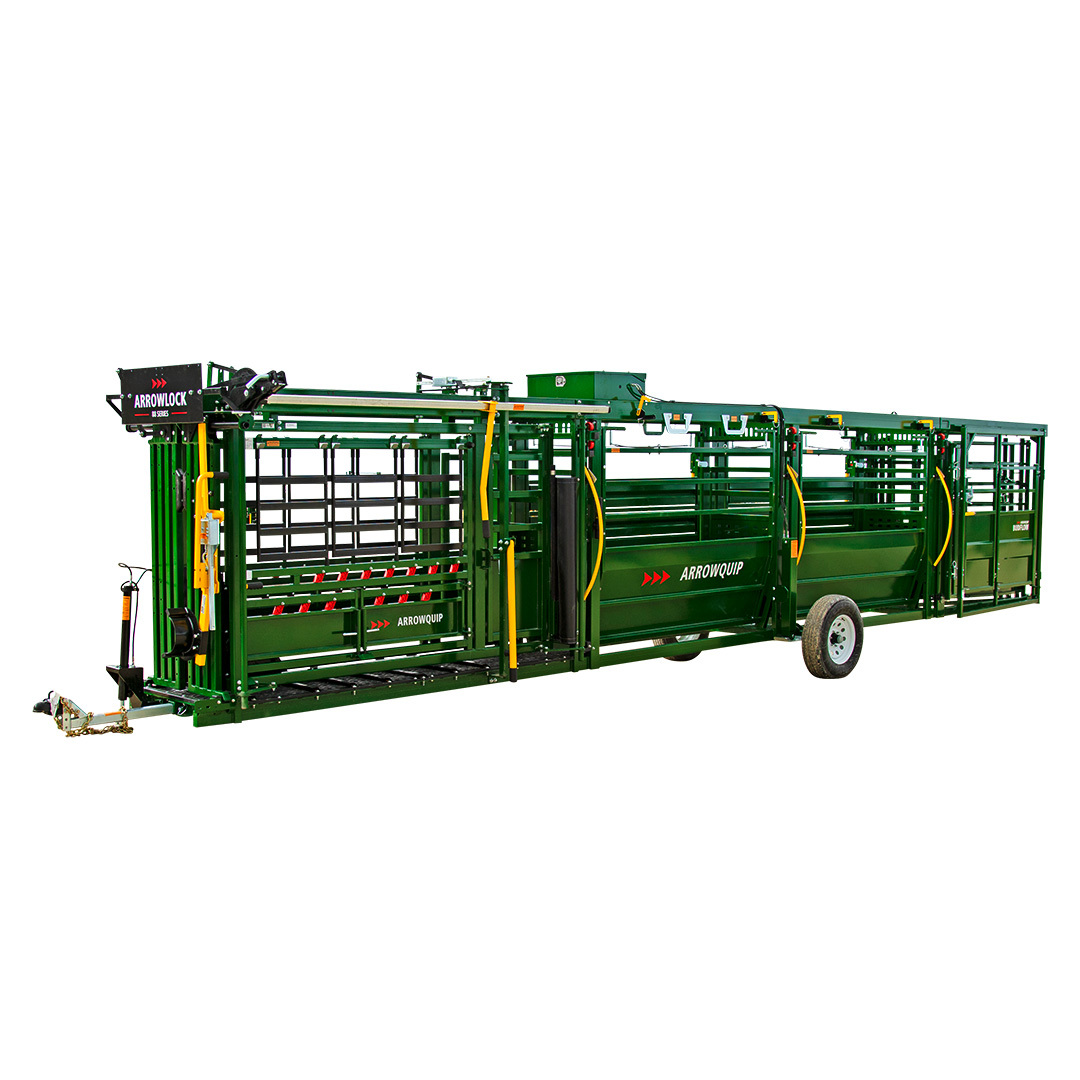

  • Portable cattle chute, alley and tub from the back ready to be towed Portable cattle chute, alley, and tub attached to truck
  • Woman pushing cattle through a Portable cattle chute, alley and tub Low-sheeted panels allow you to work cattle with point of balance handling techniques
  • Cattle inside the Portable cattle chute, alley and tub on a ranch Two sections of easy flow alley provide better flow through the portable handling system
  • A rancher catching a bull in the head gate of a Portable cattle chute, alley and tub The Q-Catch head gate never requires adjustments
  • Calf running out from a cattle chute Working cattle of any size is easy when there are no adjustments needed
  • 8718 backed up The compact tub makes it easy to take this unit between locations
  • Ranching putting back liner on a cow that's inside a cattle chute Access gates feature thumb latches to make your tasks easier and faster
  • A rancher using the squeeze on a cattle chute The squeeze ranges from 29.5" to 7.75", without adjustments
  • Woman rancher letting a cow out of a Arrowquip cattle chute The Q-Catch handle allows you to work the head gate from any point along the chute
  • Woman rancher catching a cow in an Arrowquip cattle chute The movable head gate handle allows you to work the head gate and tail gate simultaneously.
  • Portable cattle chute, alley and tub with 8 feet of alley being transported Portable cattle handling system being transported between locations
  • Portable cattle chute, alley and tub with 8 feet of alley being towed through a field by a truck The compact tub makes it easy to tow this unit on any terrain
  • Working a calf using a Q-Catch 87 Series cattle chute You can catch even the smallest calf in a Q-Catch

Options

  • Yellow cattle head holder fully closed

    Third-Generation Cattle Head Holder [Patented]

    If you need reliable cattle head control, look no further than the 3rd Gen Q-Catch Head Holder. This model is heavier, stronger, and more durable than its predecessor. Featuring a patented single lever push-pull operation, the cattle head holder simplifies any procedure. The head holder clamps around the cattle’s neck to hold the head immobile and allow the rancher safe, up-close access.

    [ More Information ]
  • Sternum Bar - Sheeted

    Sternum Bar

    The sternum bar supports cattle to keep them standing during stressful procedures. It eliminates space at the bottom of the chute, and comes sheeted to eliminate hoof traps. For ease of use, the sternum bar can be installed with only two bolts.

  • Trimming bar for Arrowquip cattle chutes

    Trimming Bar

    The trimming bar is a simple and effective option to keep cattle contained when both side doors are in use. It can be adjusted to accommodate cattle of any size, and is easily installed or removed from the chute with just 4 bolts.

  • Cattle Weigh Platform | Main Image | Arrowquip Cattle Equipment

    Scale Platform

    The Scale Platform has been specially designed for the 8’ Adjustable Easy Flow Alley section of the portable cattle chute, alley and tub. To make installation easy, the side panels can be lifted and held in place with the slam latches, allowing the operator to slide the Scale Platform underneath. These heavy-duty, 1/4" aluminum plates feature raised sides ensure cattle will not slip off, and allow you to quickly and effectively weigh your cattle.

  • Cattle Scale Equipment | Arrowquip Cattle Equipment

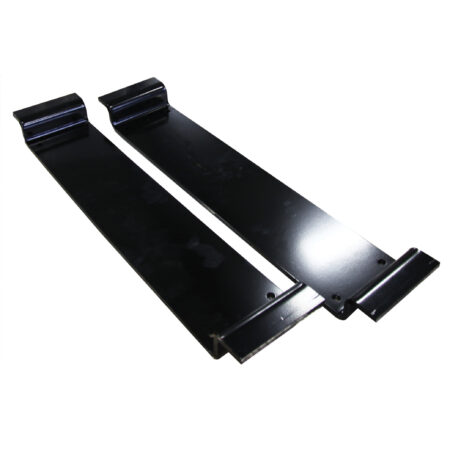

    Scale Mount Plates

    Scale Mount Plates designed to support 23" alleyway load bars when using the Arrowquip Scale Platform. Designed to work with Gallagher and Tru-Test load bars.

  • Portable manuals jacks

    Manual Jacks

    All Arrowquip portable cattle chutes and handling systems are available with the option of manual jacks if preferred.

Find my nearest dealer

Contact Arrowquip

Thank you for your interest in Arrowquip! Fill out the short form below and someone from our team will contact you within one business day. In the meantime, you can also check out our FAQ section.

Q-Catch 87 Series Portable Cattle Chute, Alley and Tub Specifications

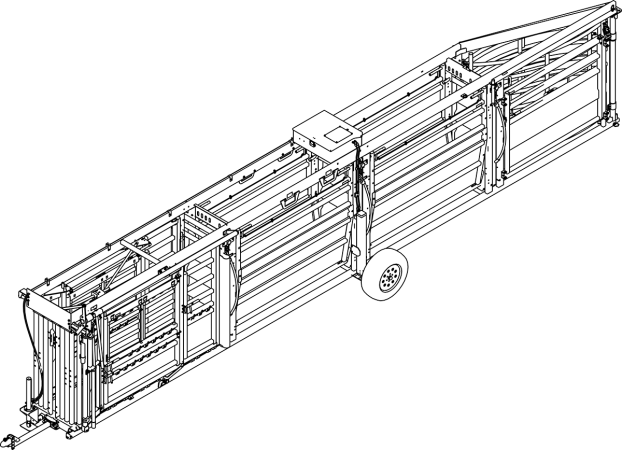

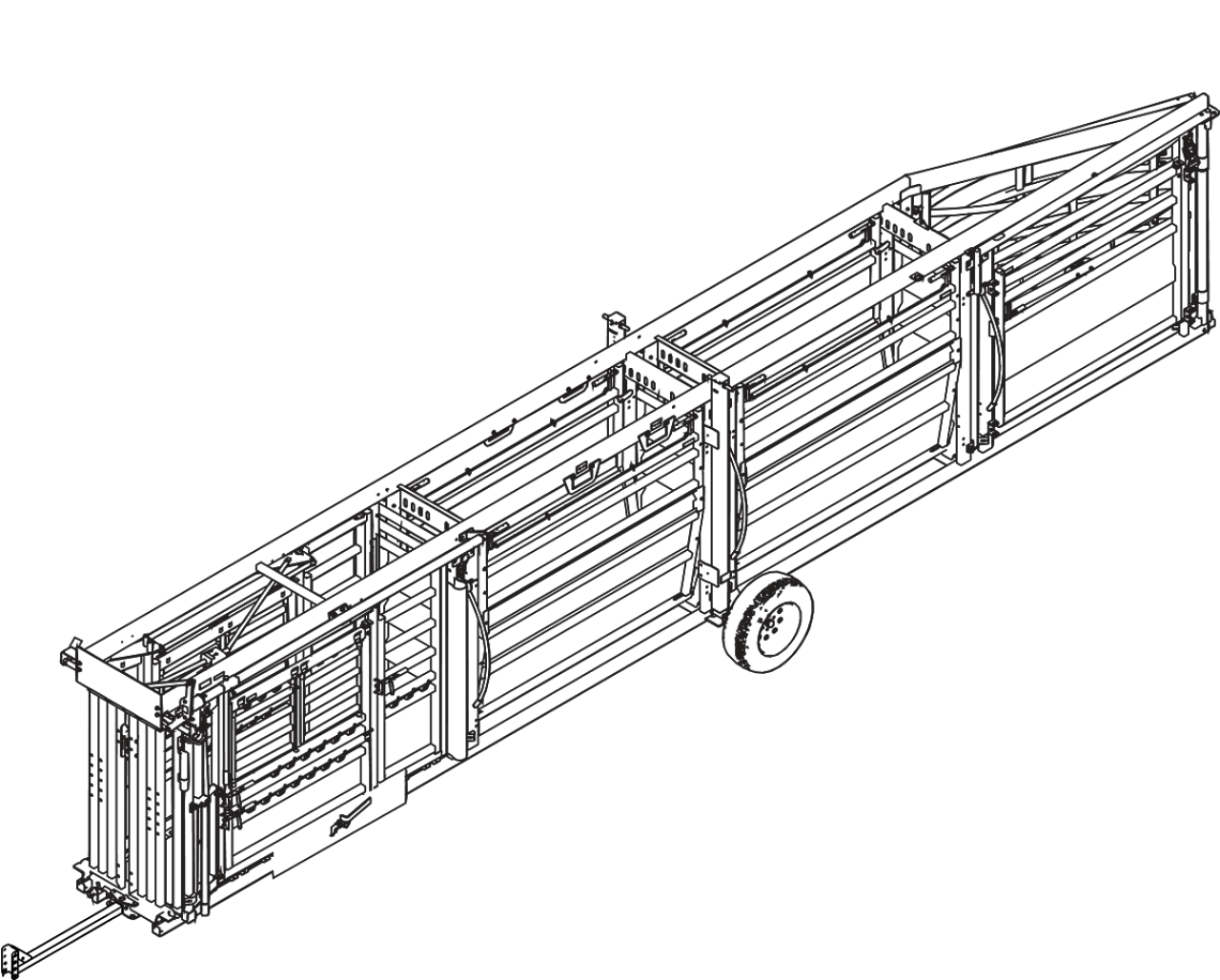

CAD Drawing of the portable cattle chute, alley and tub
  • New barred head gate design uses light to draw cattle into the chute
  • Q-Catch head gate operation handle can be situated anywhere along the side of the chute.
  • Curtain-style head gate opens to a full 30” top to bottom for cattle to exit the chute
  • Easy to use push-pull squeeze lever
  • Squeeze ranges from 29.5” fully open to 7.75” fully closed
  • The Q-Catch squeeze locking system features a dual friction lock with infinite adjustments
  • New Direct Drive system provides faster head gate response
  • Poly-coated slam latches eliminate metal clanging
  • Two rows of rump fingers ensure safety no matter the size of the animal
  • Poly-composite rump fingers are engineered to endure high pressure
  • Ambidextrous rolling door that can be operated from either side of the chute and is reversible
  • The rolling door running track is top-mounted, eliminating the issue of build-up
  • Vet door opens in both directions for a full 180° of maneuverability
  • Low-profile latch ensures the vet cage door will not swing to the inside of the chute when slammed shut
  • Swing-out top and bottom access doors can be used individually or together to access the entire animal
  • Side access panels are removable and can be configured in a variety of positions to suit your operation’s needs
  • 12.75” top to bottom needle door access
  • New drop-down needle bar allows for quick injections
  • Rectangular tubing limits cattle bruising
  • Pivot and latch points feature poly bushings for silent operation
  • True virgin rubber flooring dampens sound and provides great traction
  • Rubber floor is backed by a lifetime guarantee
  • Mount brackets enable you to add load bars or secure the chute to conrete
  • Head Gate locking pin adds safety when transporting the cattle chute, or completing maintenance
  • Both sides of the Easy Flow Alley can be adjusted from one side
  • Cradle-shaped Easy Flow Alley section ranges from 29.5” to 18” in width
  • Both side panels drop down fully, allowing the handler to access the animal in case of emergency
  • Safety latches on the Easy Flow Alley side panels add security and control when adjusting, and ensure the sides will not drop accidentally
  • Easy Flow alleys come with removable panels so you can control what cattle see in the alleyway
  • Single piece steel frame has been reinforced with new 2"x6" beams that run the length of the unit
  • The tub folds in on itself so that it is compact for transport
  • Tub measures just 44" wide when panels are folded in

Download my Manual Portables Manual
