Portable Cattle Alley & Tub

Portable Adjustable Cattle Alley and Cattle Tub | Arrowquip Cattle Equipment

Portable Adjustable Cattle Alley & Tub

4 models available:
Electric Jacks & 3E BudFlow®| Electric Jack & Crowding Tub| Manual Jack & 3E BudFlow®| Manual Jack & Crowding Tub

View model details below

Product Code: PTA

* Rolling Door At Front Of The Product Optional

The new Portable 16’ Alley & Tub has been redesigned for maximum safety and ease of towing. This is a truly portable system, enhanced by a collapsible cattle tub and structural improvements to the frame of the unit. The new manual jacks lift the unit with a single handle, simplifying the process of transporting your unit greatly. The system has also been enhanced with the new 3E BudFlow® that drastically improves cattle flow into and out of the tub.

Apply for Financing Get Your Portable Alley & Tub Brochure

Choose your Portable Cattle Alley & Tub model

  • Model: Electric Jacks & 3E BudFlow®

    Weight: 4161 lbs.

    Dimensions: 193” Wide x 83” High x 397” Long

    Towing Dimensions: 89” Wide x 95” High x 428” Long

    The new 3E BudFlow® system allows cattle to see more light, which enhances flow through your handling system, and the new Electric Jacks make it easy to lift and lower your unit in less than two minutes.

  • Model: Electric Jack & Crowding Tub

    Weight: 3748 lbs.

    Dimensions: 107” Wide x 83” High x 397” Long

    Towing Dimensions: 78” Wide x 95” High x 428” Long

    The new Electric Jacks make it easy to lift and lower your unit in less than two minutes, and the 180° Crowding Tub provides effective cattle crowding.

  • Model: Manual Jack & 3E BudFlow®

    Weight: 4083 lbs.

    Dimensions: 193” Wide x 83” High x 397” Long

    Towing Dimensions: 78” Wide x 95” High x 428” Long

    The new 3E BudFlow® system allows cattle to see more light, which enhances flow through your handling system, and the redesigned Manual Jack allows you to lift the unit from a single point of operation.

  • Model: Manual Jack & Crowding Tub

    Weight: 3670 lbs.

    Dimensions: 107” Wide x 83” High x 397” Long

    Towing Dimensions: 89” Wide x 95” High x 428” Long

    The redesigned Manual Jack allows you to lift the unit from a single point of operation, and the 180° Crowding Tub provides effective cattle crowding.

Easy Flow Alleys on Portable Tub & Alley | Arrowquip Cattle Equipment
  • New 3E System [PATENT-PENDING]

    The new 3E BudFlow® system allows cattle to see more light, and gives them the impression they are escaping rather than entering an enclosed space. The system features a new panel to the side of the alley, and low 30” sheeting on the first panel cattle see upon entering the tub. The new 3E System greatly improves cattle entry into the tub, and prevents hold-ups as they go to enter the alley.

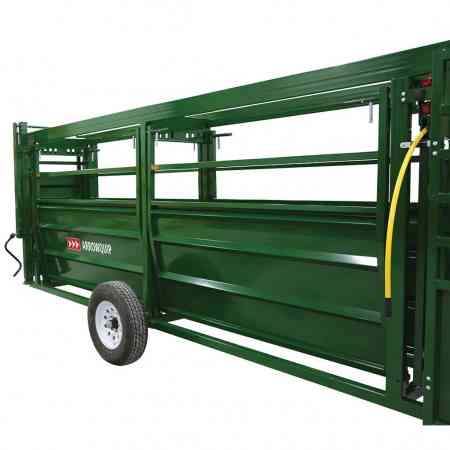

  • Easy Flow Cattle Alleys

    The 8’ Easy Flow Cattle Alley sections are designed to ensure your cattle move smoothly through your system, one at a time. Both sides of the alley can easily be adjusted from one side and range from 29.5” to 18” to handle cattle of any size. Easy Flow Adjustable Alleys narrow in the center, rather than to one side, ensuring there is no awkward transition for cattle when moving from alley to chute.

Request My Product Demo
Close up of Hitch for portable equipment
  • Transportation

    The new portable has been drastically improved with an improved hitch has an added gusset for additional support, the wheels are easily installed or removed with two pins, and the bracket can be adjusted into three different positions to work with different vehicles. Available with a 2.8333” ball hitch or pin hitch, to add additional flexibility to your towing setup.

  • Collapsible Tub

    The new Portable Alley & Tub has been designed for easier transportation with a collapsible tub that measures just 64” wide when folded in. The compact tub is secured with a ratchet strap, ensuring it won’t go anywhere while you’re on the road.

Request My Price

Contact Arrowquip

Thank you for your interest in Arrowquip! Fill out the short form below and someone from our team will contact you within one business day. In the meantime, you can also check out our FAQ section.

Portable Cattle Alley & Tub Specifications

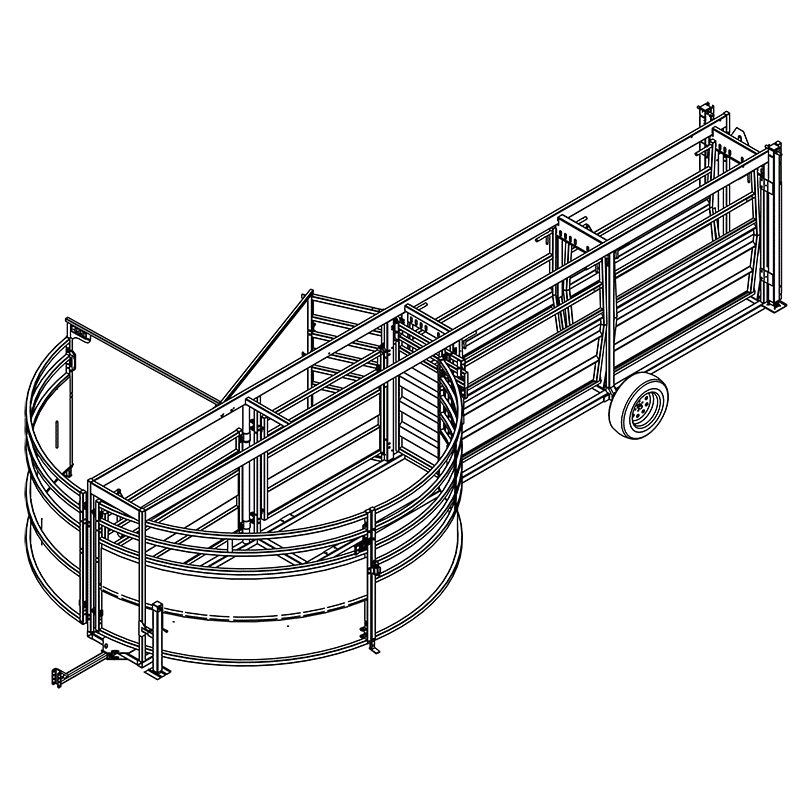

CAD drawing of Portable Cattle Tub & Alley
  • Two cradle-shaped 8’ Adjustable Cattle Alley Sections range from 29.5” to 18” in width
  • Both sides of the Easy Flow Alley can be adjusted from one side
  • Easy Flow Adjustable Alleys ensure there is no awkward transition for cattle when moving from alley to chute
  • Both side panels drop down fully, allowing the handler to access the animal in case of emergency
  • Safety latches on the Easy Flow Alley side panels add security and control when adjusting, and ensure the sides will not drop accidentally
  • The tub folds in on itself so that it is compact for transport
  • Measures just 64” wide when panels are folded in
  • Single piece steel frame has been reinforced with new 2x6 beams that run the length of the unit
  • Choose your model with four different options
