Q-Power 107 Series Portable Hydraulic Chute for Cattle, Alley & Tub
Complete portable hydraulic cattle handling system designed for ease of use
Product Code: 10718
Product Features | Product Specifications
4 models available:
3E BudFlow® [18' Alley]| Crowding Tub [18' Alley]| 3E BudFlow® [8' Alley]| Crowding Tub [8' Alley]
* Head Holder Optional
Power. Portability. Productivity.
Arrowquip's NEW Q-Power 107 Series Portable Chute for Cattle, Alley & Tub is up to any task you throw at it. Rapid response hydraulics are mounted on the improved pivoting control arm that gives you the freedom to operate your chute from any point on either side. For a truly silent and incredibly powerful cattle handling experience, check out the Stealth Power Pack Upgrade for yourself.
The impressive towing setup features a redesigned collapsible tub that is shorter than before, making towing the unit easier than ever, even with the 18' Alley model. Our patent-pending 3E technology is used throughout the unit, and every component of this portable cattle handling system is designed to improve the efficiency of your operation.
Get the equipment your operation needs to do the job right, without compromise, with the Q-Power 107 Series Portable Chute for Cattle, Alley & Tub.
Fill out this form to receive your Q-Power 107 Portable Hydraulic Chute, Alley & Tub brochure:
[ To get a closer look, click on image below ]
-
![Hydraulic portable cattle chute, alley and tub with 8 ft alley being towed through grass field]()
-
![A rancher working cattle through Q-Catch 107 Series hydraulic portable cattle chute, alley and tub]()
-
![A black calf walking side of a Q-Power 107 Series hydraulic chute for cattle]()
-
![Cattle rancher treating large cow using the swing-out access doors on Q-Power 107 Series]()
-
![Rancher catching a bull inside a hydraulic cattle chute]()
-
![A rancher ear tagging a calf using the Q-Power 107 Series hydraulic cattle chute and Q-Catch Head Holder]()
-
![Hydraulic portable cattle chute, alley and tub ready for transport]()
-
![Full side view of hydraulic portable chute for cattle, alley and tub with 18 feet of alley]()
-
![Portable hydraulic chute for cattle, alley and tub with 8 feet of alley prepared for towing]()
-
![Portable hydraulic cattle chute, alley and tub prepared to work livestock]()
-
![Offside view of portable hydraulic cattle chute, alley, and tub prepared to work livestock]()
-
![Collapsible cattle crowding tub prepared for handling livestock]()
We absolutely love the Arrowquip system. Mommas are calm in it, safe, and all family members helping at ages ranging from 6-66 are safe and happy! Fastest safest most enjoyable cattle working we've ever experienced. So glad we did the research and decided to invest in Arrowquip system.
- Chica-Bar Ranch, Rancher -
Product Features
![Portable hydraulic chute for cattle, alley and tub with 8 feet of alley prepared for towing]()

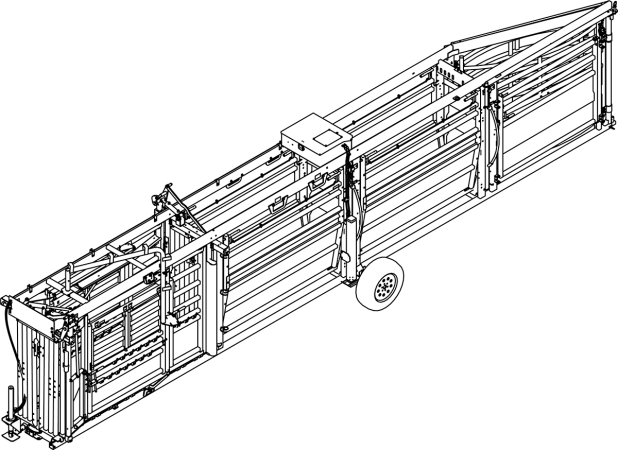

Engineered For Transport
One of the key features of the new portable handling system is the towing. The frame has been enhanced for structural integrity, and now has 2" x 6" beams on the top, and 3" x 3" beams on the bottom. The entire unit folds up into a compact and secure package for travel, ensuring your equipment will get to your destination safely, and the NEW fully Hydraulic Jack system ensures setup when you get to your location only takes a matter of minutes.
![Drop-down bar from needle door.]()
Even More Compact Collapsible Tub
The completely redesigned collapsible cattle tub is one of the most brilliant points of engineering our team has come up with to date! This truly compact tub is folded in a way that shortens the unit by up to 5' 8" when towing, making the new 18' alley portable unit the same length as the Q-Catch 86 Series Portable Cattle Chute, 8' Alley & Tub model was!
![Easy Flow adjustable cattle alley with two blinders on one side]()
NEW 18' Easy Flow Alley
Make your portable cattle chute, alley and tub into a fully portable handling unit with the NEW 18' Alley model. The longer alley provides enough space for you to move all cattle out of the tub and into the alley, preventing the need for stop-and-go handling which can be a challenge with portable cattle equipment.
Each Easy Flow Alley section includes two removable panels that can be moved into multiple positions to control what cattle see, in accordance with our patent-pending 3E technology. This helps to guide cattle in the right direction using light and point of balance handling techniques.
Also available in an 8' alley model.
![Side profile of Q-Power 107 Series hydraulic cattle chute]()
Q-Power 107 Series Cattle Chute
The NEW Q-Power 107 Series hydraulic chute is at the head of this powerful system. The fast-touch hydraulic controls provide superior cattle control, while the 3E components draw cattle through the system using light. This portable hydraulic chute for cattle enables handlers to complete their tasks in record time, leaving more time for the things that truly matter.
3E BudFlow® vs Crowding
The new 3E BudFlow® system is designed to enhance cattle flow through your system using light. Cattle are drawn to spaces they believe they can escape, and the 3E BudFlow tub is works with this natural cattle behaviour. Cattle enter through the BudFlow gate and see light through the low sheeted panels, then turn back to where they came from once they reach the crowd gate at the back. Once the BudFlow gate is closed, cattle believe the alley was their original entrance point, and will move into the alley seamlessly.
The 180° Crowding Tub provides effective cattle movement from the tub into the alley. The panels feature flat sheeting and square bars to minimize bruising, and the sweep gate features a lock out to keep handlers safe when crowding cattle into the alley.
Hydraulic Jacks
The Q-Power 107 Series portable hydraulic cattle chute, alley, and tub is now available with hydraulic jacks. Our Innovations Team has worked diligently to introduce these jacks based on market feedback from consumers looking for an easier to use jack option.
The jacking system now features a 165 AMP Power Unit, 12V battery with 200 AMP breaker to protect the power unit, and military grade 12W Solar Panel that keeps the battery in optimum condition with constant pulse technology. Both the main jack and front hitch jack are powered by the hydraulic jacks, and the selector valve allows the operator to control which jack is being raised or lowered. The unit is easily charged with the terminals on the side of the power unit, and includes a custom designed hydraulic manifold for accurate flow division and load hold.
SPECS:
- Lift and lower the unit easily with a fully 165 AMP hydraulic jacking system
- Main jack and front hitch jack are both hydraulically powered for faster setup and tear-down
- 12-watt military grade solar panel uses pulse technology to keep the battery in optimum condition
- Powered by a 12V Battery with 200-amp breaker to protect the motor
- Terminals located on the outside of the box for easy charging and jumping

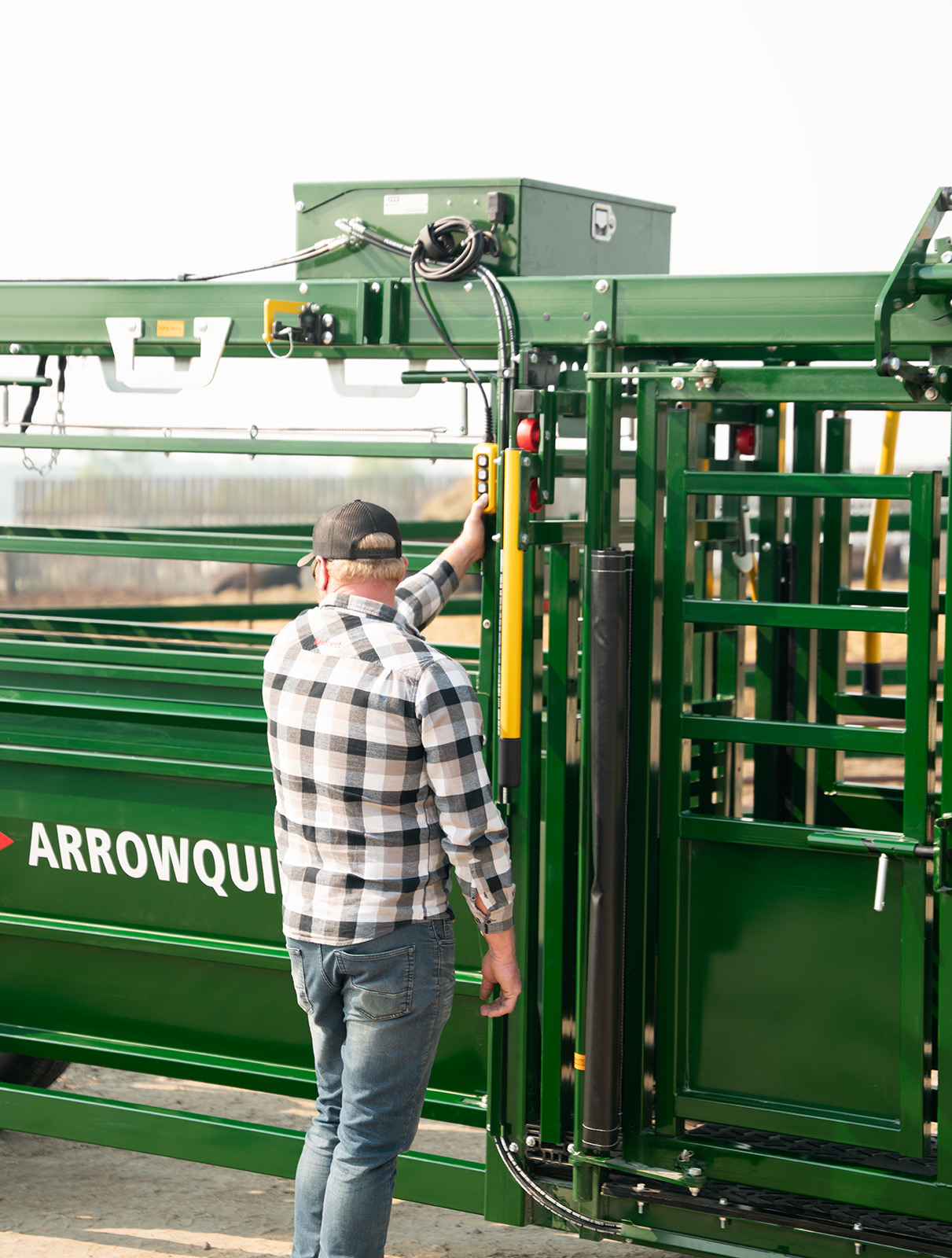

- Control pendant manages both jacks from a single point with a selector valve to switch between jacks
- Control pendant is magnetic and can be attached to the chute easily
- Jacks are contained in a sheet metal jack box which is powder-coated for longevity and durability
- Fully enclosed jack box features a hinged lid, latch, and optional lock for security purposes
See what Others Have to Say
Want more information?
Product Specifications
- Hydraulics are controlled from the pivoting swing arm: 3E Head Gate, 3E Tail Gate, Squeeze, Head Sweep (Optional)
- Hydraulic Squeeze ranges from 29.5" fully open to 7.75" fully closed
- Improved wide-range pivoting swing arm has a larger range and allows you to operate the hydraulic controls anywhere along either side of the chute
- New head gate design uses light to draw cattle into the chute
- Curtain-style head gate opens to a full 30" top to bottom for cattle to exit the chute
- Poly-coated slam latches eliminate metal clanging
- Two rows of rump fingers ensure safety no matter the size of the animal
- Poly-composite rump fingers are engineered to endure high pressure
- Vet door opens in both directions for a full 180° of maneuverability
- Low-profile latch ensures the vet cage door will not swing to the inside of the chute when slammed shut
- Swing-out top and bottom access doors can be used individually or together to access the entire animal
- Side access panels are removable and can be configured in a variety of positions to suit your operation's needs
- 12.75" top to bottom needle door access
- New drop-down needle bar allows for quick injections
- Rectangular tubing limits cattle bruising
- Pivot and latch points feature poly bushings for silent operation
- True virgin rubber flooring dampens sound and provides great traction
- Rubber floor is backed by a lifetime guarantee
- Transport-ready with the new wheel kit add-on
- Head Gate locking pin adds safety when transporting the cattle chute, or completing maintenance
- Both sides of the Easy Flow Alley can be adjusted from one side
- Cradle-shaped Easy Flow Alley section ranges from 29.5" to 18" in width
- Both side panels drop down fully, allowing the handler to access the animal in case of emergency
- Safety latches on the Easy Flow Alley side panels add security and control when adjusting, and ensure the sides will not drop accidentally
- Easy Flow alleys come with removable panels so you can control what cattle see in the alleyway
- Single piece steel frame has been reinforced with new 2"x6" beams that run the length of the unit
- The tub folds in on itself so that it is compact for transport
- Tub measures just 44" wide when panels are folded in
Available Models
Model: 3E BudFlow® [18' Alley]
Weight: 6151-6217 lbs.
Dimensions: 180" Wide x 100" High x 524" Long (When set up.)
Towing Dimensions: 70" Wide x 113" High x 465" Long (With wheels and hitch.)
Model: Crowding Tub [18' Alley]
Weight: 5790-5856 lbs.
Dimensions: 140" Wide x 100" High x 524" Long (When set up.)
Towing Dimensions: 70" Wide x 113" High x 465" Long (With wheels and hitch.)
Model: 3E BudFlow® [8' Alley]
Weight: 5197-5263 lbs.
Dimensions: 180" w x 100" h x 420" l (When set up.)
Towing Dimensions: 70" w x 113" h x 361" l (With wheels and hitch.)
Model: Crowding Tub [8' Alley]
Weight: 4835-4901 lbs.
Dimensions: 144" w x 100" h x 420" l (When set up.)
Towing Dimensions: 70" w x 113" h x 361" l (With wheels and hitch.)
Available Add-Ons / Options
![Hydraulic head sweep installed on greyed out Q-Power 107 Series hydraulic cattle chute]()
Hydraulic Head Sweep
This simple, gentle, and effective option can be connected to the hydraulics on your squeeze chute to hold the animal's head in place with ease.
![3rd Generation Q-Catch Cattle Head Holder in closed position]()
Third-Generation Cattle Head Holder [Patented]
For reliable cattle control, the Third Generation Q-Catch Cattle Head Holder is the tool you need. Featuring a new heavy-duty frame, the 3rd Gen is stronger and more durable than ever before. The patented single lever push-pull operation makes it easy to use, as there are no locks to release. For procedures that require up-close access to cattle's head, the head holder is an essential addition to any operation.
[ More Information on the Third-Generation Cattle Head Holder [Patented] ]![Sheeted sternum bar for cattle chutes]()
Sternum Bar
If your cattle are prone to high-stress, or you are often performing stressful procedures, a sternum bar is an easy and effective way to keep your livestock upright in the chute. The Sternum Bar supports the sternum to prevent cattle from laying down. For ease of use, it can be installed and removed from the chute quickly with just two bolts.
[ More Information on the Sternum Bar ]![Cattle Trimming Bar components for Arrowquip cattle chutes]()
Trimming Bar
If you need to open both side doors for special procedures such as hoof trimming, adding a trimming bar will ensure that you and your livestock stay safe. It can be adjusted to accommodate cattle of varying sizes, and is easily installed with just four bolts.
![Heavy-duty aluminum cattle weigh platform]()
Scale Platform
The Scale Platform is designed for the 8' Easy Flow Alley Section of your portable handling system. The side panels can be lifted and held in place with the slam latches, enabling the platform to be slid into place. The heavy-duty 1/4" aluminum plates feature raised sides to ensure cattle will not slip off, and enable you to quickly weigh your cattle as they move through the alley.
![Cattle Scale Mount Plates for Tru-Test and Gallagher load bars]()
Scale Mount Plates
Scale Mount Plates designed to support 23" alleyway load bars when using the Arrowquip Scale Platform. Designed to work with Gallagher and Tru-Test load bars.
![5HP Hydraulic Cattle Squeeze Chute Electric Power Pack]()
Electric Hydraulic Power Pack
5HP electric motor. Operating pressure of 900PSI, with relief set at 1000PSI. The 10-gallon tank delivers 6.2GPM. Pioneer female ends on the power pack allow the connecting hose on the chute to plug straight in.
![7HP Hydraulic Cattle Squeeze Chute Gas Power Pack]()
Gas Hydraulic Power Pack
7HP gas motor. Operating pressure of 900PSI, with relief set at 1000PSI. The 10-gallon tank delivers 6.2GPM. Pioneer female ends on the power pack allow the connecting hose on the chute to plug straight in.
![Close-up of tractor hook-up for hydraulic cattle chute]()
Tractor Hydraulic Hook-Up
Enables you to power the squeeze chute from the hydraulics on a tractor or other hydraulic equipment.
![Extremely Quiet 7.5 HP Hydraulic Cattle Squeeze Chute Stealth Power Pack]()
NEW Stealth Upgrade Electric Power Pack
The NEW Stealth Upgrade Electric Power Pack is a truly silent power source with a 7.5HP electric motor. Operating pressure of 900PSI, with relief set at 1000PSI. The 10-gallon tank delivers 10.9GPM. Pioneer female ends on the power pack allow the connecting hose on the chute to plug straight in.
![Close-up view of rancher's hand on a manual jack winder for portable cattle chute]()
Manual Jacks
All Arrowquip portable hydraulic chutes for cattle are available with the option of manual jacks if preferred.
