Q-Power 106 Series Portable Hydraulic Squeeze Chute & Alley

View of the Q-Power 106 Series portable hydraulic cattle chute with adjustable cattle alley in a field

Your Hydraulic Cattle Chute on the Go with an Adjustable Cattle Alley

Weight: 3728 lbs.

Dimensions: 80” Wide x 118” High x 236” Long

Product Code: CPPO-QP-868

* Head Holder Optional (QC910)

The Portable Q-Power 106 Series Cattle Chute & Alley duo includes the most versatile hydraulic chute ever designed, the Q-Power 106 series and the 8’ Adjustable Cattle Alley. Every part of the system is thoughtfully designed with a depth of knowledge in cattle behavior and animal science best practices from the curtain-style straight head gate doors to ensure cattle do not choke, to the side access doors which can be used together as a full side exit in the event of an emergency. The Portable Hydraulic Chute & Alley is designed for increased access, ease of use, and to increase your productivity when you have cattle in multiple locations

Currently not available with the rubber floor.

Apply for Financing Download Your Portable Hydraulic Squeeze Chute & Alley Brochure (1.91 MB)

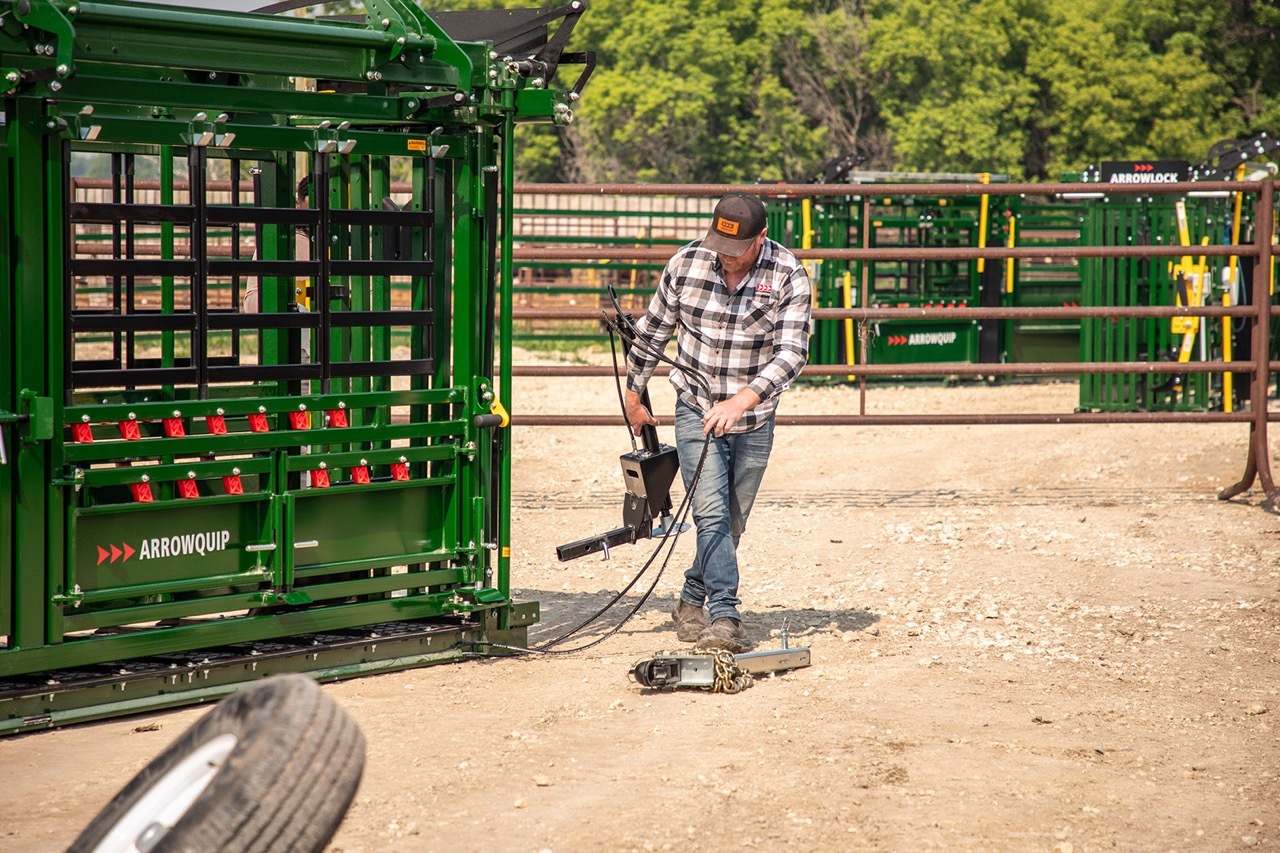

View of the jacks on the Q-Power 106 Series portable hydraulic cattle chute with adjustable cattle alley
  • Q-Power 106 Series Hydraulic Cattle Chute

    The Q-Power 106 Series is the most versatile chute in the Arrowquip lineup and is designed to adhere to proper low-stress livestock handling practices. Offering maximum access, adaptability, and control, the Q-Power 106 brings nothing but the best to the cow-calf operation. More information on the Q-Power 106 Series Squeeze Chute.

  • Easy Set-up

    There is no need to waste valuable time setting up and tearing down equipment, as the high quality manual jacks allow you to prep your system to hit the road quickly This duo can be from road-ready to cattle-ready fast with four simple steps in under five minutes.

Request Your Product Demo
View of the hydraulic controls of the Q-Power 106 Series hydraulic cattle chute
  • Adjustable Alley

    The system features an 8' Adjustable Alley section, allowing you to accommodate animals of any size using the off-side handle. The alley can be adjusted from 30” to 17” easily, and can be fitted with a scale platform if your operation requires. More information on the Adjustable Cattle Alley.

  • Hydraulic Swing Arm

    Control the Head Gate, Tail Gate, Squeeze, and Head Sweep, if applicable, from multiple positions along the side of the chute with the pivoting swing arm. The swing arm is free-moving and does not require a stand, giving you the option to move the arm within a select range of motion.

Request Your Price

Options

  • View of the Cattle Head Holder from the front

    Second-Generation Cattle Head Holder [Patent-Pending] (QC910)

    The head holder clamps around the cattle’s neck to hold the head immobile, allowing the handler safe, up-close access. The head holder never needs adjustments and features single lever push-pull operation, simplifying any procedure necessary.

    [ More information ]
  • View of the hydraulic cattle head sweep on the Q-Power 106  Series Hydraulic Cattle Chute

    Hydraulic Head Sweep (HYD-HDSWP)

    This simple, gentle, and effective option can be connected to the hydraulics on your squeeze chute to hold the animal’s head in place with ease.

  • Cattle Chute - Sternum Bar

    Sternum Bar (STBR)

    The sternum bar keeps cattle from going down in the chute, and is easily installed and removed with two bolts.

    [ More information ]
  • Hydraulic Cattle Squeeze Chute Electric Power Pack | Arrowquip Cattle Equipment

    Electric Hydraulic Power Pack (HYD-EM)

    The 220V 5HP motor provides reliable and consistent performance for your chute.

  • Hydraulic Cattle Squeeze Chute Gas Power Pack | Arrowquip Cattle Equipment

    Gas Hydraulic Power Pack (HYD-GM)

    Equipped with a 5HP Honda gas engine and hydraulics, mounted on a support frame, this power pack allows you to operate your hydraulic squeeze chute from anywhere you need to.

  • Tractor Hydraulic Hook-up

    Tractor Hydraulic Hook-Up (HYD-TH)

    Enables you to power the squeeze chute from the hydraulics on a tractor or other hydraulic equipment.

Find your nearest dealer

Contact Arrowquip

Thank you for your interest in Arrowquip! Fill out the short form below and someone from our team will contact you within one business day. In the meantime, you can also check out our FAQ section.

Q-Power 106 Series Portable Hydraulic Squeeze Chute & Alley Specifications

  • Weight: 3728 lbs.
  • Dimensions: 80” Wide x 118” High x 236” Long
  • Hydraulics are controlled from the pivoting swing arm: Cattle Head Gate, Tail Gate, Squeeze, Head Sweep (Optional)
  • Hydraulic Squeeze ranges from 29.5” fully open to 7.75” fully closed
  • Curtain-style straight head gate doors open to a full 30” top to bottom for cattle to exit
  • Two rows of rump fingers ensure safety no matter the size of the animal
  • Nylon rump fingers are engineered to endure high pressure
  • Vet door opens in both directions for a full 180° of maneuverability
  • Improved, low-profile latch ensures the vet cage door will not swing to the inside of the chute when slammed shut
  • Side gates can be opened from top, bottom, or together to access the entire animal
  • Side access panels are removable and can be configured in a variety of positions to suit your operation’s needs
  • 12.75” needle door access
  • Rectangular tubing limits cattle bruising and injury
  • Pivot and latch points feature poly bushings for silent operation
  • 8’ Adjustable Alley comes standard with the off-side adjustment handle and ranges from 30” to 17” in width
  • Simple, four-step setup
