Q-Catch 86 Series Portable Cattle Chute & Alley

Portable Q-Catch 86 Series Cattle Chute & Cattle Alley | Arrowquip Cattle Equipment

Cattle Squeeze Chute & Adjustable Alley Made To Move


2 models available:
Electric Jacks| Manual Jacks

View model details below

Product Code: 868

* Head Holder Optional

The new Portable Q-Catch 86 Series Cattle Chute & Alley has been redesigned with features to simplify daily life on your ranch. From the new electric jacks and 8’ Easy Flow Adjustable Cattle Alley section, to the rubber floors you’ve been asking for, everything on this system has been designed with cattle flow and ease of use for operators in mind.

This portable duo allows you to do it all, and take your handling system anywhere you need it with ease. This compact system has been redesigned with an improved towing setup to ensure you’re in for the smoothest ride possible, every time.

Apply for Financing Get Your Portable Q-Catch 86 Series Chute & Alley Brochure

Choose your Portable Cattle Chute & Alley model

  • Model: Electric Jacks

    Weight: 3783 lbs.

    Dimensions: 58" Wide x 96" High x 265" Long

    Towing Dimensions: 78" Wide x 107" High x 265" Long

    The new Electric Jacks make it easy to lift and lower your unit in less than two minutes.

  • Model: Manual Jacks

    Weight: 3823 lbs.

    Dimensions: 58" Wide x 96" High x 235" Long

    Towing Dimensions: 89" Wide x 107" High x 265" Long

    The redesigned Manual Jacks allow you to lift and lower the unit effectively, with as little manual work as possible.

Cattle Squeeze Chute Rubber Floor Image | Arrowquip Cattle Equipment
  • Flooring

    The new Chute & Alley features Arrowquip’s renowned rubber floor. The maintenance-free, molded rubber flooring in the Q-Catch 86 Series cattle chute is the quietest flooring system on the market, and provides far greater traction than steel. Supported with 7-gauge metal floor pans with drainage holes from front to back.

  • Structure

    The single piece steel frame on the Portable Cattle Chute & Alley is enhanced with new 2x6 beams that run the length of the unit. These enhance the long-term durability of the equipment, and the structural integrity of the unit for towing purposes.

Request My Product Demo
Portable Electric Jack Control
  • New Electric Jacks [PATENT-PENDING]

    The redesigned jack system lifts the unit from the back of the alley with the push of a button. The electric jacks feature a 24V system, powered by two maintenance-free 12V Arrowquip AGM batteries connected in series. The new electric jack system can lift and lower the unit in under two minutes. A secondary bulldog jack at the front of the chute simplifies the process of hooking the unit up to your towing vehicle.

  • Transportation

    The newly designed hitch has an added gusset for additional support and to eliminate towing problems. To simplify transportation even further, the wheels are easily installed or removed with two pins, and the bracket can be adjusted into three different positions to work with different vehicles. Available with a 2.3125” ball hitch or pin hitch, to add additional flexibility to your towing setup.

Request My Price


  • View of the Cattle Head Holder from the front

    Second-Generation Cattle Head Holder [Patented]

    The head holder allows the handler safe, up-close access by clamping around the cattle’s neck to hold the head immobile. Featuring single lever push-pull operation and never requiring adjustments, the head holder simplifies any procedure necessary.

    [ More Information ]
  • Cattle Chute - Sternum Bar

    Sternum Bar

    The sternum bar is intended to keep cattle from going down in the chute, and is easily installed and removed from your squeeze chute with just two bolts.

    [ More Information ]
  • Cattle Weigh Platform | Main Image | Arrowquip Cattle Equipment

    Scale Platform

    The Scale Platform is custom designed for the 8’ Adjustable Easy Flow Alley section of the portable handling system. For easy installation, the side panels can be lifted and held in place with the slam latches, allowing the operator to slide the Scale Platform underneath. These heavy-duty, 1/4" aluminum plates feature raised sides ensure cattle will not slip off, and allow you to quickly and effectively weigh your cattle as they move through the handling system.

  • Cattle Scale Mounts | Arrowquip Cattle Equipment

    Scale Mount Plates

    Scale Mount Plates designed to support 23" alleyway load bars when using the Arrowquip Scale Platform. Designed to work with Gallagher and Tru-Test load bars.

Find my nearest dealer

Contact Arrowquip

Thank you for your interest in Arrowquip! Fill out the short form below and someone from our team will contact you within one business day. In the meantime, you can also check out our FAQ section.

Q-Catch 86 Series Portable Cattle Chute & Alley Specifications

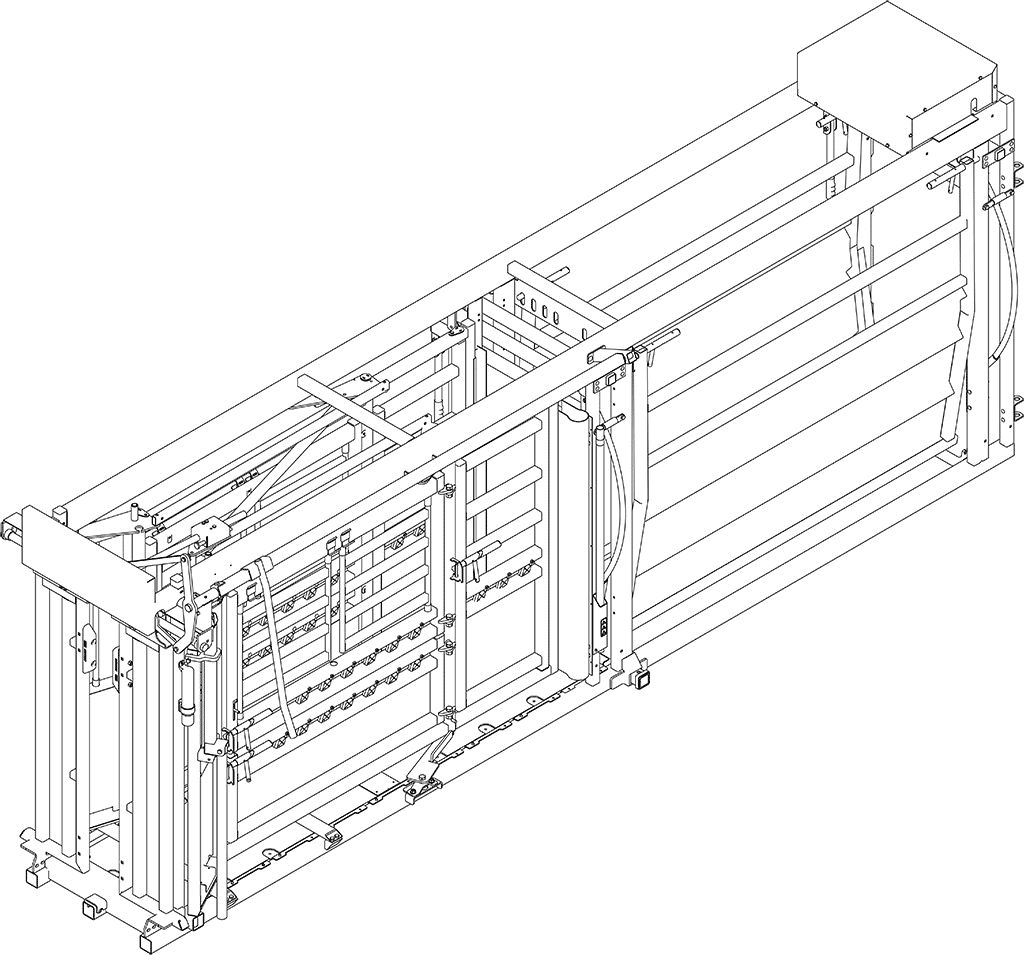

Portable Chute & Alley CAD Drawing
  • Head Gate operation handle is user-friendly and can be situated anywhere along the side of the chute
  • Curtain-style head gate opens to a full 30” top to bottom for cattle to exit the chute
  • The Patented Q-Catch head gate locking system features a friction lock with infinite adjustments, and independent locking doors
  • All locking mechanisms are backed by a Lifetime Guarantee
  • Easy to use push-pull squeeze lever
  • Squeeze ranges from 29.5” fully open to 7.75” fully closed
  • The Q-Catch squeeze locking system features a dual friction lock with infinite adjustments
  • Two rows of rump fingers ensure safety no matter the size of the animal
  • Nylon rump fingers are engineered to endure high pressure
  • Two rolling doors that can be easily operated from either side of the unit
  • Vet doors open in both directions for a full 180° of maneuverability
  • Improved, low-profile latch ensures the vet cage door will not swing to the inside of the chute when slammed shut
  • Swing-out top and bottom access doors can be used individually or together to access the entire animal
  • Side access panels are removable and can be configured in a variety of positions to suit your operation’s needs
  • 12.75” needle door access
  • Rectangular tubing limits cattle bruising and injury
  • Both sides of the Easy Flow Alley can be adjusted from one side
  • Cradle-shaped 8’ Adjustable Cattle Alley Section ranges from 29.5” to 18” in width
  • Both side panels drop down fully, allowing the handler to access the animal in case of emergency
  • Safety latches on the Easy Flow Alley side panels add security and control when adjusting, and ensure the sides will not drop accidentally

Download my Portable Q-Catch 86 Series Chute & Alley Manual

Q-Catch 86 Series Portable Cattle Chute & Alley Reviews

Add your Review

*This section is for Product Reviews only. For Product Pricing and Additional Information, please fill out this form or call us at +1-866-383-7827.


  • Josh Stone

    Able to attached my cattle chute to any one of my two stationary systems.  Was happy to find a portable option that didn’t include a crowding tub.  Great product.
